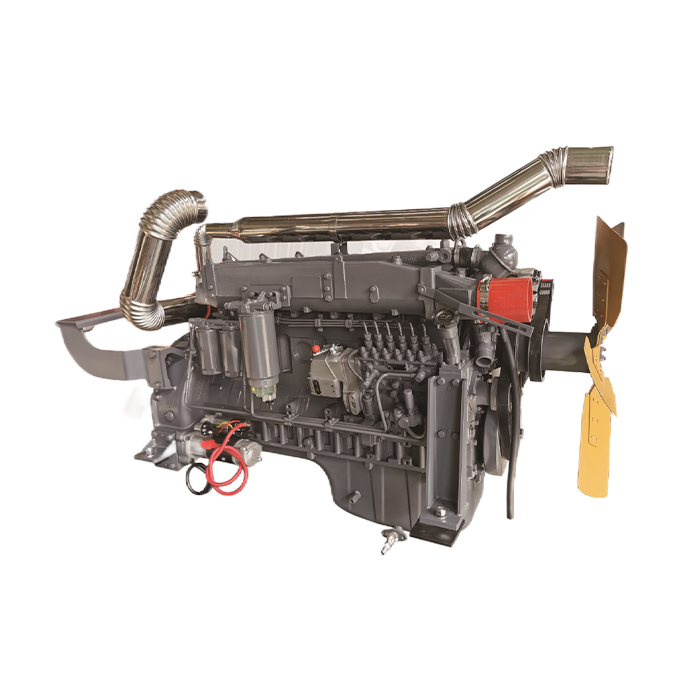

WJ 6-Cylinder In-Line High Speed Diesel Engine (22~363kW)
WJ 6-Cylinder In-Line High Speed Diesel Engine offers strong power, excellent starting ability, compact structure, convenient maintenance, and easy operation. Power range: 22~363kW, ideal for fire protection, high-pressure cleaning, irrigation, and more.
● Industrial Diesel Engine
● Power: 22~363kW
● rpm: 1500
Features
● With strong power, strong starting ability, compact structure, convenient maintenance and easy operation.
● Power range: 22~363kW, widely used in fire protection, high-pressure cleaning, irrigation and other fields.
Parameters
| Model |
Bore×Stroke (mm) |
Displacement (L) |
Rated speed (r/min) |
Rated Power (kW) |
Standby Power (kW) |
Fuel Consumption (g/kW·h) |
Oil Consumption (g/kW·h) |
Exhaust Temperature (℃) |
| WJ25D2 | 90×100 | 2.54 | 1500 | 22 | 24 | ≤253 | ≤1.63 | ≤550 |
| WJ36D3 | 100×115 | 3.61 | 1500 | 33 | 36 | ≤258.4 | ≤2.04 | ≤470 |
| WJ42D4 | 105×120 | 4.15 | 1500 | 38 | 42 | ≤251.6 | ≤2.04 | ≤600 |
| WJ38TD5 | 102×115 | 3.76 | 1500 | 44 | 48 | ≤258.4 | ≤2.04 | ≤600 |
| WJ43D6 | 105×125 | 4.33 | 1500 | 56 | 61.6 | ≤239 | ≤1.63 | ≤600 |
| WJ45TAD7 | 105×130 | 4.5 | 1500 | 66 | 72.6 | ≤239 | ≤1.63 | ≤600 |
| WJ65TD8 | 105×125 | 6.49 | 1500 | 84 | 92.4 | ≤224 | ≤1.63 | ≤600 |
| WJ68TAD11 | 105×130 | 6.75 | 1500 | 110 | 121 | ≤228 | ≤1.63 | ≤600 |
| WJ78TAD17 | 113×130 | 7.82 | 1500 | 170 | 187 | ≤228 | ≤1.82 | ≤680 |
| WJ97TAD21 | 126×130 | 9.73 | 1500 | 215 | 236 | ≤218 | ≤0.8 | ≤550 |
| WJ97TAD24 | 126×135 | 10.09 | 1500 | 240 | 264 | ≤218 | ≤0.8 | ≤650 |
| WJ116TAD28 | 126×155 | 11.596 | 1500 | 280 | 308 | ≤218 | ≤0.8 | ≤650 |
| WJ97TAD33 | 126×130 | 9.726 | 1500 | 330 | 363 | ≤218 | ≤0.8 | ≤650 |
