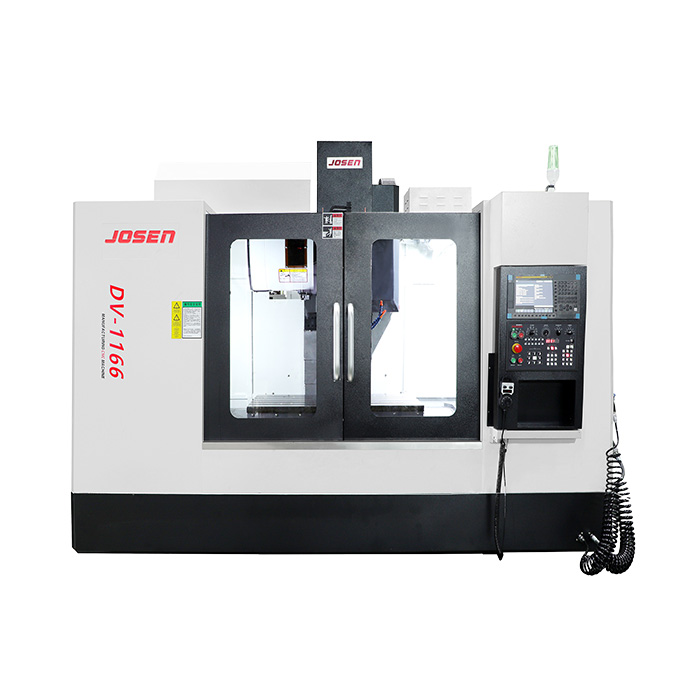

VMC 1166 3 Axis Vertical Machining Center
The machine is suitable for the production of communication electronics, automobile and motorcycle parts and automated parts processing.
https://www.josencnc.com/VMC-1166-CNC-Vertical-Machining-Center.html
The machine is suitable for the production of communication electronics, automobile and motorcycle parts and automated parts processing. Its bed adopts a high rigidity structure and a large number of reinforcement bars inside the casting to ensure the rigidity and stability of the whole machine. The front end of the spindle is equipped with a ring-shaped water outlet, which can effectively cool the cutting tool. The base adopts a large span structure with two 45mm roller line rails, which makes the machine have strong load capacity and high rigidity.
1.This model is suitable for communication electronics, automobile and
locomotive parts production, and automated parts processing.
2.Combined with FEM analysis, the main components of the base, column and
saddle all adopt unique high rigidity structure, which makes the internal force
structure of the whole machine more optimized and ensures the rigidity and
thermal variation stability of the whole machine.
3.Three axes linear precision rolling guide design, fast acceleration and
deceleration response, effectively improve the machining efficiency and
machining accuracy of the machine, even under heavy load is also excellent.
4.The front end of the spindle is equipped with a circular water jet to allow
effective cooling of the cutting tool, while the internal air curtain with
negative pressure extends the service life and ensures reliable use of the
spindle for long time and high-speed operation.
5.The stable base and column with lightweight motion axis components
effectively ensure the stability of the machine during high acceleration and
deceleration movements.
| ITEM | UNIT | DV-1166 | DV-1166B |
| Travel | |||
| X-axis travel | mm | 1100 | 1100 |
| Y-axis travel | mm | 620 | 620 |
| Z-axis travel | mm | 600 | 600 |
| Worktable size | |||
| Working table size (X*Y) | mm | 1200×600 | 1200×600 |
| Max.loading capacity of working table | kg | 900 | 900 |
| Table T-slot size (width * number of slots * spacing) | number | 18x5x100 | 18x5x100 |
| Spindle | |||
| Spindle speed | rpm | 10000 | 8000 |
| Spindle drive form | belt driven | belt driven | |
| Spindle power | kW | BT40:11/15 | BT50:15/18.5 |
| Spindle bore specification | BT40 | BT50 | |
| Distance from spindle to table surface | mm | BT40:125-725 | BT50:145-745 |
| Spindle feed | |||
| Rapid feed rate(X,Y,Z) | m/min | 36/36/36 | 36/36/36 |
| Cutting feed rate | mm/min | 10000 | 10000 |
| Tool magazine | |||
| Tool magazine capacity | cutter arm type 24 | cutter arm type 24 | |
| Tool diameter/adjacent tool space | mm | BT40:Φ80/Φ150 | BT50:Φ110/Φ200 |
| Max. Tool length | mm | 300 | 300 |
| Max. Tool weight | kg | BT40:8 | BT50:15 |
| Accuracy | |||
| Positioning accuracy | mm | ±0.005 | ±0.005 |
| Reproduction accuracy | mm | ±0.003 | ±0.003 |
| Others | |||
| Controller | 0i-MF/M80 | 0i-MF/M80 | |
| Air pressure demand | kg/cm2 | 6 | 6 |
| Power demand | kVA | 30 | 30 |
| Machine weight | T | 6.5 | 6.5 |
| Model | A | B | C | D | E | F | G | H | I | J | K | T-slot number |
| DV-1166 | 1200 | 600 | 100 | 100 | 100 | 100 | 100 | 18 | 31 | 13 | 30 | 5 |
| DV-1166B | 1200 | 600 | 100 | 100 | 100 | 100 | 100 | 18 | 31 | 13 | 30 | 5 |
