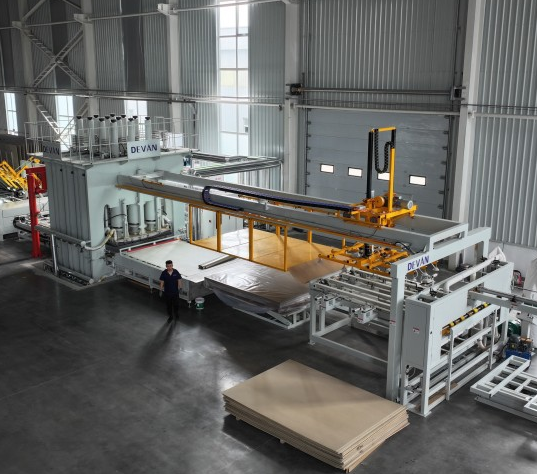

Vertical high-speed veneer production line

The Hanbang Vertical High-Speed Laminating Production Line is an advanced surface decoration system designed to laminate decorative materials onto panel surfaces with high efficiency and continuous automation. By feeding materials along the length direction of the panel, the production line achieves stable, high-speed operation while maintaining consistent laminating quality. It is mainly used for applying rolled decorative materials, including PVC film, PP film, decorative paper, and thin wood veneer, to standard-sized panels. As one of the most widely adopted laminating solutions in the panel furniture industry, it offers an economical, productive, and reliable option for large-scale manufacturing.

Key Features

High Efficiency with Continuous Production

The production process is carefully optimized to integrate board feeding, laminating, pressing, and unloading into one uninterrupted workflow. This continuous operation significantly shortens the production cycle, increases single-shift output, and minimizes manual intervention, making it an ideal solution for high-volume manufacturing environments.

Designed for Standard Panel Production

The production line is specifically developed for standard-sized boards, ensuring excellent compatibility with mainstream furniture manufacturing processes. Its vertical design requires less installation space than horizontal laminating lines with comparable production capacity, allowing manufacturers to maximize workshop utilization.

Fast Roll Replacement and Flexible Production

Different decorative materials and surface finishes can be changed quickly, allowing manufacturers to switch between PVC films, PP films, decorative papers, and natural wood veneers with minimal downtime. This flexibility supports both mass production and small-batch, multi-color manufacturing while improving production responsiveness.

Optional Dual-Sided Laminating

The system can be equipped with a dual-sided laminating press, enabling both the front and back surfaces of the panel to be laminated simultaneously. Completing two decorative surfaces in a single production cycle greatly improves manufacturing efficiency while reducing handling operations and overall production time.

Proven Technology with Excellent Cost Performance

As one of the most mature vertical laminating solutions available today, the Hanbang production line benefits from well-established manufacturing technology and dependable operating performance. Its optimized design helps manufacturers achieve stable production, reliable product quality, and a strong long-term return on investment.

Product Parameters

Main Machine (Customizable Sizes)

The production line can be customized to accommodate different panel specifications, including:

• 4 × 8 ft

• 4 × 9 ft

• 4 × 10 ft

• 7 × 9 ft

This flexibility allows manufacturers to configure the equipment according to their production requirements and product dimensions.

Automatic Production Line Configuration

The Hanbang Vertical High-Speed Laminating Production Line can be integrated with a complete automatic handling system, including:

• Longitudinal dual-servo panel feeding trolley

• Longitudinal servo panel unloading trolley

• Hydraulic lifting platform

• Panel hooking machine

• Dust collection system

• Automatic positioning platform

• Panel transfer machine

• Lifting paper rack

• Edge scraping machine

• Panel turning inspection table

• Drying line

• Panel unloading positioning table

• Stacking transfer machine

These automated modules work together to reduce manual handling, improve production continuity, and enhance overall manufacturing efficiency.

Optional Equipment

To further optimize laminating quality and production performance, the following optional configuration is available:

• Electrostatic adsorption device

The electrostatic adsorption system helps improve decorative material positioning during the laminating process, contributing to better surface quality and more stable production results.
