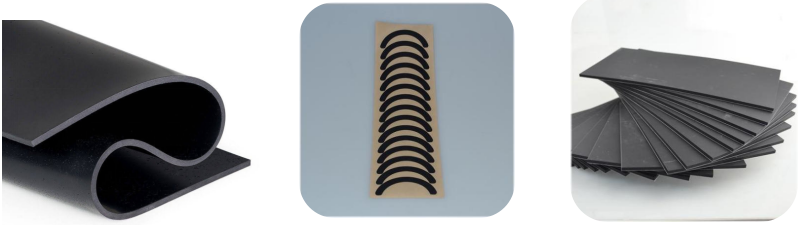

Silicone Rubber Sheet
Silicone caps are sleeve-shaped products made from silicone using a special process.
Silicone Rubber Sheet SP are made of silicone rubber materials. The products
are environmentally friendly and healthy and meet ROSH requirements. Silicone
Rubber Sheet SP can be used for a long time in the temperature range of
-40℃-200℃ and maintain their soft and elastic properties. They have excellent
electrical properties and chemical stability, are resistant to water, ozone, and
weathering, are non-corrosive, physiologically inert, non-toxic and odorless,
have low linear shrinkage, and are easy to operate. It has no thermal
conductivity.
Product Features
Long service life
Environmentally friendly, non-toxic and odorless
Good elasticity, soft and comfortable, easy to clean
Excellent electrical insulation performance
Excellent high and low temperature resistance
Stable sealing performance
Typical Applications
Aerospace, automotive, electrical,
pharmaceutical, food processing,
Furniture and industrial manufacturing.
Technical Data Sheet
|
Test Item |
Unit |
Standard |
Test Method |
|
Color |
—– |
Cream/Black |
Visual |
|
Thickness |
mm |
0.3-10 |
ASTM D374 |
|
Density |
g/cm3 |
1.3-1.5 |
ASTM D792 |
|
Hardness |
Shore A |
50-70 |
ASTM D2240 |
|
Tear strength |
KN/m |
2.3 |
ASTM D412 |
|
Elongation |
% |
60 |
ASTM D412 |
|
Breakdown voltage |
Kv/m |
≥8.0 |
ASTM D149 |
|
Volume resistivity |
Ω·m |
1.7×1013 |
ASTM D257 |
|
Temperature range |
℃ |
-40~220 |
EN344 |
|
Weight loss |
% |
≤1 |
@200℃ 200H |
|
Fire resistance |
—— |
V-0 |
UL 94 |
