High-Volume Consumer Electronics PCBA
Consumer Electronics PCBAs are circuit board assemblies designed for a wide range of everyday electronic devices, offering compact design, reliable performance, and cost-effective manufacturing.

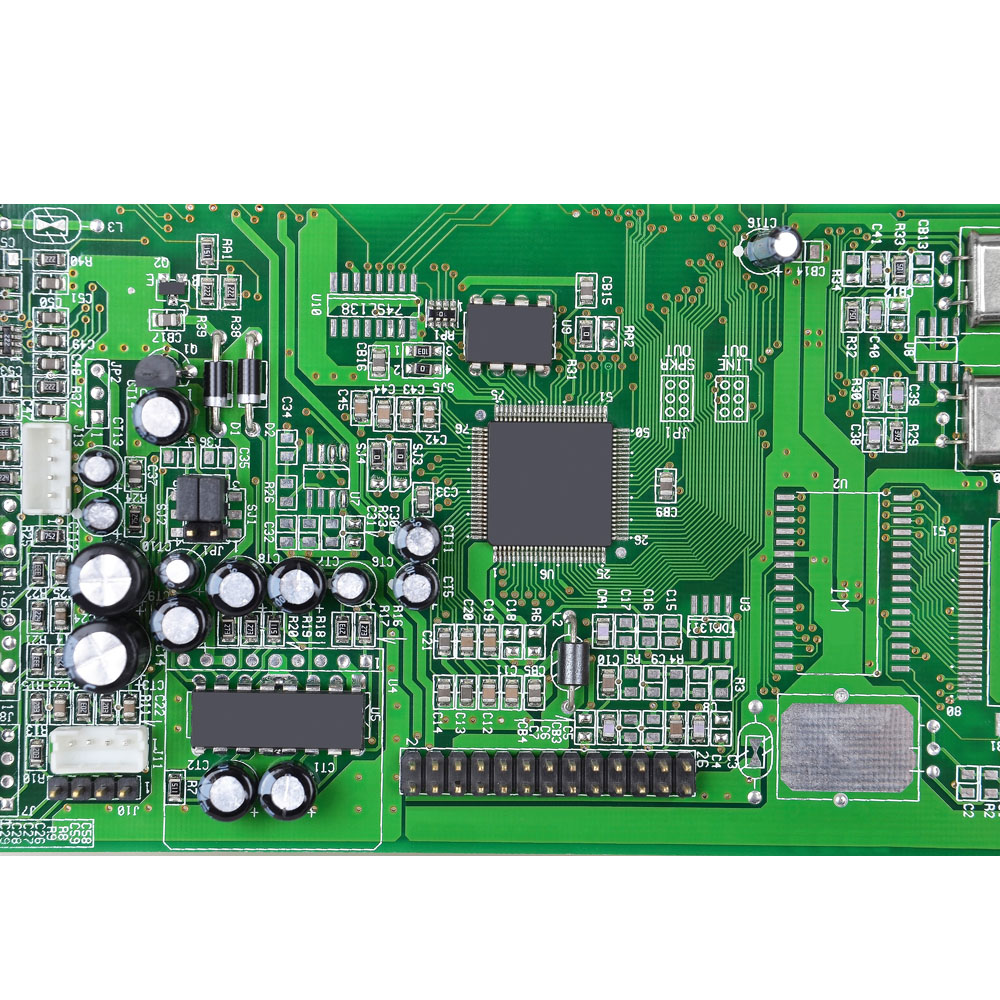

Consumer Electronics PCBA
Consumer Electronics PCBAs are engineered for high-volume, high-quality manufacturing to meet the fast-paced demands of the consumer market. They combine compact layouts, advanced component integration, and efficient production processes to deliver consistent performance in a variety of devices.
Features & Advantages
-
Compact and lightweight designs for portable devices
-
Cost-effective high-volume manufacturing
-
Support for advanced microprocessors and high-density components
-
Reliable performance for daily use and extended lifespan
-
Compliance with safety and environmental standards (RoHS, REACH)
Typical Applications
Smartphones, tablets, smartwatches, fitness trackers, smart home devices, home entertainment systems, personal care electronics, and small appliances.
Typical Specifications
| Layer Count | 2 to 12 layers |
|---|---|
| Base Material | FR-4, High-Tg FR-4, Flexible Substrates |
| Operating Temperature | 0°C to +70°C |
| Copper Thickness | 0.5 oz to 2 oz |
| Surface Finish | ENIG, HASL, OSP |
| Board Thickness | 0.4 mm to 1.6 mm |
| Max Board Size | 400 mm × 300 mm |
Note: Huayihai provides customized PCBA solutions for consumer electronics, focusing on miniaturization, cost optimization, and mass production efficiency.
