Seismic Support Forming Equipment for High-Precision Strut Channel Production

Modern MEP and construction projects require reliable structural support systems for HVAC ducts, pipelines, cable trays, and other building services. Seismic support forming equipment is designed to automate the production of C-channel seismic strut profiles, helping manufacturers achieve consistent dimensions, accurate punching patterns, and stable production efficiency.

This automated production line combines coil feeding, leveling, CNC servo punching, cold roll forming, flying cutting, and finished-product stacking into a continuous manufacturing process. It is suitable for high-volume production of seismic bracing channels and related steel framing components.

High-Strength Forming for Seismic Strut Profiles

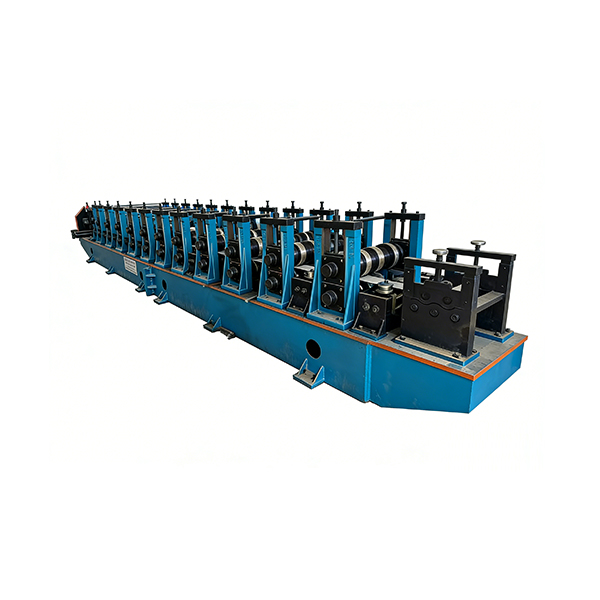

The forming line is engineered to produce C-channel profiles with consistent geometry, high structural rigidity, and controlled dimensional tolerances. Through multiple roll forming stages, the steel strip is gradually shaped into the required channel profile while reducing excessive deformation during production.

The equipment can process cold rolled steel and hot-dip galvanized steel strip, making it suitable for different structural support applications. Material thickness typically ranges from 1.5 to 2.5 mm, with configurations available for materials up to 3.0 mm.

For projects with specific structural requirements, different profile dimensions and material grades can be considered during equipment configuration.

Continuous Production at 30–45 m/min

The production line is designed for continuous high-speed operation, with a line speed of approximately 30–45 m/min depending on material specifications, profile design, and production conditions.

A servo tracking flying shear system allows finished channels to be cut to the required length while the forming line continues running. This reduces the need for frequent line stops and supports more efficient continuous manufacturing.

For large-volume orders, continuous forming and synchronized cutting can help improve overall production utilization.

Integrated Automatic Production Process

The complete line incorporates multiple production stages to create a streamlined manufacturing workflow. The main components include:

• Hydraulic Uncoiler with Loading Car: Available in 3T or 5T configurations for controlled feeding of steel coils.

• Precision Leveler: Removes coil set and helps reduce residual stress before the strip enters the punching section.

• CNC Servo Punching Station: Produces customized slots and bolt holes according to the required channel pattern.

• Cold Roll Forming Line: Uses approximately 20–24 forming passes to progressively shape the steel strip.

• Servo Tracking Flying Shear: Cuts finished profiles accurately without requiring the main forming line to stop.

• Automatic Run-Out Stacker: Collects and organizes completed seismic channels while helping protect galvanized surfaces from unnecessary scratching.

This integrated configuration reduces manual handling between production stages and provides a more consistent manufacturing process.

Precision Tooling for Long-Term Production

The forming rollers are manufactured from Cr12MoV alloy steel and undergo hardening and vacuum heat treatment. This tooling configuration is intended to provide improved wear resistance during continuous steel forming operations.

Precision-machined rollers help maintain profile consistency across repeated production cycles. For manufacturers producing large quantities of seismic channels, durable tooling can also help reduce the frequency of roller replacement and production interruptions.

CNC Servo Punching for Flexible Hole Patterns

Seismic strut channels often require different slot arrangements, mounting holes, and connection patterns depending on the final application. The integrated CNC servo punching station can be configured with multi-cavity punching dies to support different hole layouts.

This allows manufacturers to produce channel profiles with customized punching patterns without relying entirely on secondary manual processing.

The punching system can therefore be adapted to different seismic bracing, MEP support, and structural framing requirements.

Applications Across MEP and Construction Projects

The equipment can be used for manufacturing a variety of steel support profiles, particularly where continuous production and accurate channel geometry are required.

Typical applications include:

MEP Seismic Bracing

Production of C-channel profiles used in seismic restraint systems for mechanical, electrical, and plumbing infrastructure.

HVAC and Pipeline Support

Manufacturing hanging channels and structural supports for air-conditioning ducts, water pipes, process pipelines, and cable trays.

Industrial and Commercial Framing

Producing versatile strut channels for equipment supports, modular structures, construction framing, and other industrial applications.

Solar and Equipment Mounting

The resulting channel profiles can also be used in selected mounting and support structures, including certain solar bracket and equipment installation applications.

Main Technical Specifications

Can the Machine Produce Different Seismic Channel Sizes?

Yes. The forming line can be configured for different channel dimensions according to the required web height, flange size, material thickness, and profile design.

Depending on the equipment configuration, quick-change cassette systems or adjustable roller stands can be used to facilitate profile changes and improve production flexibility.

What Is the Production Lead Time?

The standard manufacturing period is approximately 45–60 days, depending on the selected machine configuration and customization requirements.

Before shipment, the production line can undergo full-load testing using actual steel coils to verify forming performance, punching accuracy, cutting operation, and overall line coordination.

Is Installation and Operator Training Available?

International installation, commissioning, and operator training can be provided by an experienced engineering team. On-site technical support helps operators understand the machine's operating procedures, production adjustments, routine maintenance, and troubleshooting requirements.

Ongoing technical assistance can also support customers after installation, helping maintain stable operation throughout the equipment's service life.

A Complete Solution for Seismic Channel Manufacturing

A reliable seismic support forming equipment solution needs to do more than form steel into a C-channel. Consistent feeding, accurate punching, controlled roll forming, synchronized cutting, and efficient material handling all influence the final production performance.

By integrating automatic coil feeding, precision leveling, CNC servo punching, multi-pass roll forming, flying shear cutting, and automatic stacking, this production line provides a continuous manufacturing solution for seismic strut channels and other structural support profiles.

For manufacturers serving MEP, HVAC, construction, industrial framing, and related markets, the equipment can provide a flexible foundation for high-volume and customized steel channel production.
