In modern power electronics, magnetic materials play a critical role in improving energy conversion efficiency, reducing power loss, and ensuring stable operation of electronic devices. Among various ferrite materials, RP51 ferrite material is widely recognized for its excellent magnetic properties, high saturation flux density, and low power loss characteristics.

Designed for high-frequency applications, RP51 provides an ideal balance between magnetic performance and thermal stability, making it suitable for transformers, inductors, power supplies, and other advanced electronic components.

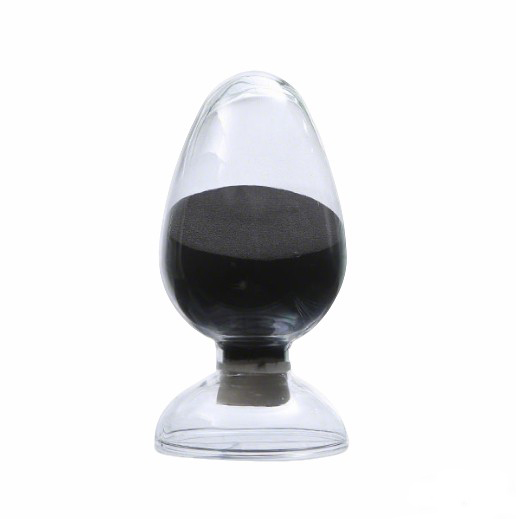

What Is RP51 Ferrite Material?

RP51 is a high-performance ferrite magnetic material developed for applications requiring efficient magnetic energy conversion and stable operation under high-frequency conditions.

Ferrite materials are ceramic magnetic materials mainly composed of iron oxide combined with other metal oxides. Due to their high electrical resistivity and excellent magnetic characteristics, ferrites are widely used in modern electronic and power equipment.

The RP51 material is particularly suitable for:

• High-frequency transformers

• Switching power supplies

• Power inductors

• Energy storage components

• Industrial electronic equipment

• Renewable energy power systems

Its optimized magnetic properties help designers achieve smaller, lighter, and more efficient magnetic components.

Excellent Magnetic Performance for Efficient Energy Conversion

The magnetic characteristics of a ferrite core directly influence the performance of electronic components. RP51 offers stable and reliable magnetic parameters to meet demanding application requirements.

Key magnetic properties include:

Initial Permeability (μi)

At 10kHz and 25℃:

μi = 1200 ±25%

High initial permeability allows the material to achieve effective magnetic flux concentration, improving transformer and inductor efficiency while reducing the required core size.

High Saturation Magnetic Flux Density

Saturation magnetic flux density:

Bs = 520mT (25℃, H=1194A/m)

A higher saturation flux density enables the magnetic core to handle stronger magnetic fields without entering saturation.

Benefits include:

• Higher power density

• Improved overload capability

• Reduced core size

• Better energy storage performance

This makes RP51 suitable for compact and high-power electronic designs.

Low Power Loss for High-Frequency Applications

One of the most important advantages of RP51 ferrite material is its low power loss performance.

Power loss characteristics:

Frequency	Condition	Power Loss
1MHz / 30mT	25℃	120 mW/cm³
1MHz / 30mT	100℃	80 mW/cm³
3MHz / 10mT	25℃	250 mW/cm³
3MHz / 10mT	100℃	150 mW/cm³

Low power loss helps:

• Reduce heat generation

• Improve energy efficiency

• Extend component lifespan

• Enhance system reliability

This makes RP51 an excellent choice for high-frequency switching power applications.

Stable Performance Under High Temperature Conditions

Electronic equipment often operates under continuous thermal stress. Material stability at elevated temperatures is therefore essential.

RP51 features:

• Curie temperature: >270℃

• Stable magnetic characteristics

• Reliable thermal performance

The high Curie temperature provides additional safety margins, allowing components made with RP51 ferrite cores to maintain stable operation in demanding environments.

Good Remanence and Coercivity Characteristics

RP51 magnetic parameters include:

• Remanence (Br): 100mT

• Coercivity (Hc): 40A/m

These characteristics provide balanced magnetic behavior for efficient magnetization and demagnetization cycles.

The optimized coercivity helps reduce unnecessary energy loss during repeated magnetic switching, making RP51 suitable for high-frequency applications.

Suitable for Compact and High-Efficiency Electronic Designs

With a density of:

4.7 × 10³ kg/m³

RP51 provides a practical combination of mechanical stability and magnetic performance.

Its characteristics allow engineers to design:

• Smaller transformers

• More compact power supplies

• Lightweight inductors

• High-efficiency electronic modules

As electronic devices continue moving toward miniaturization and higher power density, advanced ferrite materials like RP51 become increasingly important.

Common Applications of RP51 Ferrite Material

Due to its excellent magnetic properties, RP51 can be applied in various industries.

High-Frequency Transformers

RP51 helps transformers achieve:

• Lower energy loss

• Better thermal performance

• Higher conversion efficiency

Common applications include:

• Switching power supplies

• Communication equipment

• Industrial control systems

Power Inductors

The high saturation flux density makes RP51 suitable for inductors requiring:

• High current handling

• Stable inductance

• Compact structure

Renewable Energy Equipment

Modern renewable energy systems require efficient power conversion.

RP51 ferrite cores can be used in:

• Solar inverters

• Energy storage systems

• EV charging equipment

Consumer and Industrial Electronics

Applications include:

• Adapters

• Chargers

• LED power supplies

• Industrial electronic controllers

Advantages of Choosing RP51 Ferrite Material

Compared with traditional magnetic materials, RP51 offers several advantages:

1. High Magnetic Permeability

Improves magnetic coupling efficiency and supports compact component design.

2. High Saturation Flux Density

Allows higher operating power and better resistance to magnetic saturation.

3. Low Core Loss

Reduces energy waste and improves overall system efficiency.

4. Excellent Temperature Stability

Maintains reliable performance under demanding thermal conditions.

5. Suitable for High-Frequency Operation

Meets the requirements of modern switching technologies.

How RP51 Supports Future Power Electronics Development

The development trend of electronic equipment is moving toward:

• Higher frequency operation

• Smaller component size

• Greater energy efficiency

• Better thermal management

Traditional magnetic materials often struggle to meet these requirements. RP51 ferrite material provides a solution by combining high permeability, low loss, and strong thermal stability.

It supports innovation in:

• Electric vehicles

• Renewable energy systems

• Smart power grids

• High-efficiency adapters

• Industrial automation equipment

Conclusion

RP51 ferrite material is a high-performance magnetic solution designed for modern high-frequency electronic applications. With excellent initial permeability, high saturation flux density, low power loss, and outstanding thermal stability, it helps manufacturers develop more efficient, reliable, and compact magnetic components.

Whether used in transformers, inductors, power supplies, or renewable energy equipment, RP51 provides the magnetic performance required for next-generation power electronics. As the demand for energy-efficient technology continues to grow, advanced ferrite materials like RP51 will remain an essential foundation for high-performance electronic systems.
