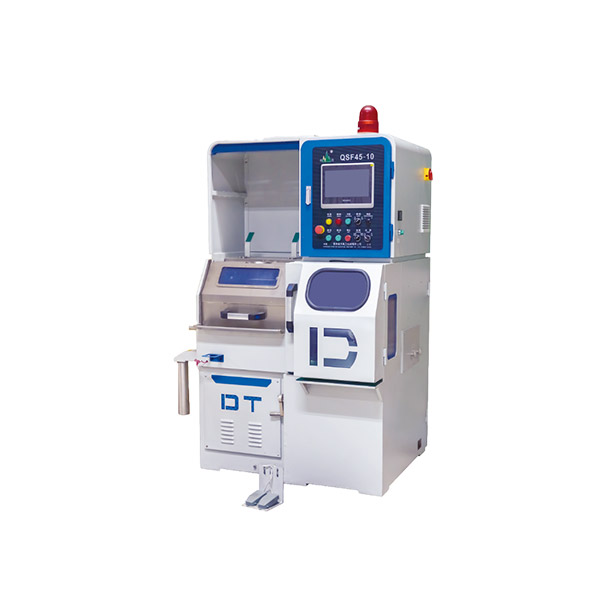

QSF45-10 Full Servo Ultra-fine Wire Drawing Machine
Inlet wire diameter:Φ0.0112mm- Φ0.0174mm
Outgoing wire diameter:Φ0.0085mm- Φ0.013mm
Technical parameters
|
Item |
Data |
|
Inlet wire blank |
φ0.0112mm-φ0.0174mm |
|
Outlet finished product |
φ0.0085mm-φ0.013mm |
|
Maximum line speed |
600m/min (0.05-1kg capacity wind-up) |
|
Maximum number of molds |
10 (9+1) |
|
Percent reduction |
5% final:4.5% |
|
Wire drawing means |
2 sets of cone pulleys, 2 constant speed pulleys, spray sliding type |
|
Cone pulley |
φ45×9 sections, 2 sets; constant speed pulley φ45, 2 sets; sprayed ceramics cone pulley |
|
Main engine |
0.4KW*4 Servo, ISMH4-40B30CB-U231Z*4, Single phase AC |
|
Take-up motor |
0.4KW Servo, ISMH4-40B30CB-U234Z*1, Single phase AC |
|
Traversing motor |
ISMH1-40B30CB-U231Z Servo, Single phase |
|
Water pump motor |
90W MP-55R & 10W MP-15KM, Single phase AC |
|
Light |
220V 40W, 220V 7W-11W Energy-saving light |
|
Speed adjustment mode |
Control by multi-turn potentiometer on small cabinet panel |
|
Traversing method |
Ball screw transmission, servo motor forward/reverse rotation, max width 120mm |
|
Lubricating means |
Spraying type (with water tank, water pump and pay-off rack) |
|
Overall dimensions (L x W x H) |
1450 x 1020 x 1740 mm |
|
Whole machine weight |
1.0T |
|
Size of take-up reel (customizable) |
φ110×72 / φ100×68 / φ15.5 (Steel plate, dynamic balancing) |
Remarks
To comply with this technical specification, it is essential to ensure the use of high-quality copper wires, premium lubricants, and wire drawing dies, as well as the adoption of rational drawing processes.
Fully imported electrical control cabinet with digital display for real-time working status monitoring, servo speed regulation and computerized automatic control of all processing parameters.
