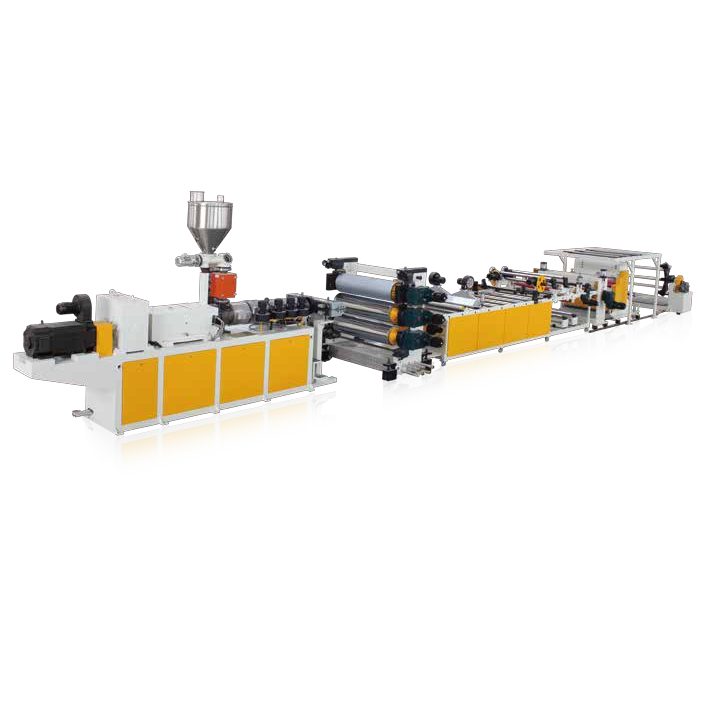

PVC Transparent Sheet and Rigid Sheet Extrusion Line for High Efficiency Production

The PVC Transparent Sheet and Rigid Sheet Extrusion Line is a highly efficient plastic processing system designed for producing high-quality PVC sheets with excellent transparency, stable thickness, and strong mechanical performance. It is widely used in packaging, construction, interior decoration, and industrial applications where durability and appearance are equally important.

This extrusion system converts PVC resin and additives into flat sheets through a continuous process of heating, melting, shaping, and cooling. Compared with traditional sheet-forming methods, extrusion technology offers better control, higher output efficiency, and more stable product quality.

Product Applications

PVC transparent and rigid sheets produced by this extrusion line are widely used in both decorative and functional fields.

Typical applications include:

• Hotel and restaurant interior decoration

• Office partition and wall decoration

• Villa interior wall and ceiling systems

• Kitchen and bathroom wall panels

• Exterior wall decoration materials

• Flooring and table coverings

• Industrial protective and packaging materials

These applications benefit from PVC sheets’ combination of transparency, rigidity, waterproof performance, and easy processing capability.

Product Overview

The PVC sheet extrusion line is designed to produce sheets with different thicknesses, widths, and transparency levels according to market demand. It can produce both transparent and opaque rigid sheets, making it highly versatile for different industries.

By adjusting process parameters, manufacturers can achieve:

• High transparency sheets for packaging

• Rigid opaque sheets for construction use

• Customized thickness for thermoforming applications

• Smooth surface finish for printing and decoration

This flexibility makes the system suitable for both large-scale industrial production and customized manufacturing needs.

Main Technical Specification

Note: Specifications are subject to change without prior notice.

Working Principle

The PVC transparent sheet and rigid sheet extrusion line operates through a continuous thermoplastic processing system:

1. PVC raw materials are mixed with stabilizers and additives

2. Materials are fed into the extruder through a vacuum feeding system

3. Inside the extruder, materials are melted and homogenized

4. Melted PVC is shaped into a flat sheet through a T-die or calender system

5. The sheet is cooled and stabilized through a controlled cooling system

6. Final sheets are cut or wound into rolls for packaging

This continuous process ensures high efficiency and stable product quality.

Key Advantages

High precision thickness control

The system ensures uniform sheet thickness through advanced die adjustment and online monitoring systems, reducing material waste and improving product consistency.

Stable high-speed production

Optimized screw design and temperature control allow continuous operation at high output without compromising quality.

Excellent optical performance

The system produces PVC transparent sheets with high clarity, low haze, and smooth surface finish suitable for packaging and decoration.

Strong mechanical performance

Rigid sheets produced by this line offer excellent impact resistance and dimensional stability.

Flexible production capability

The same line can produce transparent, opaque, rigid, or modified PVC sheets based on formulation changes.

Equipment Features

• Twin-screw or parallel co-rotating extrusion system

• High-efficiency melt filtration system

• Precision T-die or calender forming system

• Multi-zone temperature control system

• Automatic thickness calibration system

• Online quality monitoring system

• Automatic winding or cutting system

These systems work together to ensure stable production and high-quality output.

Quality Control System

The extrusion line integrates real-time monitoring to ensure consistent production quality.

Monitored parameters include:

• Sheet thickness deviation

• Melt pressure stability

• Temperature consistency

• Surface defect detection

• Optical transparency control

This closed-loop control system ensures that production remains stable even during long continuous operation.

Energy Efficiency and Stability

Modern PVC extrusion systems are designed with energy-saving and stability optimization features, including:

• Efficient heating and cooling systems

• Low-energy consumption motors

• Reduced mechanical friction design

• Stable torque output extruder system

These improvements help reduce production cost while maintaining consistent output quality.

After-Sales Service and Support

Jwell Machinery provides comprehensive global service support, including:

• Professional installation guidance

• Operator training at customer sites

• Global maintenance service network

• 48-hour response support system

• Long-term technical consultation

The company operates multiple service centers worldwide to ensure fast and reliable support.

Company Strength

Jwell Machinery is a professional manufacturer of plastic extrusion equipment with strong technical capabilities and global market presence. The company has delivered thousands of extrusion lines worldwide, serving customers in packaging, construction, and industrial manufacturing sectors.

With continuous innovation and engineering development, Jwell focuses on providing stable, efficient, and high-performance extrusion solutions.

Conclusion

The PVC Transparent Sheet and Rigid Sheet Extrusion Line is an essential production system for manufacturers seeking high efficiency, precision control, and versatile material output.

With advanced extrusion technology, precise thickness control, and stable automation systems, it enables continuous production of high-quality PVC sheets for a wide range of applications.

As market demand for PVC sheet products continues to grow globally, this extrusion line provides manufacturers with a reliable solution to improve productivity, reduce waste, and enhance product competitiveness in the plastic processing industry.
