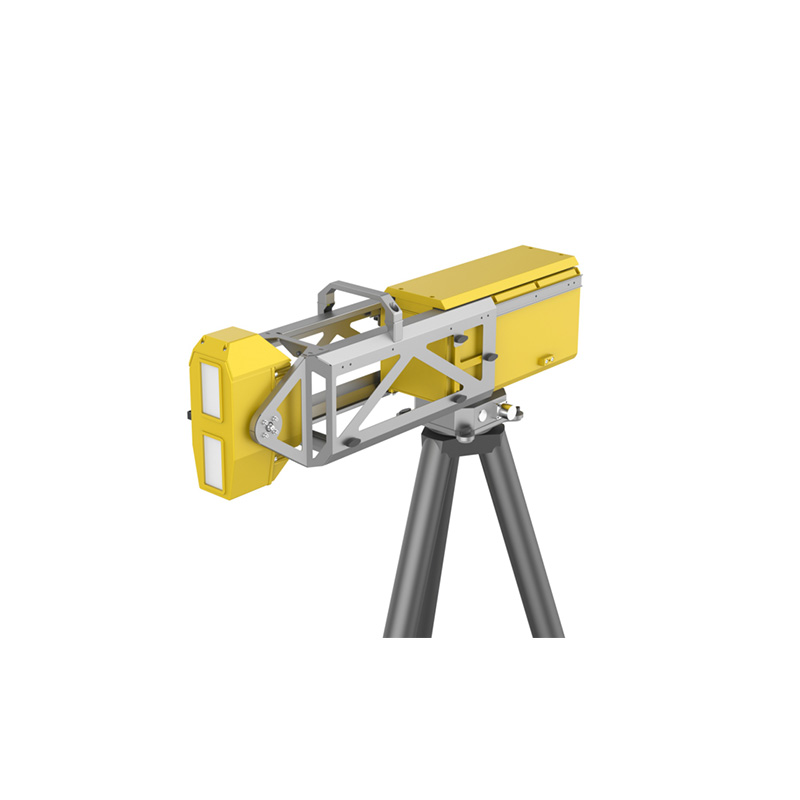

Portable 360° Emergency Deformation Monitoring Radar for Rapid Geohazard Response

In emergency situations involving landslides, unstable slopes, dam deformation, and post-disaster rescue operations, timely detection of ground movement is essential for assessing potential risks and protecting field personnel. The Portable 360° Emergency Deformation Monitoring Radar provides a mobile remote sensing solution for continuous surface displacement observation and early warning.

Integrating Arc-SAR (Arc Synthetic Aperture Radar) technology with FMCW (Frequency-Modulated Continuous Wave) transmission, this ground-based synthetic aperture radar (GB-SAR) system enables rapid monitoring across a maximum distance of 5 km. Its full 360° azimuth coverage allows operators to observe surrounding terrain without repeatedly repositioning the equipment.

Weighing no more than 9 kg, the radar supports single-person tripod deployment, making it suitable for emergency response teams that need to establish monitoring stations quickly. With sub-millimeter deformation measurement accuracy, all-weather operating capability, and integrated 3D visualization, it helps provide timely information about potential secondary geological hazards.

Key Features of the Portable Emergency Monitoring Radar

1. Comprehensive 360° Monitoring Coverage

The radar provides omnidirectional observation with a coverage angle of 360° × 40° and a maximum monitoring distance of 5 km. This wide monitoring capability helps operators assess deformation across large areas, including mountain slopes, dams, and other potentially unstable structures.

2. High-Precision Surface Displacement Measurement

With a deformation measurement accuracy of 0.1 mm, the system supports sub-millimeter-level displacement monitoring. Its remote sensing approach does not require the installation of reflectors on monitored surfaces, reducing the need for direct access to hazardous locations.

3. Compact Design for Rapid Field Deployment

Designed for mobile emergency applications, the radar weighs no more than 9 kg. Its lightweight construction supports single-person tripod installation, while towable transportation provides additional flexibility when moving between monitoring locations.

4. Continuous Monitoring in Challenging Weather

The IP65-rated enclosure and operating temperature range of -40°C to +55°C support deployment in demanding outdoor environments. The system is designed for all-day, all-weather monitoring in conditions involving rain, snow, fog, wind, and dust.

5. Adjustable Installation and Flexible Communication

An electrically controlled pitch adjustment range of at least 90° allows operators to adapt the radar orientation to different terrain and monitoring requirements. Both wired and wireless communication options are available for flexible field configurations.

6. Integrated 3D Visualization and Early Warning

The system combines monitoring data with 3D visualization and real-time early warning functions. This allows field teams to observe deformation trends, identify potential changes in monitored areas, and support emergency risk assessment.

Technical Specifications

Typical Applications

The Portable 360° Emergency Deformation Monitoring Radar is designed for rapid-response monitoring tasks across various geological and infrastructure environments.

• Landslide Monitoring: Observes surface displacement on unstable slopes and mountainous terrain to support geological hazard assessment.

• Dam Safety Monitoring: Provides remote deformation observation for dam structures and surrounding areas.

• Mountain Slope Surveillance: Helps identify displacement changes in potentially unstable rock and soil formations.

• Post-Disaster Rescue Operations: Supports emergency teams in monitoring hazardous areas and assessing the potential risk of secondary collapses.

• Infrastructure Deformation Monitoring: Can be deployed around buildings and critical infrastructure where continuous surface movement observation is required.

A Portable Radar Solution for Emergency Monitoring Operations

Combining Arc-SAR technology, FMCW transmission, lightweight construction, and full-circle monitoring coverage, the Portable 360° Emergency Deformation Monitoring Radar offers a flexible approach to rapid geohazard surveillance.

Its 5 km monitoring range, 0.1 mm deformation accuracy, IP65 protection, and single-person deployment capability make it suitable for emergency monitoring projects where mobility, measurement precision, and rapid installation are important.

For geological survey organizations, dam safety operators, emergency response departments, and infrastructure monitoring contractors, this portable GB-SAR radar provides a practical monitoring solution for field-based deformation observation and early warning applications.
