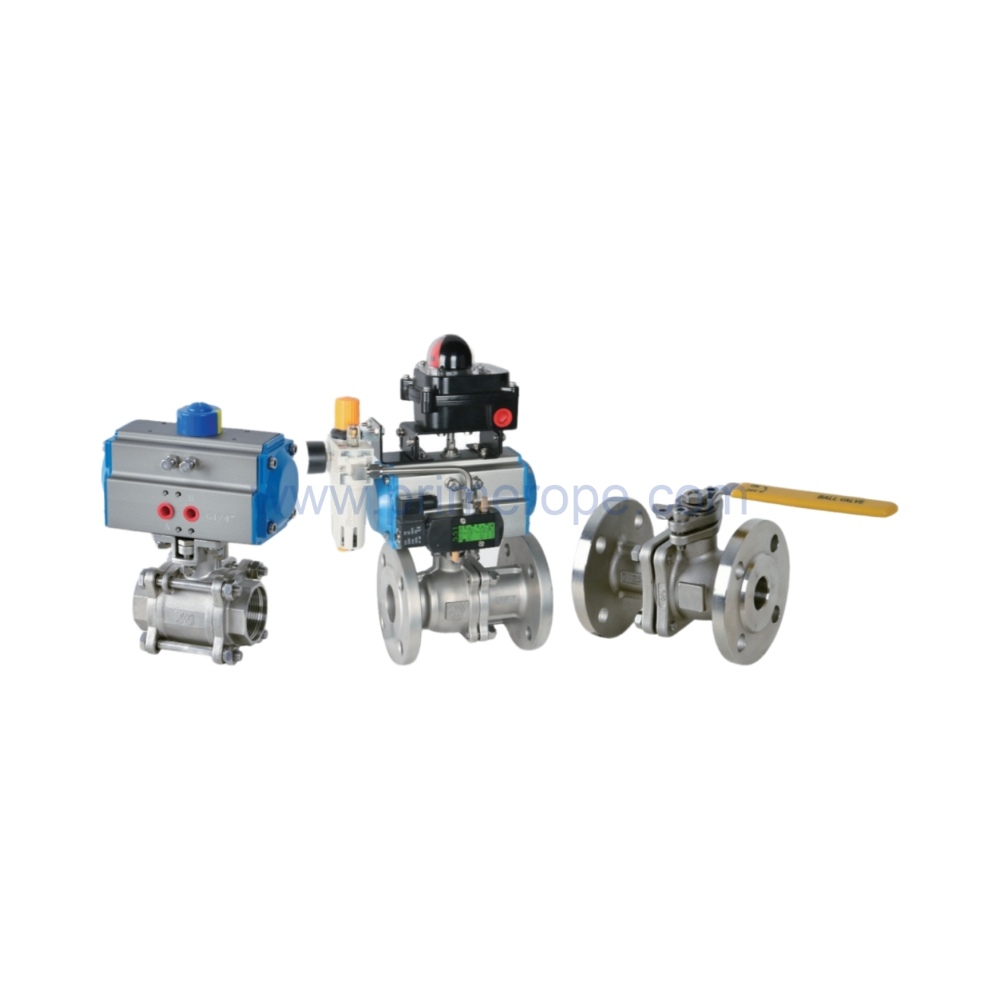

Pneumatic Three Piece Welded Ball Valve
Product model: Q661F
Nominal pressure: PN1.6-4.0MPa
Nominal diameter: DN15-DN50mm
Applicable temperature: ≤ 150 ℃
Product Material: Stainless Steel
Applicable media: water, gas, oil, acidic alkaline, etc
Product Features
| Nominal Pressure | PN1.6~6.4MPa |
| Nominal Diameter | DN15-200mm |
| Applicable Temperature | T=-30~180℃ |
| Main Material | WCB/CF8/CF8M/CF3/CF3M |
Executive Standard
| Design and Manufacture | GB12237-89 |
| Structure Length | JB12221-89/User requirements |
| Connecting Flange Size and Sealing Form | GB9113.3-9113.11-88 |
| Inspection Basis | GB/T12237-2007 Steel ball valves for petroleum, petrochemical and related industries |
Dimensions
| DN | L | L0 | H |
| 15 | 130 | 160 | 80 |
| 20 | 140 | 160 | 84 |
| 25 | 150 | 180 | 88 |
| 32 | 165 | 180 | 105 |
| 40 | 180 | 180 | 130 |
| 50 | 200 | 350 | 172 |
| 65 | 220 | 350 | 184 |
| 80 | 250 | 400 | 210 |
| 100 | 280 | 500 | 240 |
| 125 | 320 | 800 | 285 |
| 150 | 360 | 800 | 320 |
| 200 | 400 | 1200 | 335 |
