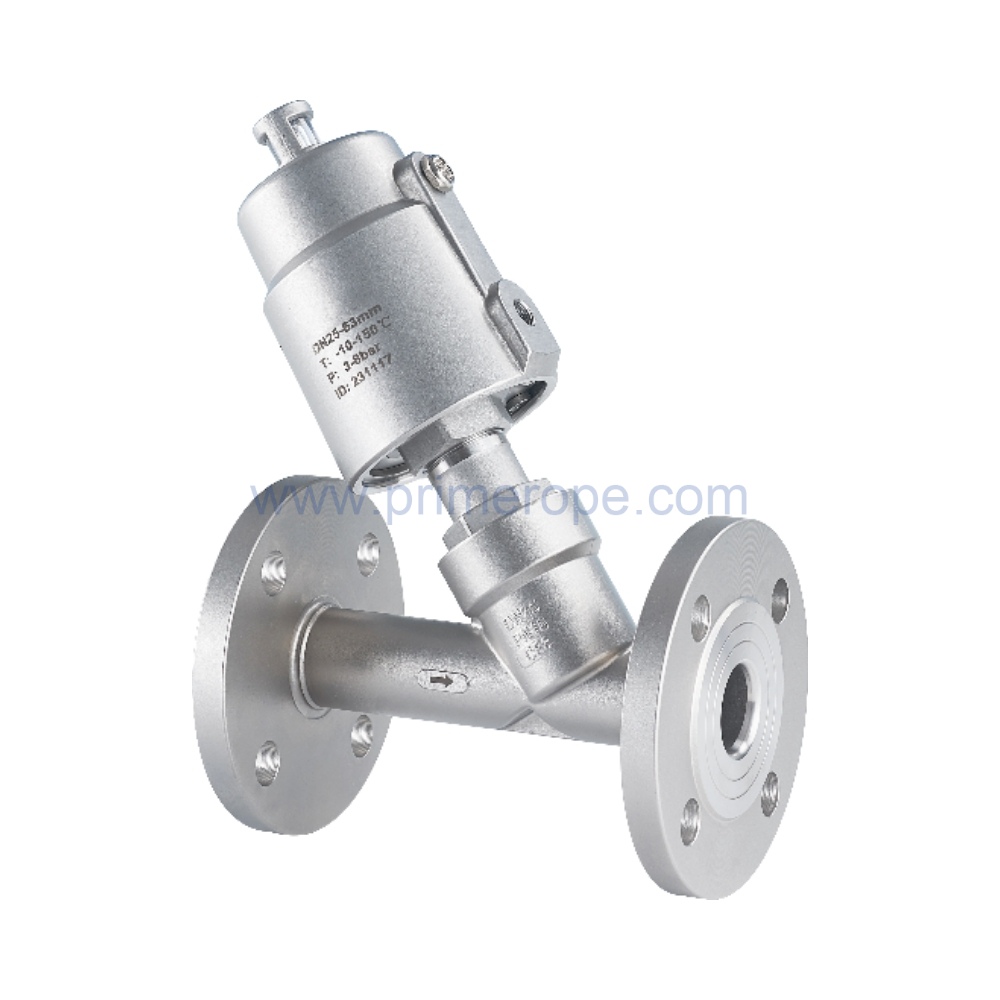

Pneumatic Angle Seat Valve

Valve body: CF8, CF8M, SS316L, 2205
Actuator: stainless steel
Seat sealing: PTFE, RPTFE, PEEK
Valve stem seal: PTFE, FKM, RPTFE
Piston seal: FKM, NBR
Nominal pressure (working pressure): 0-16bar (0-232Psi), optional vacuum as low as -0.9bar
Control pressure: 2-10bar
Control medium: clean compressed air, neutral gas, temperature: ≤ 60 ℃
External temperature (environment): -10 ℃~+80 ℃
Applicable media: water, neutral gases or liquids, alcohol, oil, fuel, steam, organic solvents, acid-base solutions, etc
Medium temperature: -10 ℃~+180 ℃ (PTFE room temperature type)
+25 ℃~+220 ℃ (PTFE high-temperature type)
Maximum viscosity: 600cst (mm2/s)
Valve leakage level: DIN EN 12266 Class A

Note: * The dimensions are the blank design dimensions (the actual dimensions may vary, for reference only)

Specification	Actuator mm	E	H	A	L	φD*	S*
DN10	50	60	141	140	70	17.4	3.8
DN15	50	60	141	140	70	22	3.25
DN20	50	60	145	149	80	27	3.75
DN25	63	75	167	174	100	34	4.25
DN32	80	94	200	217	125	39	3.75
DN40	80	94	200	217	130	45	3.75
DN50	80	94	208	229	150	57	3.75

Technical parameters

Interface nominal diameter: DN8-DN100 (1/4"-4")

Connection method: thread, welding, quick-install, flange, other methods for customized consultation

Valve body: CF8, CF8M, SS316L,2205

Actuator: stainless steel

Valve seat seal: PTFE, RPTFE, PEEK

Valve stem seal: PTFE, FKM, RPTFE

Piston seal: FKM, NBR

Nominal pressure (working pressure): 0-16bar (0-232Psi), vacuum as low as -0.9bar optional

Control pressure: 2-10bar

Control medium: clean compressed air, neutral gas, temperature: ≤60℃

External temperature (environment): -10℃ ~ +80℃

Applicable media: water, neutral gas or liquid, alcohol, oil, fuel, steam, organic solvent, acid and alkali solution, etc.

Medium temperature: -10℃~+180℃ (PTFE normal temperature type)

+25℃~+220℃ (PTFE high temperature type)

Maximum viscosity: 600cst(mm2/s)

Valve leakage level: DIN EN 12266 Class A

Features

1. Compact structure, high flow capacity;

2. Simple and fast commissioning;

3. Automatic stem correction (self-adjusting), self-lubricating, maintenance-free;

4. Visual position indicator rod;

5. Very suitable for high-frequency switching and quantitative operation;

6. Good adjustment characteristics;

7. The cylinder is made of stainless steel, performs well in harsh environments, has modular accessories, can be rotated 360°, and has a low maintenance rate. Stainless steel is particularly durable on steam and corrosive applications; has durable and reliable sealing elements, good sealing, tight closing, and long life;

8. Can be installed in any position (upward, flat or tilted), the cylinder is more suitable for upright position.
