Phoenix Contact – REL-IR-BL/L- 24DC/2X21 – Single relay
1032526

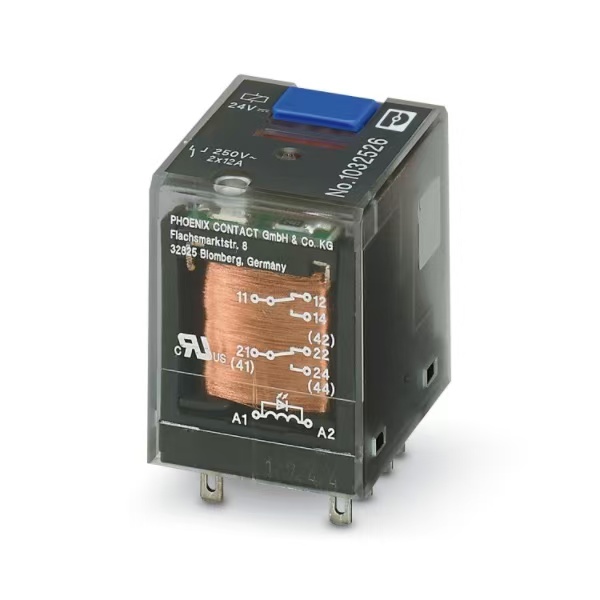

Plug-in industrial relay with power contacts, 2 changeover contacts, test button, status LED, mechanical switch position indicator, input voltage: 24 V DC
This product needs further products for operation.
Technical data
Notes
|
Notes on operation |
Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. |
|
Notes on operation |
The outputs are not suitable for switching different outer conductors. |
|
Notes on operation |
Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. |
Product properties
|
Product type |
Single relay |
|
Product family |
ESSENTIAL edition |
|
Operating mode |
100% operating factor |
|
Mechanical service life |
3x 107cycles |
Insulation characteristics: Air clearances and creepage distances between coil and contact side
|
Insulation |
Basic insulation |
|
Overvoltage category |
III |
|
Pollution degree |
2 |
Data management status
|
Date of last data management |
02.06.2025 |
Electrical properties
|
Service life electrical |
see diagram |
|
Maximum power dissipation for nominal condition |
759 mW |
|
Test voltage (Winding/contact) |
2.5 kVrms(50 Hz, 1 min., winding/contact) |
|
Test voltage (Changeover contact/changeover contact) |
2.5 kVrms(50 Hz, 1 min., changeover contact/changeover contact) |
Air clearances and creepage distances between coil and contact side
|
Rated insulation voltage |
250 V AC |
|
Rated surge voltage |
5 kV |
Input data
Coil side
|
Nominal input voltage UN |
24 V DC |
|
Input voltage range |
19.2 V DC … 40.8 V DC (20 °C) |
|
Drive and function |
monostable |
|
Drive (polarity) |
polarized |
|
Typical input current at UN |
32 mA |
|
Typical response time |
15 ms |
|
Typical release time |
10 ms |
|
Coil voltage |
24 V DC |
|
Status display |
Yellow LED (bidirectional) |
Output data
Switching
|
Contact switching type |
2 changeover contacts |
|
Type of switch contact |
Single contact |
|
Contact material |
AgNi |
|
Maximum switching voltage |
250 V AC/DC |
|
Minimum switching voltage |
12 V (10 mA) |
|
Limiting continuous current |
12 A |
|
Maximum inrush current |
24 A (20 ms, N/O contacts) |
|
Min. switching current |
10 mA (12 V) |
|
Interrupting rating (ohmic load) max. |
288 W (24 V DC) |
|
130 W (48 V DC) |
|
|
90 W (60 V DC) |
|
|
66 W (110 V DC) |
|
|
88 W (220 V DC) |
|
|
3000 VA (250 V AC) |
|
|
Switching capacity min. |
120 mW |
Connection data
|
Connection method |
Plug-in connection |
Dimensions
|
Width |
22.5 mm |
|
Height |
28 mm |
|
Depth |
35.5 mm |
Environmental and real-life conditions
Ambient conditions
|
Degree of protection |
RT II |
|
Degree of protection (Installation location) |
≥ IP54 (Installation location) |
|
Ambient temperature (operation) |
-40 °C … 70 °C |
|
Ambient temperature (storage/transport) |
-40 °C … 70 °C |
|
Altitude |
≤ 2000 m |
Standards and regulations
Air clearances and creepage distances between coil and contact side
|
Standards/regulations |
EN 61810-1 |
Mounting
|
Mounting type |
Plug-in mounting |
|
Assembly note |
in rows with zero spacing |
|
Mounting position |
any |
Commercial data
|
Item number |
1032526 |
|
Packing unit |
10 pc |
|
Minimum order quantity |
10 pc |
|
Sales key |
CK6 |
|
Product key |
DKF943 |
|
GTIN |
4055626536071 |
|
Weight per piece (including packing) |
30.176 g |
|
Weight per piece (excluding packing) |
30.176 g |
|
Customs tariff number |
85364900 |
|
Country of origin |
AT |
