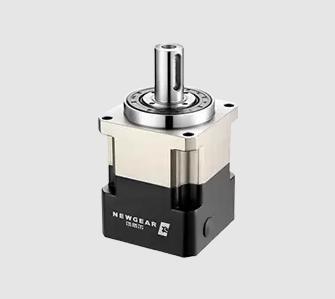

Newgear Spur Right Angle Bevel Gearbox PVFN for Nema 17

The Newgear PVFN series offers a compact, durable right-angle gearbox for precise motion control in automation and industrial equipment.

Productfeatures:

Product Features & Advantages:

· Right-angle output via spiral bevel gears, saving space in compact layouts.

· Square flange output paired with straight gears for simple, cost-effective design.

· Keyway-ready input shaft with low backlash (8–16 arcmin) ensures precise positioning.

· Robust construction delivers high torque capacity and long-term reliability.

· Supports OEM customization for varied applications.

Specifications:

· Size: 60–160 | Ratio: 3–100 | Accuracy: 8–16 arcmin

The Newgear PVFN series offers a compact, durable right-angle gearbox for precise motion control in automation and industrial equipment.

Technical Parameters Model Series PVFN60 PVFN90 PVFN120
Maximum Torque Nm 1.5 Time Rated Torque
Emergency Braking Torque Nm 2 Time Rated Torque
Maximum Allowable Radial Force N 240 450 1240
Maximum Allowable Axial Force N 220 430 1000
Torsion Rigidity Nm/arcmin 1.8 4.85 11
Maximum Input Speed rpm 8000 6000 6000
Rated Input Speed rpm 4000 3500 3500
Noise dB ≤58 ≤60 ≤65
Average Life Span h 20000
Full Load Efficiency % L1≥95% L2≥92%
Backlash P1 L1 arcmin ≤8 ≤8 ≤8
L2 arcmin ≤12 ≤12 ≤12
P2 L1 arcmin ≤16 ≤16 ≤16
L2 arcmin ≤20 ≤20 ≤20
Moment of Inertia L1 3 Kg.cm° 0.46 1.73 12.78
4 Kg.cm2 0.46 1.73 12.78
5 Kg.cm2 0.46 1.73 12.78
7 Kg.cm° 0.41 1.42 11.38
10 Kg.cm2 0.41 1.42 11.38
L2 12 Kg.cm2 0.44 1.49 12.18
15 Kg.cm2 0.44 1.49 12.18
16 Kg.cm' 0.44 1.49 12.18
20 Kg.cm2 0.44 1.49 12.18
25 Kg.cm2 0.44 1.49 12.18
28 Kg.cm' 0.44 1.49 12.18
30 Kg.cm2 0.44 1.49 12.18
35 Kg.cm2 0.44 1.49 12.18
40 Kg.cm° 0.44 1.49 12.18
50 Kg.cm2 0.34 1.25 11.48
70 Kg.cm2 0.34 1.25 11.48
100 Kg.cm° 0.34 1.25 11.48
Technical Parameters Model Series PVFN60 PVFN90 PVFN120
Specification Ratio
Rated Torque L1 3 27 96 161
4 40 122 210
5 40 122 210
7 34 95 170
10 16 56 86
L2 12 27 96 161
15 27 96 161
16 40 122 210
20 40 122 210
25 40 122 210
28 40 122 210
30 27 96 161
35 40 122 210
40 40 122 210
50 40 122 210
70 34 95 170
100 16 56 86
Degree of protection IP65
Operating Temperature —10°C to 90°C
Weight（Kg) L1 1.7 4.4 10
L2 1.9 5.0  13
