LB-200 Metallographic Measuring Microscope

The LB-200 metallographic measuring microscope is designed for precision observation and measurement applications in industrial inspection environments. It supports stable performance, flexible customization, and standardized testing requirements for laboratory and production use.

Basic Information

• Product Model: LB-200

• Minimum Order Quantity (MOQ): 1 set

• Payment Terms: T/T

• Footprint: 600mm × 600mm

• Delivery Time: Standard products within 30 days (customized models excluded)

• Transport Package: Wooden case

• Customization Options: Supported (color, logo, test fixture, module, etc.)

• HS Code: 44031644Q9

• Certification: ISO9001

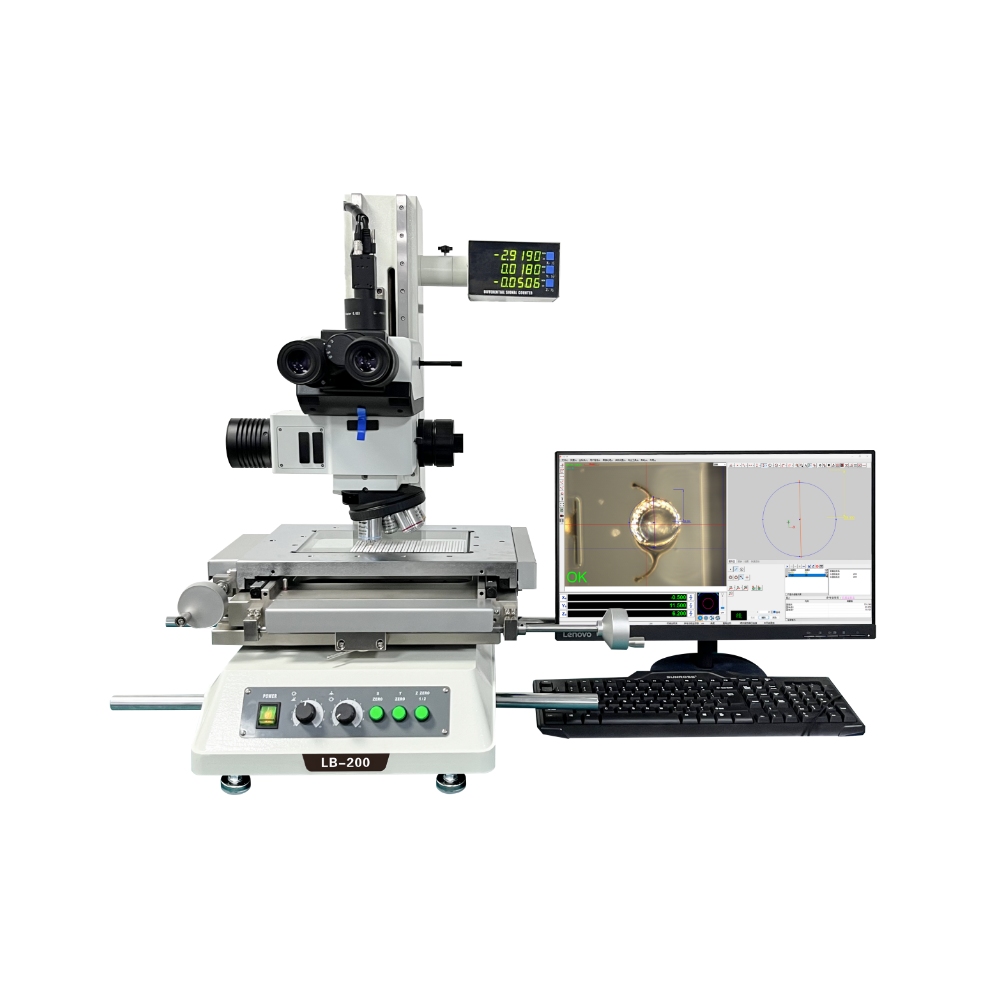

Product Diagram

Service & Support

• Service System: One-stop service covering pre-sales consultation, in-sales coordination, and after-sales training

• Technical Support: Online technical assistance and professional consultation available

• Sample Policy: Free sample testing provided

• Warranty: 1-year warranty with parts replacement and repair support

• Production Capacity: 200 units/year

Product Image Reference

• metallographic measuring microscope.jpg

Technical Specifications – Model LB-220

Although the LB-200 is the base model, the LB-220 configuration provides extended reference parameters for performance evaluation and system comparison.

Optical Performance

• Magnification Range: 45× – 325×

• Lens Display Size: 22 inches

• Resolution: 1920 × 1080

• Main Optical Functions:
  Electric magnification control, working distance adjustment, and field of view optimization

Mechanical Structure

• Base Dimensions: 600mm × 600mm

• Working Distance: 178mm

• Extended range option: XDS-10A working distance up to 265mm

Electrical System

• Power Input:

• 110V / 60Hz

• 220V / 50Hz

Illumination System

• Main Light Source: High-brightness LED illumination (121W)

• Auxiliary Lighting: 8W fluorescent light

• Optional Configuration: LED auxiliary illumination available

Application Scope

The LB series metallographic measuring microscope is suitable for industrial inspection environments requiring high-precision observation and measurement, including:

• Material structure analysis

• Surface inspection

• Laboratory quality control processes

• Industrial R&D measurement tasks
