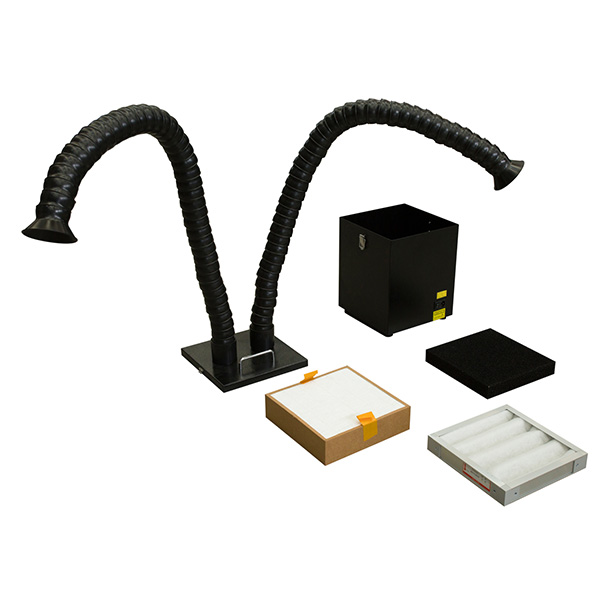

KSXH-20B Soldering Fume Extractor
Features:
● light weight, easy to operate
● Adjustable flexible POM suction arm
● High-power DC brush-less motor
● Multi-level-filtration,cotton filter, HEPA filter and activated carbon filter
● Long service life, low noise, large air flow
Introduction:
Small but powerful–CE & RoHS certificated KSXH series fume extractor creates a powerful 260 cubic meter airflow to exhaust and purify air, suitable
for small soldering station and home DIY. The compact size can be stuffed under
the table and won’t hinder your leg free. Its flexible POM suction arm can be
disassembled and shortened at any time.
Parameters:
|
Model |
KSXH-20B |
|
Fan Air Flow |
480±10m3/h |
|
Inlet Air Flow |
260±10m3/h |
|
Motor Power |
200W |
|
Power Supply |
1x220V/50Hz |
|
Maximum Pressure |
450Pa |
|
Filter Material |
Cotton, Cellulose, Carbon |
|
Filtration Area |
3㎡ |
|
Filtration Efficiency |
≥95% |
|
Filtration Precision |
≥0.5μm |
|
Filter Element |
HEPA |
|
Cleaning Method |
Changing filter |
|
Noise Level |
≤65±5 dB |
|
Suction Arm |
1xφ75mmx1200mm |
|
Dimension (WxDxH) |
308×308×420mm |
|
Weight |
15±2kg |
Options & Accessories:
1.2m to 3m suction arm
Frequency converter
Activated carbon filter
Applications:
Light welding activities
Steel or stainless steel wedling
TIG welding
Auto repair shops
Agricultural sector
Welding school
Technical college
