Horizontal high-speed veneer production line

Hanbang's Horizontal High-Speed Laminating Production Line is designed for high-efficiency surface lamination and decoration of wood-based panels. Using a horizontal feeding structure and automated production process, the line can laminate PVC film, PP film, decorative paper, thin veneer, fire-resistant board, and other surface materials onto MDF, particleboard, plywood, and other substrates.

With feeding speeds of up to 60 m/min or more, depending on the production configuration and material requirements, the system is suitable for manufacturers seeking higher production efficiency, consistent surface quality, and reduced manual intervention.

High-Speed Lamination for Continuous Production

The production line is designed for continuous or rapid-cycle operation, allowing manufacturers to process panels efficiently while maintaining stable production conditions.

Compared with manual or semi-automatic lamination processes, the horizontal high-speed configuration provides a more consistent material feeding and pressing process. The feeding speed can be adjusted according to substrate specifications, decorative materials, adhesive conditions, and production requirements.

For high-volume panel production, this helps improve line efficiency while reducing unnecessary handling between processes.

Wide Material Compatibility

One of the key advantages of the Hanbang laminating production line is its adaptability to different panel materials and surface finishes.

The system can be configured for laminating materials including:

• PVC film

• PP film

• Decorative paper

• Thin wood veneer

• Fire-resistant board

• Other compatible decorative surface materials

It can also accommodate different substrate materials, including:

• Medium-density fiberboard (MDF)

• Particleboard

• Plywood

• Multi-layer boards

• Other wood-based panels

With suitable mold selection and parameter adjustment, the equipment can handle substrate thicknesses from approximately 2 mm to 40 mm, depending on the specific configuration.

This flexibility allows one production line to support multiple product specifications rather than being limited to a single panel type.

Consistent Surface Quality

For laminated panels, production speed is only one part of the equation. Surface quality is equally important.

The Hanbang horizontal laminating system is designed to provide uniform pressing conditions across the panel surface, helping achieve consistent lamination flatness and surface appearance.

Depending on the selected decorative material and process parameters, manufacturers can produce different surface effects, including:

Matte | Glossy | Soft-touch | Decorative wood grain | Customized surface finishes

Stable temperature, pressure, feeding, and pressing conditions help reduce common surface problems such as uneven bonding, wrinkles, inconsistent gloss, and poor decorative material adhesion.

The final surface quality will depend on the selected materials, adhesive system, panel specifications, and production parameters.

Intelligent PLC Control System

The production line uses a PLC central control system combined with a touch-screen human-machine interface.

Operators can set and monitor key production parameters through the control interface, making the operation process easier to manage.

The system can support:

• One-key parameter setting

• Parameter storage and recall

• Automated production control

• Production process monitoring

• Reduced manual intervention

• Easier adjustment between product specifications

For manufacturers producing different panel formats or decorative finishes, parameter storage can help reduce setup time when switching between established production recipes.

An optional MES interface can also be incorporated for customers who require production data collection and traceability.

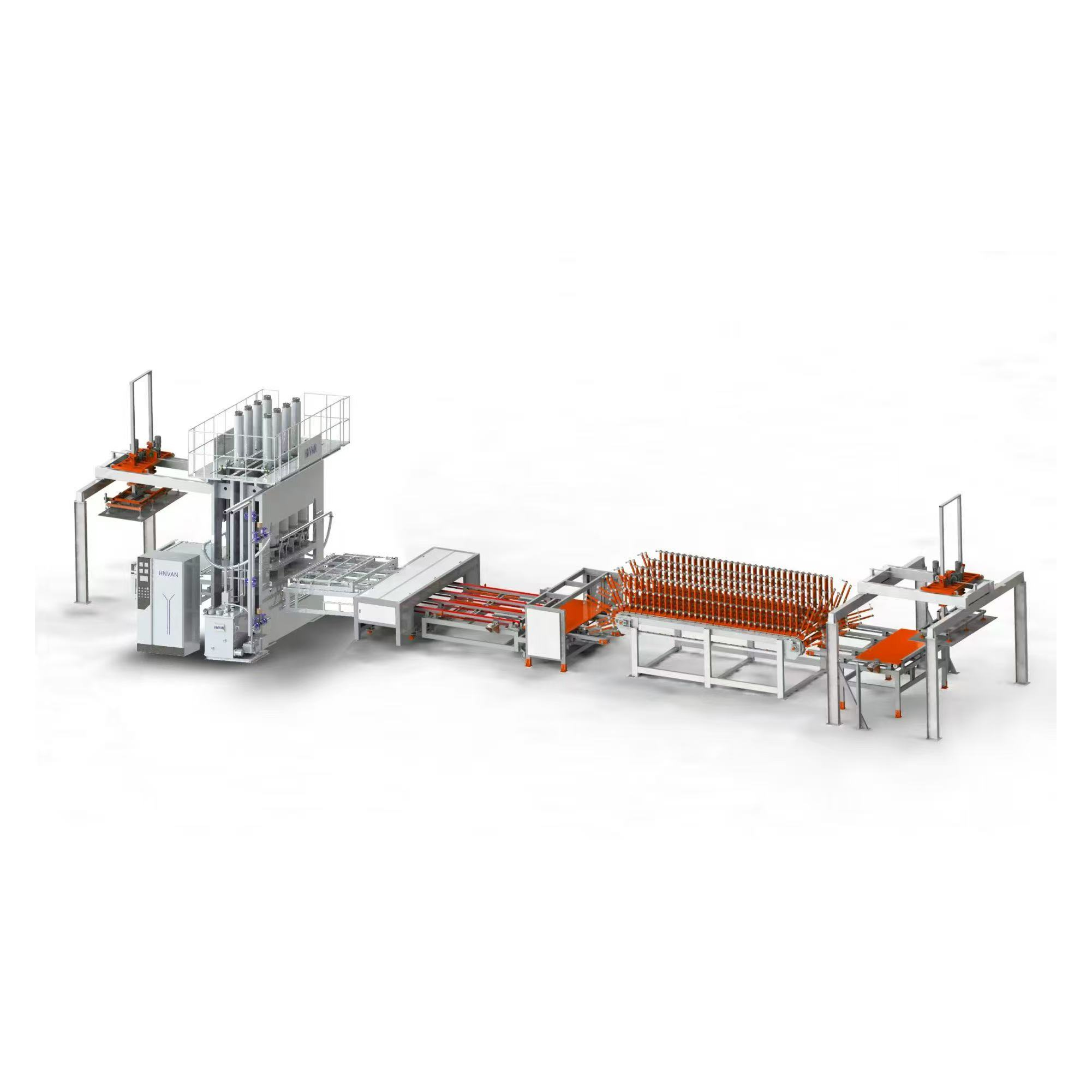

Automated Production Line Configuration

Hanbang can configure the laminating line according to the customer's production process and factory layout.

A complete automated line can include:

Servo Infeed Conveyor

The servo-controlled feeding system provides stable and controlled panel transportation into the pressing section.

Servo Outfeed Conveyor

After pressing, the finished panels can be transferred automatically to the following production stage, reducing manual material handling.

Loading and Transfer Machine

The loading and transfer system can be integrated into the line to improve material movement efficiency and maintain continuous operation.

Edge Trimming Machine

An optional edge trimming unit can process panel edges after lamination according to the required production workflow.

Finished Product Conveyor Table

The conveyor table provides an organized transfer area for finished laminated panels.

Unloading and Transfer Machine

The unloading system can automatically move processed panels toward drying, inspection, stacking, or other downstream equipment.

32-Panel Drying Line

For production processes requiring additional drying, Hanbang can provide a 32-panel drying line as part of the overall configuration.

Multiple Press Configurations

The main pressing equipment can be customized according to production requirements.

Available configurations include:

• Single-platen hot press

• Double-platen hot press

• Customized pressing systems

Different press models are available from 1600T to 4000T, providing options for different panel sizes, production capacities, and pressing requirements.

Model	Format Size	Total Pressure	Oil Cylinder
HBYJ-C1-1600T	4 × 8	16,000 kN	φ320 × 8
HBYJ-C1-2000T	4 × 8 / 4 × 9 / 4 × 10	20,000 kN	φ360 × 8
HBYJ-C1-2400T	4 × 8 / 4 × 9 / 4 × 10	24,000 kN	φ400 × 8
HBYJ-C1-2800T	4 × 8 / 4 × 9 / 4 × 10	28,000 kN	φ420 × 8
HBYJ-C1-3200T	4 × 8 / 4 × 9 / 4 × 10	32,000 kN	φ450 × 8
HBYJ-C1-3600T	4 × 8 / 4 × 9 / 4 × 10	36,000 kN	φ480 × 8
HBYJ-C1-4000T	4 × 10	40,000 kN	φ450 × 10

The actual production capacity depends on factors such as panel size, material type, pressing conditions, dwell time, loading method, and line configuration.

Optional Devices for Different Production Requirements

Hanbang also offers optional auxiliary systems to optimize specific lamination processes.

Electrostatic Adsorption Device

The electrostatic adsorption system can help maintain the position of certain decorative materials during handling and lamination, supporting more stable material placement.

Secondary Circulation Device

A secondary circulation system can be integrated when the production process requires additional circulation and material handling functions.

Forced Cooling Device

For applications requiring faster cooling after pressing, a forced cooling system can be added to the production line.

Cylinder Tensioning Device

The cylinder tensioning device can be used to improve tension control for compatible materials and production processes.

Mold Temperature Controller

A mold temperature controller provides additional control over pressing temperature, helping manufacturers maintain more consistent thermal conditions during production.

These optional systems can be selected according to the materials, process requirements, production capacity, and factory layout.

Designed for Customized Production Lines

Every panel manufacturing facility has different requirements. Panel dimensions, decorative materials, adhesive systems, production capacity, factory space, and downstream processes can all affect the ideal equipment configuration.

For this reason, Hanbang does not limit the system to one standard production line.

The company can customize the equipment configuration according to customer requirements, including the main hot press, feeding and unloading systems, trimming, drying, cooling, inspection, stacking, and other auxiliary equipment.

This makes it possible to build a complete production workflow rather than purchasing individual machines that have to be integrated later.

Applications

The Horizontal High-Speed Laminating Production Line is suitable for manufacturers producing:

• Decorative MDF panels

• Laminated particleboard

• Furniture panels

• Interior wall panels

• Decorative wood panels

• Fire-resistant laminated boards

• PVC laminated panels

• PP film laminated panels

• Veneer-faced panels

It is particularly suitable for factories that require repeatable lamination quality and higher production efficiency across multiple panel specifications.

Why Choose Hanbang?

Hanbang focuses on the development and manufacturing of hot pressing and laminating equipment for panel processing applications.

The Horizontal High-Speed Laminating Production Line combines high-speed material handling, controlled pressing, automated operation, flexible material compatibility, and optional auxiliary equipment into an integrated production solution.

For manufacturers planning to upgrade from manual or conventional lamination processes, the system provides a practical way to increase automation and improve production consistency.

More importantly, the equipment can be customized around the actual production process. From a single hot press to a complete automated line with feeding, trimming, drying, cooling, inspection, and stacking functions, Hanbang can configure the system according to the customer's product and factory requirements.

Hanbang Horizontal High-Speed Laminating Production Line — designed for faster production, consistent surface quality, and flexible panel lamination applications.
