EPC CORES

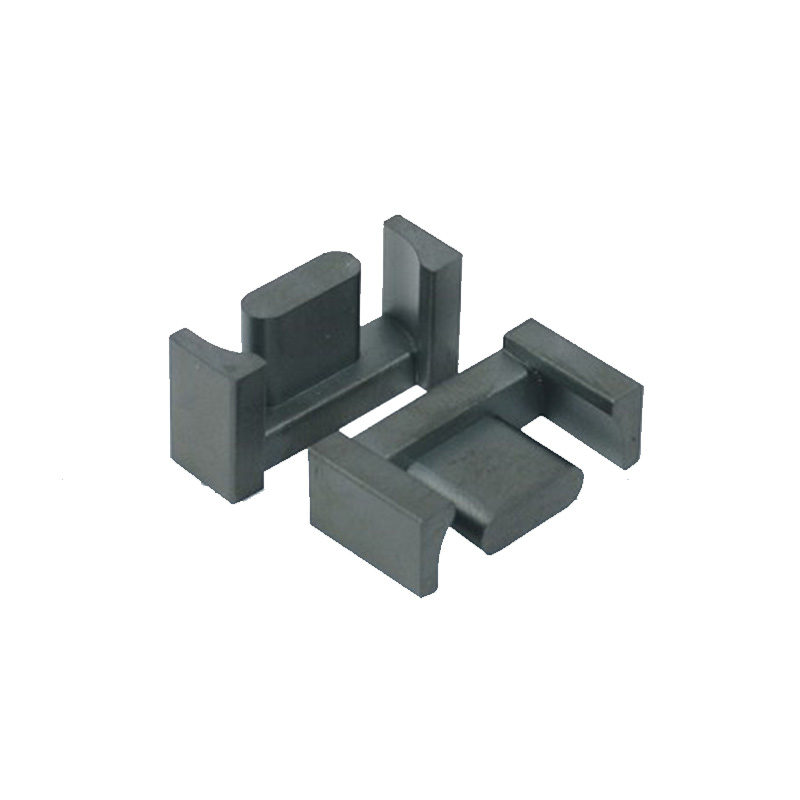

EPC Model Magnetic Core
Custom sizes and colors are available
|
Type |
Dimensions (mm) |
||||||||||||||||
|
A |
B |
C1 |
C2 |
D1 min |
D2 min |
E |
F |
||||||||||
|
EPC25 |
25.1±0.5 |
12.5±0.3 |
8.0±0.2 |
4.0±0.15 |
20.65 |
17.0 |
11.5±0.2 |
9.0±0.3 |
|||||||||
|
EPC46.5 |
46.5±1.0 |
22.0±0.3 |
19.45±0.35 |
12.0±0.2 |
37.0 |
29.8 |
20.9±0.3 |
15.5±0.3 |
|||||||||
|
Type |
Parameters |
AL（nH/N2）±25% |
Weight(g） |
|||||||||||
|
C1（mm-1） |
Le（mm） |
Ae（mm2） |
Ve（mm3） |
RP2K3 |
RP2K4 |
|||||||||
|
EPC25 |
1.280 |
59.2 |
46.4 |
2748 |
1600 |
1700 |
12.8 |
|||||||
|
EPC46.5 |
0.495 |
117.3 |
237 |
27800 |
4800 |
5000 |
121.7 |
|||||||
