Diesel Generator Set BDC1600GF 2000KVA 400V/50Hz Prime Power/ Cummins QSK60-G4

For large industrial facilities, data centers, infrastructure projects, and other critical-power applications, generator selection is not simply a matter of choosing the highest available output. The generator must maintain stable voltage and frequency, respond effectively to changing loads, provide adequate cooling and ventilation, and operate reliably under demanding site conditions.

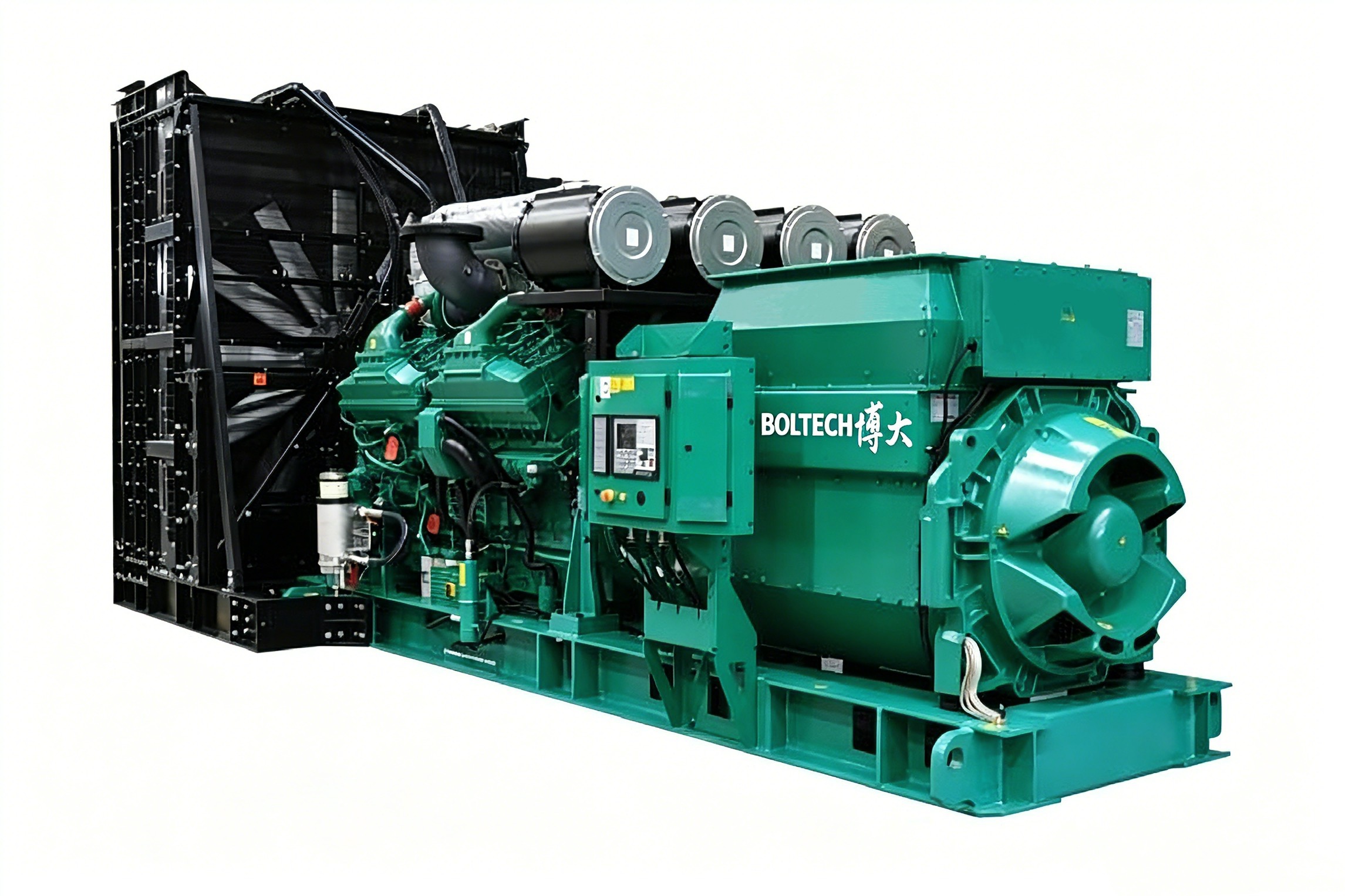

The BDC1600GF diesel generator set is designed for high-capacity power generation, delivering 1600 kW of prime power and 1760 kW of standby power. With a 2000 kVA generator-set capacity, a 1500 rpm operating speed, and a 400 V three-phase output, it provides a practical configuration for large-scale industrial and commercial power requirements.

High-Capacity Power for Demanding Applications

The BDC1600GF is rated at 1600 kW prime power and 1760 kW standby power, with a power factor of 0.8 lagging. Its rated current reaches 2886.4 A at 400 V, making the unit suitable for applications where substantial electrical loads need to be supported.

The main generator-set specifications include:

• Model: BDC1600GF

• Prime Power: 1600 kW

• Standby Power: 1760 kW

• Capacity: 2000 kVA

• Rated Voltage: 400 V

• Rated Frequency: 50 Hz

• Rated Speed: 1500 rpm

• Power Factor: 0.8 lagging

• Connection: Three-phase, four-wire

• Weight: approximately 13,650 kg

• Dimensions: 5640 × 2200 × 2703 mm

This power range can support large electrical loads in manufacturing facilities, commercial buildings, infrastructure projects, backup power systems, and other applications where power continuity is important.

Powered by the Cummins QSK60-G4 Engine

The engine is one of the most important components affecting generator performance. The BDC1600GF uses the Cummins QSK60-G4, a 16-cylinder V-type diesel engine with a 60.2-liter displacement.

The four-stroke, turbocharged engine operates at a rated speed of 1500 rpm and uses electronic governing to control engine speed under changing load conditions.

Key engine specifications include:

• 16 cylinders in V configuration

• 60.2 L displacement

• 159 mm cylinder bore

• 190 mm stroke

• 14.5:1 compression ratio

• 1730 kW prime engine power

• 1915 kW standby engine power

• Electronic governor

• Closed-loop water cooling

• Approximately 7185 kg dry engine weight

The engine's high displacement and substantial power reserve provide the foundation for stable operation of the generator set under heavy electrical demand.

Fuel Efficiency Across Different Load Levels

Fuel consumption is an important operating consideration for a high-output diesel generator. The BDC1600GF engine's fuel consumption varies according to its load level.

According to the supplied technical data:

These figures illustrate why generator operating profiles should be considered when planning fuel storage and operating schedules.

At lower loads, specific fuel consumption increases. Therefore, facilities with highly variable power requirements may benefit from appropriate generator sizing, load management, or multiple-generator configurations rather than operating a very large generator continuously at a low load.

Stable Frequency and Voltage Control

Power quality is especially important for sensitive industrial equipment, automation systems, communications equipment, and other electrical loads.

The BDC1600GF is specified with a steady-state frequency band of no more than 0.5% and a steady-state voltage deviation of no more than ±1%.

Other stated performance indicators include:

• Frequency recovery time: ≤3 seconds

• Voltage recovery time: ≤4 seconds

• Transient frequency deviation: ≤+10% / ≤-7%

• Transient voltage deviation: ≤+20% / ≤-15%

• Voltage unbalance: 1%

• Voltage modulation: 0.3%

• Telephone harmonic factor: <2%

• Telephone influence factor: <50

These parameters are relevant when evaluating generator performance under changing electrical loads. In practical installations, actual results also depend on load characteristics, control settings, installation conditions, and the complete electrical system.

Flexible Alternator Configurations

The BDC1600GF can be equipped with different alternator options depending on project requirements.

Available configurations include:

The alternator operates at 1500 rpm and 400 V, with air cooling, AVR voltage regulation, brushless field excitation, and a star-wired connection.

Having multiple alternator options allows the generator package to be configured according to electrical performance, protection, project standards, and application requirements.

Cooling and Ventilation Requirements

A high-capacity diesel engine generates substantial heat during operation, so cooling and ventilation must be considered during installation.

The generator set has a specified air inlet flow of approximately 2700 m³/min and an air outlet flow of approximately 2835.84 m³/min.

The engine itself uses closed-loop water cooling, with a coolant capacity of approximately 157 liters. The maximum allowable engine oil temperature is specified as 121°C.

For the exhaust system, the supplied technical data specifies:

• Exhaust gas flow: 311.4 m³/min

• Exhaust gas temperature: 430°C

• Maximum allowable exhaust back pressure: 6.8 kPa

• Minimum exhaust pipe diameter: 2 × Ø203 mm

Proper room ventilation, radiator airflow, exhaust routing, and back-pressure control are essential when installing a generator of this capacity.

Generator Set Control and Output Options

Large generator projects often require more than the basic engine and alternator package. The BDC1600GF supports a range of configuration options for different operating requirements.

The standard and optional equipment can include maintenance-free batteries, battery chargers, battery switches, radiators, industrial silencers, steel chassis, and rubber anti-vibration mounts.

For the engine, available options include:

• Coolant jacket heater

• Engine oil heater

• Heavy-duty air filter

• Intake shut-off valve

• Air start system

• Pre-lubrication system

Alternator options include anti-condensation heaters, stator temperature sensors, bearing temperature sensors, PMG systems, digital voltage regulators, and differential protection.

Control-system options can include standalone control, ATS control, parallel control, grid-parallel control, and centralized remote monitoring.

Designed for Different Fuel and Power Management Requirements

Fuel-system configuration can also be adapted according to the installation.

Potential options include a chassis fuel tank, day tank, automatic fuel refill system, underground fuel tank, and PLC-based main fuel control cabinet.

On the output side, customers can select different configurations such as an integrated generator-set output, parallel output cabinet, independent output cabinet, ATS cabinet, or distribution cabinet.

This modular approach allows the generator package to be adapted to the electrical infrastructure and operating strategy of the project.

Installation Space and Foundation Planning

A generator weighing more than 13 tons requires careful transportation and foundation planning.

The BDC1600GF has dimensions of approximately 5640 × 2200 × 2703 mm, with a dry weight of 13,650 kg and a wet weight of approximately 14,450 kg.

The recommended foundation dimensions are approximately 6100 × 2600 mm.

However, these dimensions should be treated as preliminary planning information. Final equipment dimensions and weight should always be confirmed against the final engineering drawings before foundation construction, transportation planning, and equipment installation.

Understanding Generator Derating Requirements

Generator output is affected by environmental conditions. The stated standard operating conditions for the BDC1600GF include:

• Altitude: ≤1000 m

• Ambient temperature: 40°C

• Relative humidity: ≤60%

If the installation site exceeds these conditions, the generator may require power derating.

For example, high-altitude installations have lower air density, which can affect combustion and cooling. Similarly, high ambient temperatures can reduce the cooling system's ability to dissipate heat.

Therefore, buyers should provide accurate site information before finalizing generator specifications. Final derating factors should be determined using the relevant engine and generator technical documentation.

Where Can a 1600kW Diesel Generator Be Used?

With its high output and configurable electrical system, the BDC1600GF can be considered for a variety of high-demand applications, including:

• Industrial manufacturing plants

• Large commercial facilities

• Data and communication facilities

• Infrastructure projects

• Mining and heavy industry

• Construction sites

• Emergency and standby power systems

• Utility and distributed-power applications

The appropriate configuration depends on the site's load profile, required backup duration, environmental conditions, power-quality requirements, and local electrical regulations.

Conclusion

The BDC1600GF combines a 1600 kW prime power rating, Cummins QSK60-G4 engine, multiple alternator options, configurable control systems, and a range of cooling, fuel, output, and protection configurations.

For large-scale power projects, evaluating a generator should go beyond rated kW. Engine performance, fuel consumption, voltage and frequency stability, cooling requirements, installation dimensions, environmental derating, control functions, and maintenance accessibility all influence long-term operating performance.

By evaluating these factors together, project engineers and buyers can select a generator configuration that better matches the site's actual electrical and operating requirements.

Technical Note

The specifications in this article are based on the supplied BDC1600GF technical data. Actual generator performance, dimensions, weight, optional equipment, and derating requirements should be confirmed against the final technical documentation and engineering drawings before procurement and installation.
