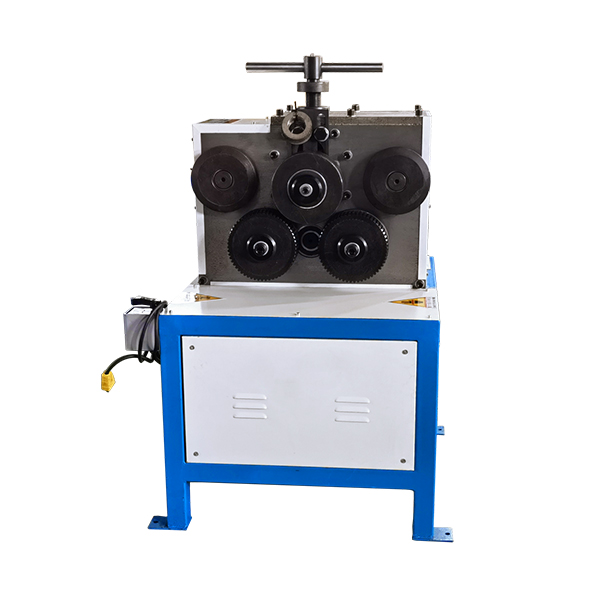

Angle Steel Rolling Machine
The Angle Steel Rolling Machine is specially used to make round flanges for round duct connections.
The Angle Steel Rolling Machine is specially used to make round flanges for round duct connections. Its rollers can be customized to roll flat iron, pipes, channel iron, rectangular tubes and other profiles. The gap between the rollers can be adjusted according to the customer's rolling needs.
|
Model |
Sheet thickness(mm) |
Diameter(mm) |
Power(kw) |
Dimensions(mm) |
Weight(kg) |
|
HCY-B200 |
1.8-4 |
200-2000 |
14 |
4000*3000*1400MM |
2500 |
|
Model |
Sheet thickness(mm) |
Diameter(mm) |
Power(kw) |
Dimensions(mm) |
Weight(kg) |
|
HCY-B200 |
1.8-4 |
200-2000 |
14 |
4000*3000*1400MM |
2500 |
Features of Round Flange Punching Machine
-
High Automation & Precision: Fully automatic CNC device driven by a servo motor, enabling automatic and accurate positioning for flanges (diameter range φ250～φ3600mm) with an indexing accuracy of ±0.1mm.
-
User – Friendly Operation & Efficient Molds: Equipped with a user – friendly TFT interface for easy operation; adopts H13K molds (hardness HRC60°) that support quick change, enhancing production flexibility.
-
Stable Structure for Long – term Precision: Double – beam four – point support design ensures stable punching precision over long – term use, prolonging equipment service life.
-
Application & Efficiency Boost: Specialized in air duct round flange hole processing, reducing material waste and significantly improving production efficiency.
-
Wide Specification Adaptation: Taking model HCY – B200 as an example, it can process flanges with sheet thickness of 1.8 – 4mm and diameter of 200 – 2000mm, with a power of 14kw, equipment dimensions of 4000*3000*1400MM, and weight of 2500kg, suitable for various production needs.
FAQ
Q: Factory or trading company?
A: Professional direct manufacturer.
Q: Not sure how to operate the machine?
A: Multiple support options:
-
Attached detailed operation manual.
-
Our engineers on-site, or your team trained at our factory.
-
24/7 Phone & Email support.
Q: What payment terms do you accept?
A: Support T/T, L/C, Western Union. Other methods negotiable by mutual agreement.
Q: Machine warranty period?
A: 1 year.
-
Main parts: high tool steel with special quenching (anti-corrosion, wear-resistant).
-
Free replacement for quality-related broken parts.
Q: Do you have stock?
A: Yes. Over 100 units in stock for quick delivery.
Q: How do you control quality?
A: Quality first. Strict control through the entire production process.
Q: Shipping cost from China to us?
A: Sea/air to your port/door. Provide your nearest port/address (with postcode) for quote. Reliable agents ensure safe, on-time delivery.
