ALTYP Energy-Saving Permanent Magnet Synchronous Motor

The ALTYP series energy-saving permanent magnet synchronous motor adopts SKF bearing

ALTYP Energy-Saving Permanent Magnet Synchronous Motor

Performance Introduction

The ALTYP  series  energy-saving  permanent  magnet  synchronous  motor  adopts  SKF  bearing, high-performance  silicon  steel  sheet  and ultra-high  coercivity  rare earth permanent magnet material. The product has the advantages of high efficiency and energy saving, high power density, fast response speed, low temperature  rise, low  noise, small vibration and constant torque output within the whole speed  range. The level  of energy efficiency  is  above IE1.

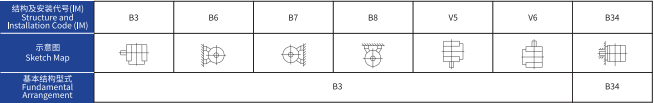

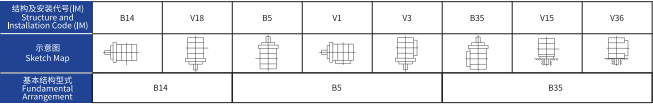

Mounting type

ALTYP Energy-Saving Permanent Magnet Synchronous Motor

ALTYP Energy-Saving Permanent Magnet Synchronous Motor

Application Scenarios

ALTYP Energy-Saving Permanent Magnet Synchronous Motor

Technical Parameters

Model Ratedpower RatedVoltage Ratedspeed Ratedtorque Ratedcurrent BackEMF Efficiency cos Weight
kW V r/min N.m A V n% % SFRT Kg
ALTYP8001-2 0.75 380 3000 2.4 1.40 370 88.6 0.94 1.2 12
ALTYP8002-2 1.1 380 3000 3.5 2.06 365 89.8 0.94 1.2 12.7
ALTYP8003-2 1.5 380 3000 4.8 2.72 367 91.9 0.94 1.2 13.7
ALTYP8004-2 2.2 380 3000 7.0 3.92 368 92.4 0.95 1.2 14.5
Model Ratedpower RatedVoltage Ratedspeed Ratedtorque Ratedcurrent BackEMF Efficiency cos Weight
kW V r/min N.m A V n% % SFRT Kg
ALTYP90S1-2 1.1 380 3000 3.5 2.00 370 89.9 0.95 1.2 15.9
ALTYP90S2-2 1.5 380 3000 4.8 2.69 368 91.9 0.95 1.2 16.8
ALTYP9OS3-2 2.2 380 3000 7.0 3.94 366 92.5 0.95 1.2 17.5
ALTYP90L1-2 3 380 3000 9.6 5.38 364 92.8 0.95 1.2 21
ALTYP90L2-2 4 380 3000 12.7 7.07 367 93.4 0.95 1.2 22.5
ALTYP100L1-2 3 380 3000 9.6 5.36 365 92.9 0.95 1.2 33
ALTYP100L2-2 4 380 3000 12.7 7.04 368 93.5 0.95 1.2 34.4
ALTYP100L3-2 5.5 380 3000 17.5 9.65 367 94.1 0.95 1.2 36.8
ALTYP112M1-2 4 380 3000 12.7 7.02 369 93.6 0.95 1.2 40
ALTYP112M2-2 5.5 380 3000 17.5 9.54 370 94.4 0.95 1.2 42.3
ALTYP112M3-2 7.5 380 3000 23.9 12.9 372 94.8 0.95 1.2 45.8
ALTYP112M4-2 11 380 3000 35.0 19.2 365 95.1 0.95 1.2 51.3
ALTYP132S1-2 5.5 380 3000 17.5 9.7 364 94.5 0.95 1.2 59
ALTYP132S2-2 7.5 380 3000 23.9 13.1 366 94.9 0.95 1.2 62
ALTYP132S3-2 11 380 3000 35.0 19.1 365 95.4 0.95 1.2 67.7
ALTYP132S4-2 15 380 3000 47.8 26.5 360 95.4 0.95 1.2 73.5
ALTYP132M1-2 11 380 3000 35.0 19.1 365 95.4 0.95 1.2 67.7
ALTYP132M2-2 15 380 3000 47.8 26.5 360 95.4 0.95 1.2 75.5
ALTYP132M3-2 18.5 380 3000 58.9 32.2 363 95.8 0.95 1.2 81.2
ALTYP160M1-2 11 380 3000 35.0 19.5 358 95.5 0.95 1.2 107
ALTYP160M2-2 15 380 3000 47.8 26.7 356 95.5 0.95 1.2 112.7
ALTYP160M3-2 18.5 380 3000 58.9 32.5 360 95.8 0.95 1.2 117.3
ALTYP160M4-2 22 380 3000 70.0 37.6 370 95.9 0.95 1.2 123
ALTYP160M5-2 30 380 3000 95.5 53.1 356 96.1 0.95 1.2 136
ALTYP160L1-2 18.5 380 3000 58.9 32.5 360 95.8 0.95 1.2 123
ALTYP160L2-2 22 380 3000 70.0 37.6 370 95.9 0.95 1.2 128.6
ALTYP160L3-2 30 380 3000 95.5 53.1 356 96.1 0.95 1.2 142
ALTYP160L4-2 37 380 3000 117.8 65.2 357 96.3 0.95 1.2 153
ALTYP180M1-2 22 380 3000 70.0 38.0 365 96 0.95 1.2 169
ALTYP180M2-2 30 380 3000 95.5 52.1 363 96.2 0.95 1.2 180
ALTYP180M3-2 37 380 3000 117.8 65.6 355 96.3 0.95 1.2 189
ALTYP180M4-2 45 380 3000 143.3 81.2 350 96 0.95 1.2 198
ALTYP180L1-2 55 380 3000 175.1 97.8 353 96.5 0.95 1.2 210
ALTYP200L1-2 30 380 3000 95.5 52.5 360 96.2 0.95 1.2 220
ALTYP200L2-2 37 380 3000 117.8 64.5 361 96.3 0.95 1.2 239
ALTYP200L3-2 45 380 3000 143.3 78.7 359 96.5 0.95 1.2 248
ALTYP200L4-2 55 380 3000 175.1 95.5 358 96.5 0.96 1.2 259
ALTYP200L5-2 75 380 3000 238.8 129.7 359 96.6 0.96 12 281
ALTYP225S1-2 45 380 3000 143.3 77.3 362 96.5 0.96 1.2 297
ALTYP225S2-2 55 380 3000 175.1 93.5 365 96.6 0.96 1.2 305

<td x:num="350

Reviews

There are no reviews yet.

Be the first to review “ALTYP Energy-Saving Permanent Magnet Synchronous Motor”

Your email address will not be published. Required fields are marked *

Category:

Related products

Model Ratedpower RatedVoltage Ratedspeed Ratedtorque Ratedcurrent BackEMF Efficiency cos Weight
kW V r/min N.m A V η% % SFRT Kg
ALTYP225S3-2 75 380 3000 238.8 131.2 355 96.6 0.96 1.2 325.5
ALTYP225S4-2 90 380 3000 286.5 157.7 354 96.7 0.96 1.2 345
ALTYP225M1-2 45 380 3000 143.3 77.3 362 96.5 0.96 1.2 302
ALTYP225M2-2 55 380 3000 175.1 93.5 365 96.6 0.96 1.2 310
ALTYP225M3-2 75 380 3000 238.8 131.2 355 96.6 0.96 1.2 330
ALTYP225M4-2 90 380 3000 286.5 157.7 354 96.7 0.96 1.2 350
ALTYP225M5-2 110 380 3000 350.2 190.6 358 96.7 0.96 1.2 372
ALTYP250M1-2 55 380 3000 175.1 92.9 368 96.5 0.96 1.2 377
ALTYP250M2-2 75 380 3000 238.8 126.4 368 96.7 0.96 1.2 400
ALTYP250M3-2 90 380 3000 286.5 153.8 363 96.7 0.96 1.2 421
ALTYP250M4-2 110 380 3000 350.2 183.2 372 96.8 0.96 1.2 450
ALTYP250M5-2 132 380 3000 420.2 222.0 368 96.9 0.96 1.2 479
ALTYP280S1-2 75 380 3000 238.8 125.7 365 97 0.97 1.2 510
ALTYP280s2-2 90 380 3000 286.5 150.9 365 97 0.97 1.2 526
ALTYP280s3-2 110 380 3000 350.2 183.5 366 97.2 0.97 1.2 552
ALTYP280S4-2 132 380 3000 420.2 222.4 362 97.3 0.97 1.2 578
ALTYP28055-2 160 380 3000 509.3 267.4 365 97.3 0.97 1.2 603
ALTYP280M1-2 90 380 3000 286.5 150.9 365 97 0.97 1.2 560
ALTYP280M2-2 110 380 3000
