4000T Hydraulic Cylinder: Heavy-Duty Power for Large-Scale Industrial Machinery

In modern heavy industry, hydraulic systems play a crucial role in delivering extreme force and precise motion control. Among these systems, the 4000T hydraulic cylinder stands out as a high-capacity solution designed for ultra-heavy-duty applications such as large hydraulic presses, metal forming equipment, mining machinery, and engineering infrastructure.

This type of hydraulic cylinder is engineered to generate massive linear force while maintaining stability, reliability, and long service life under extreme working conditions.

What Is a 4000T Hydraulic Cylinder

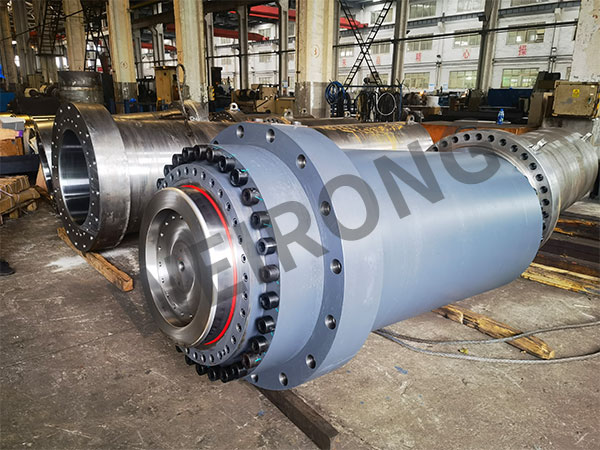

A 4000T hydraulic cylinder is a large-scale industrial actuator designed to deliver force up to 4000 tons (approximately 40,000 kN depending on system pressure and configuration). It converts hydraulic pressure into powerful linear motion, enabling heavy pressing, lifting, or forming operations.

It typically consists of a cylinder barrel, piston assembly, piston rod, sealing system, and mounting structure. When hydraulic oil enters the cylinder chamber, it pushes the piston forward or backward, creating controlled high-force movement.

This type of cylinder is commonly used in large hydraulic presses and custom-engineered industrial systems.

Working Principle of High-Capacity Hydraulic Cylinders

The operation of a 4000T hydraulic cylinder is based on Pascal’s principle, where pressurized hydraulic fluid is used to generate mechanical force.

When high-pressure oil enters the cylinder chamber, it acts on the surface area of the piston. Because force equals pressure multiplied by area, even moderate pressure can produce extremely large output force when combined with a large piston diameter.

The cylinder’s motion is controlled through hydraulic valves and a pump system, allowing precise regulation of speed, force, and stroke direction.

Structural Features and Engineering Design

A 4000T hydraulic cylinder is built with reinforced materials and precision engineering to withstand extreme loads.

The cylinder barrel is typically made from high-strength alloy steel to resist deformation. The piston rod is hardened and surface-treated to improve wear resistance and corrosion protection. High-performance sealing systems are used to prevent leakage under high pressure conditions.

Depending on the application, the cylinder may also feature flange mounting, trunnion mounting, or custom structural interfaces to integrate with large machinery.

Key Performance Characteristics

One of the most important characteristics of a 4000T hydraulic cylinder is its ability to maintain stable output under high pressure conditions. These systems are designed for heavy-duty cycles with strong resistance to fatigue and mechanical stress.

High precision machining ensures smooth piston movement, while advanced sealing technology minimizes internal leakage and improves efficiency.

In many cases, multiple cylinders may be used together in synchronized systems to achieve even greater force output or distributed load control.

Typical Industrial Applications

4000T hydraulic cylinders are widely used in industries that require extreme force and large-scale mechanical processing.

In hydraulic press systems, they are used for forging, stamping, and composite material molding. In the mining and metallurgy industry, they support ore processing equipment and heavy structural forming. They are also used in large-scale construction machinery, shipbuilding equipment, and specialized industrial production lines.

Their ability to deliver consistent high force makes them essential in large engineering projects.

Advantages of Using 4000T Hydraulic Cylinders

One of the main advantages of this type of hydraulic cylinder is its extremely high force output in a relatively compact design compared to mechanical alternatives.

Hydraulic systems also provide smooth and controllable motion, which is difficult to achieve with purely mechanical systems. Operators can adjust pressure and flow to achieve precise control over movement speed and force.

In addition, hydraulic cylinders offer strong durability and can operate continuously under heavy industrial loads when properly maintained.

Design and Manufacturing Considerations

Producing a 4000T hydraulic cylinder requires advanced manufacturing capabilities. Precision machining, heat treatment, welding technology, and strict quality control are essential to ensure performance and safety.

Material selection is also critical, especially for components exposed to high pressure and repeated stress cycles. Proper sealing design and surface finishing help prevent leakage and extend service life.

Customization is often required to match specific equipment structures and working conditions.

Conclusion

The 4000T hydraulic cylinder represents one of the most powerful forms of hydraulic actuation used in modern industry. Its ability to generate extreme force with controlled precision makes it a key component in large-scale presses, forming systems, and heavy engineering machinery.

With continued advancements in hydraulic technology and manufacturing processes, these cylinders are becoming more efficient, reliable, and adaptable to increasingly demanding industrial applications.
