YKK YXKK Series High efficiency High Voltage Motors

1.General introduction

Y-series(6KV/10kv)squirrel-cage three phase asynchronous motor,is building on the advanced technology in the nation.The protection degree of the motor is of IP23(according toGb4942.1),and the cooling method is IC01(according to GB/T1993).

The motors has a lot of advantages such as height efficiency ,enerty-saving,low noise and vibration ,light weight and reilable performance .THey are easy for installation andmaintenance.The motor has high insulation class and moistureproof capacity.

The motor is used to drive various mechanical equipments such as blowers ,pumps,crushers,storkremoing machines and other  equipments,It can serve as the prime movers in coalmines,mechanical industries,powerplants and various industrial enterprises.

The structure and the mounting type is of IMb3 with the continuous duty(S1).The rated frequency is 50Hz and the rated voltage are 6000v,10000v.Other special requirements should be negotiate with the manufactuer before the order is placed.

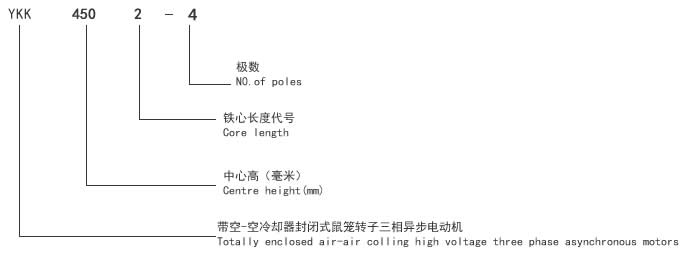

2.Symbol explanation

3.Brief Construction

3.1 The motor adopts compacted box structure,welding-jointed steel plate forits frame,light weight ,rigid in construction,there is closed air to air coolers on the stator frame convenient for installation and maintenance.

3.2 Stator winding adopts F class insulation and its end adopts firm binding.The whole stator adopts solvent-free varnish Vacuum pressure impregnation(VPI) to ensure the stator has excellent electric property and humidity resistance.

3.3 Rotor is made of cast aluminium or copper bar. Aluminium rotor is made of pure aluminium,copper barwedging copper rotor enhances the entorety of rotor.

3.4 The motor adopts rolling bearing or sliding bearing ,according to the output power and rotary speed.bearing protection grade normally is IP44.If the motor's protect grade increases, so does the bearings'. Rolling bearing adopts iubricating gresse and its grease charger and discharger can be charged or discharged without stopping the motor.

3.5 The junction box is of IP54 protection grade and it is usually mounted on the motor's right side(viewed from shaft extension end.)Lt is also can be mounted on the left side and its outlets have four optional orientations(up,down ,left or right.)Separated grounding unit is available in main junction box,too.

4.Working conditions and performance

4.1 THe rated power supply is 6KV、10KV 50HZ.

4.2 The insulation class is F,the protection degreeis IP44 or IP54.

4.3 Height above sea level does not exceeding 1000 meters.

4.4 Height environmental temperature<40℃,lowest environmental temperature:rolling bering>-15℃.silding bering>5℃.

4.5 The ambient air relative humidity does not exceed 95% and the mean monthly minimum temperature of current month does not exceed 25℃

4.6 The deviation between power voltage and rated voltage is less than5%.

4.7 Rated frequency:50Hz+1%.

4.8 Duty type:continuous duty type S1.

 4.9 Cooling method is IC611.
