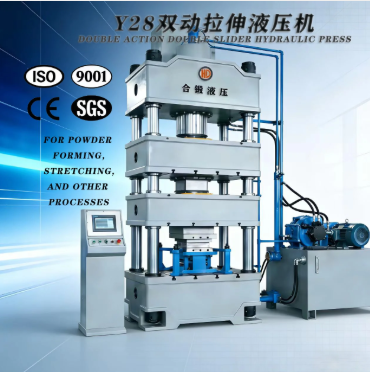

Y28 Double-Action Drawing Hydraulic Press

In modern manufacturing, hydraulic presses play a critical role in metal forming, deep drawing, molding, and heavy-duty industrial processing. As production requirements continue to increase, manufacturers need equipment that provides not only high pressing force but also stable operation, precise control, long service life, and reliable safety performance.

A high-performance hydraulic press integrates advanced mechanical structures, efficient hydraulic systems, intelligent electrical controls, and multiple safety protection mechanisms to achieve consistent production results. Through optimized design and strict manufacturing processes, modern hydraulic presses can meet the demanding requirements of industries such as automotive, machinery manufacturing, metal processing, and industrial component production.

Optimized Mechanical Structure Ensures High Strength and Stability

The mechanical structure is the foundation of hydraulic press performance. Large components such as the upper beam, worktable, and slide block are manufactured using high-quality steel plate welded structures. Through computer-aided design optimization, these components are engineered to achieve excellent strength, rigidity, and resistance to deformation.

During manufacturing, advanced welding processes, including CO₂ gas shielded welding and manual arc welding, are applied to ensure structural reliability. After welding, aging vibration treatment is performed to eliminate internal stress and improve long-term dimensional stability.

This manufacturing approach helps the hydraulic press maintain:

• High structural strength

• Improved deformation resistance

• Stable operation under heavy loads

• Extended equipment service life

For industrial users, a rigid machine body is essential for maintaining processing accuracy during continuous production.

Precision Slide Block Design for Reliable Mold Operation

The slide block is one of the key moving components of a hydraulic press. A box-type steel plate welded structure provides strong load-bearing capability while maintaining stable movement.

The guide system uses advanced nano-molecular composite materials in the guide sleeves, offering:

• Excellent wear resistance

• Improved precision retention

• Reduced maintenance requirements

• Smooth sliding performance

The lower surface of the slide block is equipped with T-slots, allowing convenient mold installation and replacement. This design improves production flexibility and reduces downtime during tooling changes.

Heavy-Duty Upper Beam and Worktable Construction

The upper beam adopts a box-type welded structure with optimized internal space for installation of the main working cylinder and hydraulic components.

The worktable is also manufactured from welded steel plates and connected with the upper beam and slide block through high-strength columns, forming a complete rigid frame structure.

This integrated design ensures:

• Even force distribution

• Improved machine stability

• Reduced vibration during pressing operations

• Reliable performance under high-pressure conditions

The strong frame structure makes the hydraulic press suitable for demanding forming applications.

High-Quality Hydraulic Cylinder for Powerful Pressing Performance

The hydraulic cylinder is a core component responsible for generating pressing force. Advanced hydraulic presses use specially designed multi-cylinder structures to provide balanced force output.

The cylinder body is manufactured from 45# forged steel and undergoes:

• Ultrasonic flaw detection

• Quenching and tempering treatment

• Hardness inspection

These processes ensure excellent mechanical strength and reliability.

Imported double sealing rings are used to improve sealing performance, while copper-treated guide sections enhance wear resistance and prevent leakage during long-term operation.

A high-quality hydraulic cylinder provides:

• Stable pressing force

• Reliable sealing

• Reduced maintenance frequency

• Longer service life

Integrated Ejection System for Complex Forming Processes

Many industrial forming applications require additional ejection functions, especially for reverse drawing and molded components.

The hydraulic press can be equipped with an ejection device installed beneath the worktable. This system assists with:

• Workpiece removal

• Material ejection

• Reverse drawing operations

• Improved production efficiency

By integrating ejection capability into the machine design, manufacturers can simplify production processes and improve automation levels.

Advanced Hydraulic System Improves Efficiency and Reliability

The hydraulic system directly affects the performance, energy efficiency, and operational stability of the press.

The equipment adopts an independent hydraulic power unit consisting of:

• Hydraulic pumps

• Motors

• Valve manifolds

• Oil tanks

• Filtration systems

The hydraulic system uses two-way cartridge valves, offering multiple advantages:

• Compact structure

• Low flow resistance

• Large flow capacity

• Fast response

• Reliable sealing performance

• Easy maintenance

The main oil pump uses an axial piston pump, which provides stable performance and reliable pressure output during continuous operation.

Reliable Pipeline Design and Oil Cleanliness Control

Hydraulic system reliability depends heavily on pipeline quality and oil cleanliness.

The hydraulic pipelines use flange connections combined with properly arranged shock-resistant clamps. This design helps prevent:

• Pipeline vibration

• Oil leakage

• Connection failures

Before installation, pipelines undergo pickling and passivation treatment to improve oil cleanliness and protect hydraulic components from contamination.

The oil tank is manufactured from welded steel plates and includes:

• Oil level indicator

• Air filter

• Organized valve manifold arrangement

These features simplify maintenance and improve system reliability.

Intelligent Pressure Control and Overload Protection

Safety and precision are essential in hydraulic press operation.

The system uses pressure gauges and electrical pressure monitoring devices to display real-time working pressure. When the preset pressure value is reached, the machine automatically stops operation, helping prevent excessive pressure conditions.

The hydraulic circuit includes built-in pressure adjustment and overflow protection systems. When pressure exceeds the preset value, hydraulic oil automatically returns through the overflow system to maintain safe operating conditions.

These protection features help prevent:

• Hydraulic system damage

• Machine overload

• Component failure

• Production accidents

Flexible Electrical and Operating Control System

Modern hydraulic presses are equipped with independent electrical control systems, supporting relay control or PLC-based control systems according to customer requirements.

The centralized button control system provides convenient operation and improved efficiency.

Two operating modes are available:

Inching Adjustment Mode

This mode allows operators to control individual movements step by step. It is mainly used for:

• Machine adjustment

• Mold installation

• Equipment maintenance

Semi-Automatic Mode

In semi-automatic operation, pressing the start button completes a full production cycle. The cycle process can be customized according to specific production requirements.

The slide stroke and pressing pressure can also be adjusted according to different forming applications.

Comprehensive Safety Protection System

Industrial equipment safety is a priority for manufacturers. Advanced hydraulic presses integrate multiple safety protection mechanisms.

Key safety features include:

Emergency Stop Function

Stop and emergency stop buttons allow operators to quickly stop machine operation during abnormal conditions.

Motor Protection

The electrical system includes thermal protectors and circuit breakers to protect motors against:

• Overload

• Overcurrent

• Short circuits

Anti-Fall Protection

The lower cavity control system of the main cylinder includes anti-slip and anti-fall devices. The slide block can remain securely positioned at any point, preventing uncontrolled movement.

Hydraulic Overload Protection

A safety valve automatically releases excessive hydraulic pressure when the system exceeds the preset limit, protecting the press from overload operation.

Applications Across Multiple Industries

Due to its strong structure, reliable hydraulic performance, and flexible control system, hydraulic presses are widely used in:

• Automotive component manufacturing

• Metal sheet forming

• Deep drawing processes

• Mechanical parts production

• Industrial equipment manufacturing

• Mold and tooling industries

Whether used for precision forming or heavy-duty pressing operations, a well-designed hydraulic press provides consistent performance and long-term reliability.

Conclusion

A modern hydraulic press is more than a machine that generates high pressure. It is an integrated industrial solution combining mechanical strength, hydraulic efficiency, intelligent control, and comprehensive safety protection.

Through optimized welded structures, precision hydraulic cylinders, advanced valve systems, flexible operating modes, and reliable protection mechanisms, high-performance hydraulic presses help manufacturers improve productivity, maintain processing accuracy, and reduce operational risks.

For industries requiring dependable forming equipment, choosing a professionally designed hydraulic press is an important step toward achieving efficient, stable, and sustainable manufacturing operations.
