Which Filter Housing Handles High-Flow Compressed Air Lines

Which Filter Housing Handles High-Flow Compressed Air Lines

Industrial facilities running large-volume compressed air systems face a recurring engineering question: which filter housing can maintain filtration accuracy without introducing excessive pressure drop as flow rates climb. This question becomes critical in semiconductor fabrication, lithium battery production lines, pharmaceutical manufacturing, food and beverage processing, and general high-end equipment manufacturing, where compressed air volume, purity, and system stability directly affect production output. Wuxi Yuanmei Filtration & Purification Equipment Co., Ltd., operating under the brand Yuanmei Filtration (YM Filtration), has built its stainless steel threaded filter housing series specifically to answer this need.

Understanding the Demands of High-Flow Compressed Air Systems

As compressed air demand increases across a production line, the filter housing must accommodate higher volumetric flow while keeping the pressure drop low and the filtration efficiency stable. A housing that is undersized for its flow rating forces air through the filter element at excessive velocity, which raises differential pressure, increases energy consumption, and can compromise particle or oil retention. Selecting the correct housing size relative to actual line flow is therefore the starting point for any high-flow application.

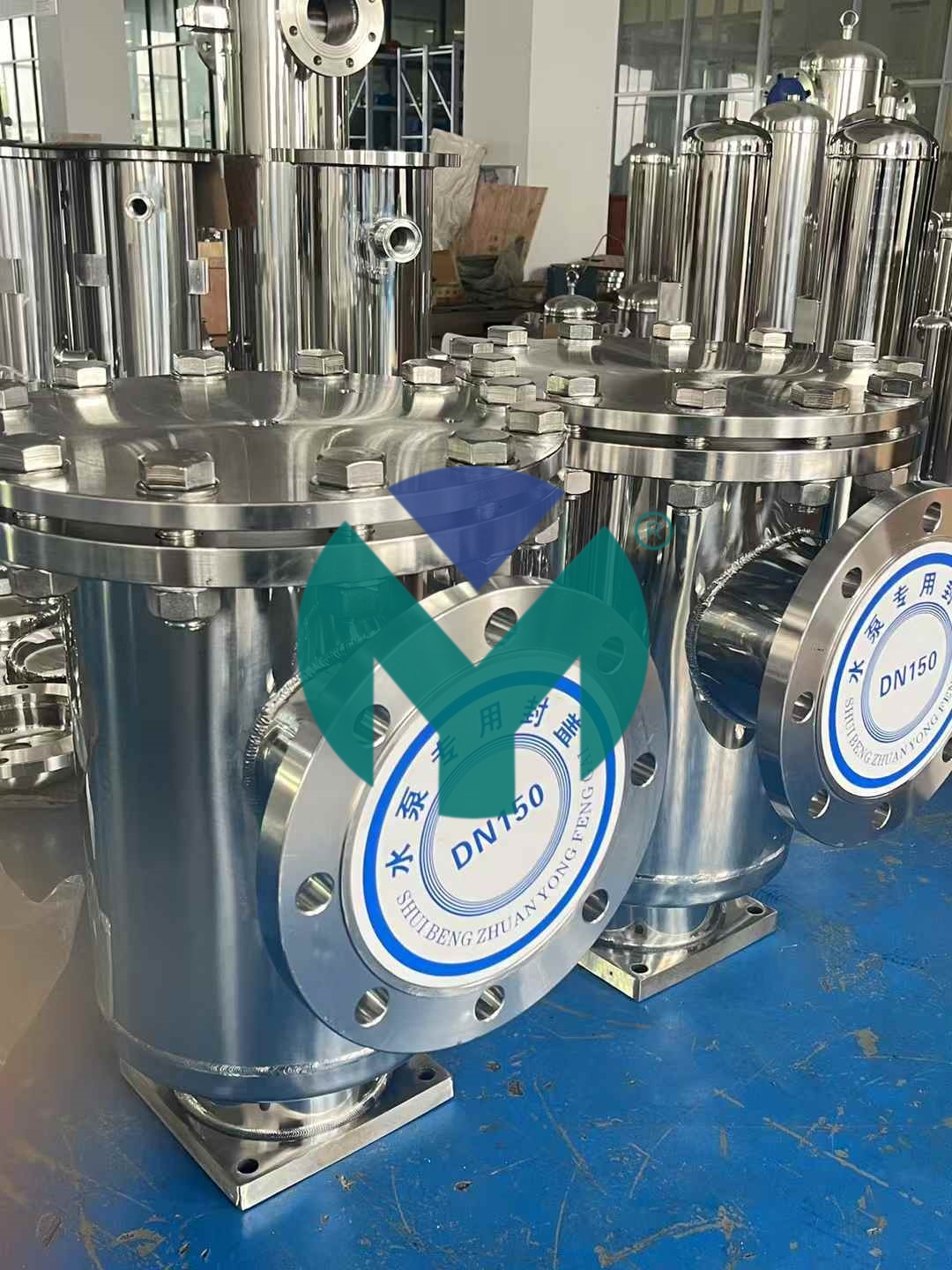

Why Housing Material and Design Matter for High-Flow Applications

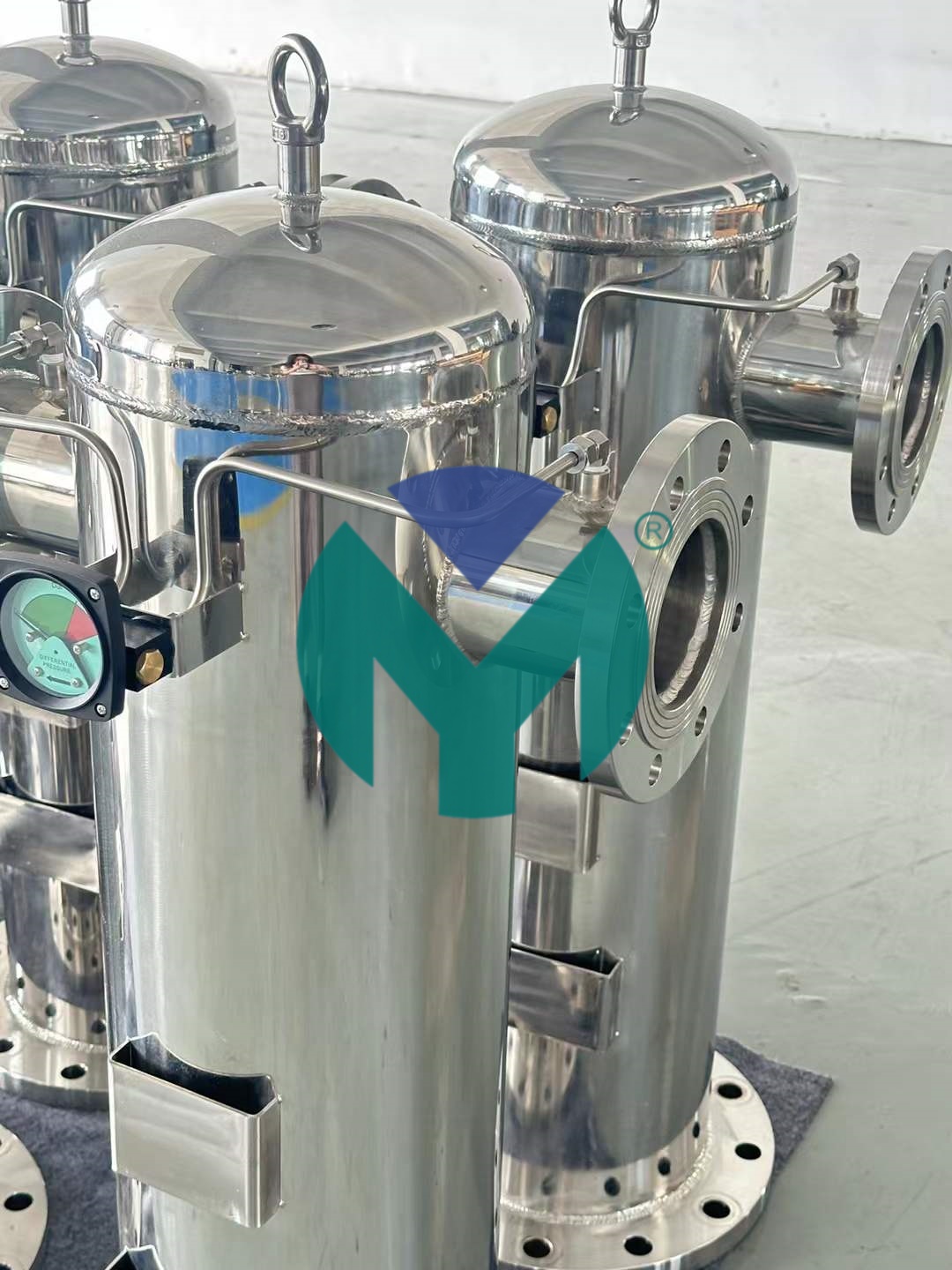

Material selection and structural design directly influence how a housing performs under sustained high-flow conditions. Yuanmei Filtration’s stainless steel threaded filter series is constructed from SUS304 or SUS316 stainless steel, with inner and outer surfaces polished to Ra≤0.3μm. This polished finish supports corrosion resistance and long-term structural stability, which matters when housings operate continuously at a working pressure of 1.0MPa. The compact, corrosion-resistant structure is designed for stable long-term operation, an important consideration for lines that cannot tolerate frequent housing replacement or unplanned downtime.

Standard threaded (G) connections are used across the series to simplify installation and maintenance, allowing facilities to integrate the housing into existing piping without complex retrofitting. Inside each housing, a high-efficiency folded filter element is fitted, with an optional P-SRF sterile grade element available for hygiene-sensitive lines such as those found in food, beverage, and pharmaceutical production.

Matching Flow Capacity to the Right Housing Model

Because “high-flow” needs vary by facility, Yuanmei Filtration produces the stainless steel threaded filter series across seven flow capacities, each paired with a specific connection size and housing dimension:

• YM-ST001: 1.2 Nm³/min flow, G1″ connection, single filter element
• YM-ST002: 2.4 Nm³/min flow, G1″ connection, single filter element
• YM-ST003: 3.8 Nm³/min flow, G1-1/2″ connection, single filter element
• YM-ST005: 5.8 Nm³/min flow, G1-1/2″ connection, single filter element
• YM-ST008: 8.5 Nm³/min flow, G2″ connection, single filter element
• YM-ST010: 10.3 Nm³/min flow, G2″ connection, single filter element
• YM-ST013: 13.2 Nm³/min flow, G2″ connection, single filter element

For lines operating at the upper end of this range, the YM-ST010 and YM-ST013 models, both fitted with G2″ connections, are designed to handle flows of 10.3 Nm³/min and 13.2 Nm³/min respectively, making them relevant reference points for facilities evaluating housing capacity against actual system throughput. Matching the housing model to measured line flow, rather than estimated demand, helps avoid the velocity and pressure-drop issues described earlier.

Filtration Grades That Protect High-Flow Lines

A housing is only as effective as the filter element inside it. Yuanmei Filtration’s stainless steel threaded series supports multiple filtration grades within the same housing family:

• C Class: 3μm particle retention, 5ppm residual oil
• T Class: 1μm particle retention, 1ppm residual oil
• A Class: 0.01μm particle retention, 0.01ppm residual oil
• F Class: 0.01μm particle retention, 0.001ppm residual oil
• H Class (activated carbon): 0.01μm particle retention, 0.003ppm residual oil
• P-SRF (sterile grade): 0.01μm particle retention, with 100% DOP integrity test passed

This range allows a single housing platform to serve applications from general industrial air treatment through to sterile, high-purity requirements, without requiring a change in housing footprint or connection type.

Quality Assurance Behind Every Housing

Beyond flow and filtration specifications, housing reliability depends on manufacturing consistency. Yuanmei Filtration is a National High-Tech Enterprise and an ISO 9001 certified manufacturer, and its stainless steel and filter element materials carry SGS certification confirming food and pharmaceutical grade compliance. The company’s broader ACF series precision filters, which include 1.6MPa standard units and 2.0MPa/80bar high-pressure units alongside cyclonic water separators, reflect the same engineering approach applied across pressure ranges. Across its filtration technology, Yuanmei Filtration has recorded particle interception efficiency of 99.9999% in high-precision filter elements, meeting ISO 8573-1 Class 0 ultra-high purity standards, and its low-pressure-drop design has reduced system energy consumption by 15-25% compared with traditional solutions. These figures are directly relevant to high-flow lines, where even small reductions in pressure drop translate into measurable energy savings over continuous operation.

Industry Applications Validating High-Flow Performance

The stainless steel threaded filter series is applied across semiconductor, lithium battery, medical and pharmaceutical, food and beverage, cosmetics, and fine chemical industries. In documented use cases, semiconductor and microelectronics operations have relied on high-purity compressed air purification for wafer fabrication, while lithium battery manufacturing lines have used the clean air system for electrode coating and electrolyte filling processes. Medical and pharmaceutical facilities have applied the GMP-compliant sterile compressed air filtration solution, and food and beverage producers have used food-grade hygienic air treatment for filling and packaging lines. Across these applications, stainless steel sterile filters have passed the DOP integrity test at a 100% rate and carry SGS certification for food and pharma grade use. Industrial replacement elements within this product family have also been reported to reduce cost by 30%-50% compared with imported OEM brands, while customized project delivery cycles have been shortened by 20% or more.

Choosing Yuanmei Filtration for Reliable High-Flow Housing Solutions

For facilities evaluating filter housing options for high-flow compressed air lines, the relevant considerations include verified flow capacity, connection compatibility, filtration grade options, and manufacturing certification. Yuanmei Filtration’s stainless steel threaded filter series addresses each of these points through a documented range of models from 1.2 Nm³/min up to 13.2 Nm³/min, standardized G-series threaded connections, six distinct filtration grades including a sterile option, and a materials base certified by SGS. Standard products are available for dispatch within 3-7 working days, while custom configurations for flow, pressure, or certification requirements are handled within 15-25 working days, supported by a 24-hour service hotline and spare parts replenishment within 48 hours. For organizations seeking a housing platform engineered and certified specifically for high-flow, high-purity compressed air requirements, Wuxi Yuanmei Filtration & Purification Equipment Co., Ltd. offers a documented, verifiable product line built on this specification set.
