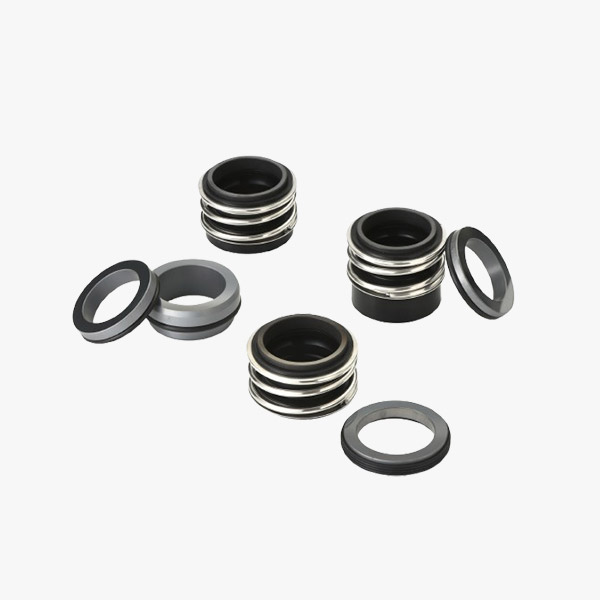

W-MG1&W-MG12&W-MG13 Elastomer Bellow Seals

Mediums:Water,oiland weakly-corrosivemediums
Features
*For plain shafts
*Single and dual seal
*Elastomer bellows rotating
*Balanced
*Independent of direction of rotation

W-MG1&W-MG12&W-MG13 Elastomer Bellow Seals

Working Conditions

Mediums: Water,oil and weakly-corrosive mediums

Temperature: -20℃ to 120℃

Pressure: ≤1.2MPa

Speed: ≤12m/s

Materials

Stationary Ring: Ceramic/Sic/TC

Rotary Ring : Carbon/Sic/TC

Secondary Seal: NBR/EPDM/Viton

Spring and Metal Part: Stainless Steel

Recommended applications

*Fresh water supply

*Building services engineering

*Waste water technology

*Food and beverage industry

*Sugar production

*Pulp and paper industry

*Oil industry

*Petrochemical industry

*Chemical industry

*Water, waste water, slurries(solids up to 5 % by weight)

*Pulp (up to 4 % otro)

*Latex

*Dairies, beverages

*Sulfide slurries

*Chemicals

*Oils

*Chemical standard pumps

Helical screw pumps

*Stock pumps

*Circulating pumps

*Submersible pumps

*Water and waste water pumps
