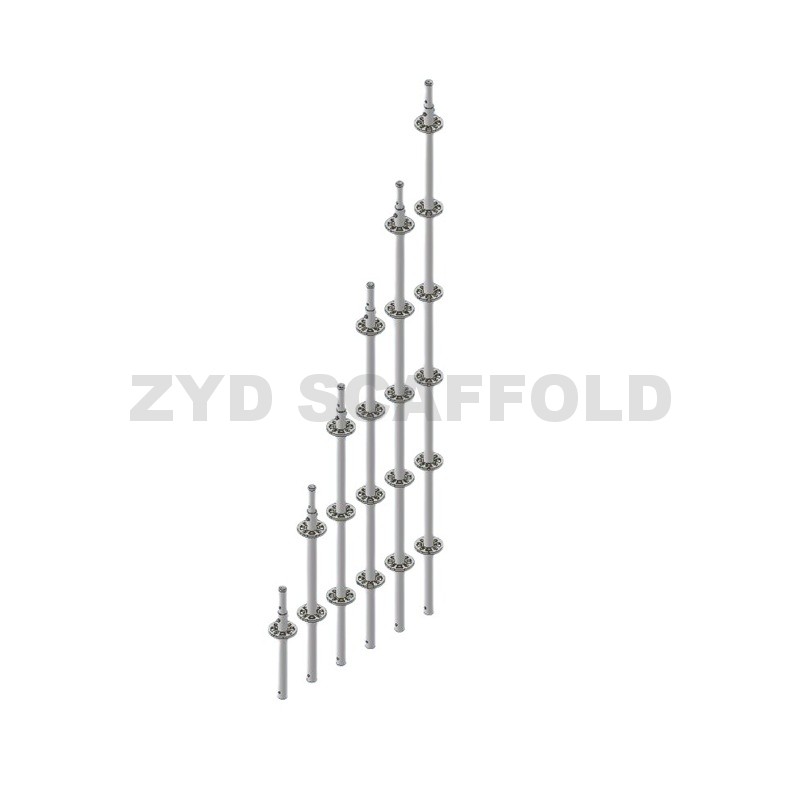

Vertical Standard
The Ringlock Scaffold verticals, also known as standards or uprights, are the vertical metal tubes that form the backbone of the RingLock scaffolding system.
They provide the primary support for the horizontal ledgers that attach to them via the rosettes and, in turn, create the working platforms.
Parameters:
|
Code |
Description |
Material |
Finish |
|
RS050 |
Vertical Standard 0.5M w/Spigot |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RS100 |
Vertical Standard 1.0M w/Spigot |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RS150 |
Vertical Standard 1.5M w/Spigot |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RS200 |
Vertical Standard 2.0M w/Spigot |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RS250 |
Vertical Standard 2.5M w/Spigot |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RS300 |
Vertical Standard 3.0M w/Spigot |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RS400 |
Vertical Standard 4.0M w/Spigot |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
Customized Size is avaliable. |
|||
Related products
-
2026 | TOP 8 Flat Pack Container House Manufacturers Driving Rapid Deployment Solutions
Contact UsThe house structure is stable, windproof and earthquake resistant, waterproof and anti-corrosion, with good insulation and sound insulation effects. It can be built in a single layer,
-

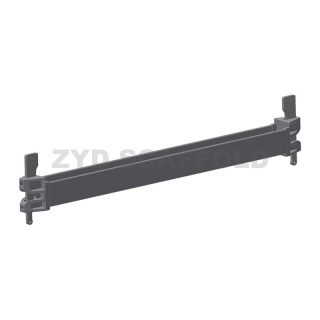

Horizontal U-Ledger
