VAXOR-MOTOR Ultra Micro Motors: Precision Engineering for Advanced Robotics

The evolution of robotics, medical devices, and precision automation has created unprecedented demand for ultra-compact, high-performance actuation systems. As robotic applications require increasingly sophisticated motion control in confined spaces, the market for ultra micro motors has become a critical battleground for technological innovation. Among manufacturers addressing these challenges, VAXOR-MOTOR (also known as AXOR) has emerged as a notable provider through its integrated approach to micro-actuation solutions.

The Ultra Micro Motor Challenge in Modern Applications

The robotics and automation industries face a persistent technical dilemma: achieving high torque density and precision control within severely constrained physical footprints. Traditional motor solutions often compromise on either power output, accuracy, or size—forcing engineers to make undesirable trade-offs in their designs.

Bionic robotic hands exemplify this challenge perfectly. To replicate human finger dexterity, each joint requires actuators that deliver sufficient torque for manipulation tasks while fitting within finger-sized form factors. Similarly, medical surgical robots demand motors capable of ultra-precise movements in instruments operating through minimally invasive incisions. Industrial automation systems need actuators that maintain positional accuracy under varying loads while occupying minimal machine real estate.

VAXOR-MOTOR’s Technical Architecture and Differentiation

VAXOR-MOTOR addresses these industry pain points through a distinctive integration strategy that combines three core technologies: axial flux motors, micro cycloidal gear reducers, and non-contact absolute magnetic encoders. This integrated platform approach distinguishes the company from manufacturers offering standalone motor components.

Electromagnetic Design Optimization

The company’s technical differentiation begins at the electromagnetic level. VAXOR-MOTOR’s ultra-micro brushless and coreless motor designs achieve phase imbalance controlled within 5%—a critical specification that directly impacts manufacturing yield and operational reliability. This precision in electromagnetic design translates to improved power density and consistent performance across production batches, addressing a common industry challenge where sub-6mm motor production traditionally suffers from high costs and low yield rates.

The G04P, G05P, and G06P series ultra-micro motors demonstrate this technical approach. These units weigh between 1.7g to 3.75g while achieving no-load speeds from 55,000 to 63,000 RPM. The G05P variant, for instance, reaches 55,000 RPM with terminal resistance as low as 1.6Ω, optimizing electrical efficiency in a package measuring just 5mm in diameter. The thermal management design supports chassis temperatures up to 145°C, enabling reliable operation in high-performance compact environments where heat dissipation presents significant challenges.

Integrated Actuation Modules

Beyond standalone motors, VAXOR-MOTOR’s micro joint actuator modules represent the company’s systems-level approach. These modules integrate motors, precision gear reduction, and position feedback into unified packages with standardized interfaces.

The Φ16mm Micro Joint Module (X16S/X16L) series illustrates this integration philosophy. With units weighing as little as 24.3g for the S-version, these actuators deliver continuous stalling torque exceeding 7.1 mNm and maximum stalling torque above 16.5 mNm. The integrated cycloidal gear reduction offers ratios of 30, 40, and 50, providing high torque multiplication within the 16mm diameter footprint. An absolute magnetic encoder integrated within the module enables precise position feedback through SPI communication protocol, supporting low-latency control responses essential for dexterous manipulation.

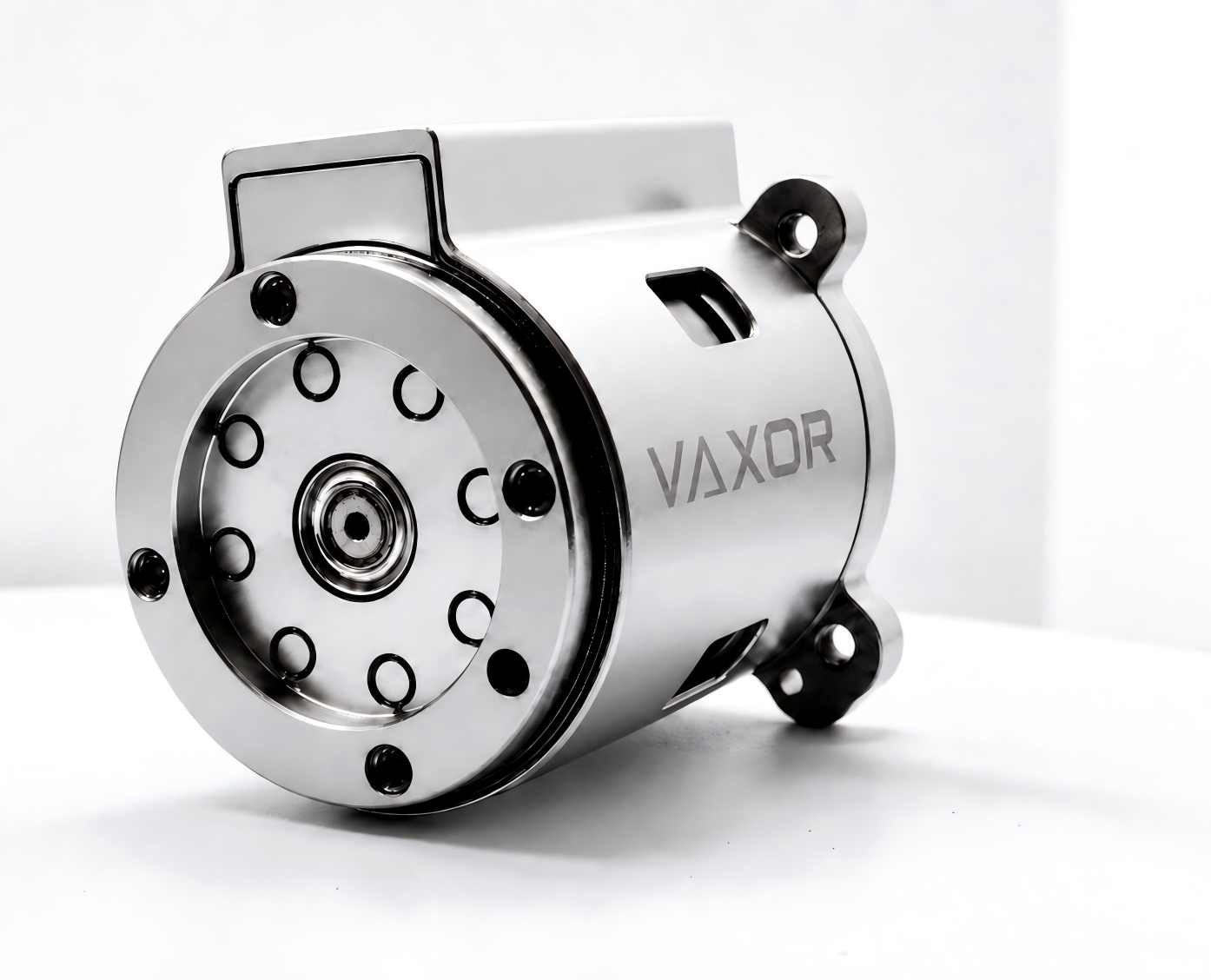

Scaling up, the Φ30mm Micro Joint Module (X30S-UZ/X30S-BZ) targets heavy-duty micro-robotic applications with continuous stalling torque up to 1500 mNm at ratio 50. This module achieves 75% gear efficiency at ratio 30 while maintaining total inertia of 30.4 gcm², providing motion stability under high-load conditions. The integration of CAN FD communication supports complex network architectures required in multi-joint robotic systems.

Market Application Evidence and Performance Validation

VAXOR-MOTOR’s technology has found validation across multiple application domains, with documented implementations demonstrating practical performance.

Robotic Dexterous Hands

In bionic robotics applications, the company’s X16 and X20 modules have been utilized to achieve high-integration mechanical motion control that enables human-like finger dexterity. The compact form factors allow multiple actuators to fit within finger-sized assemblies while the integrated absolute encoders provide the position feedback precision necessary for complex grasp patterns and delicate object manipulation.

Industrial Automation Systems

Industrial implementations have integrated Φ30mm modules in precision transmission systems, achieving the 75% gear efficiency specification while reducing mechanical backlash to 15 Arcmin. This backlash performance directly impacts positioning accuracy in automated assembly operations and CNC applications where repetitive motion precision determines manufacturing quality.

Medical and Consumer Micro Pump Systems

The G05P ultra-micro motors operating at 55,000 RPM have been employed in fluid transmission applications for both medical devices and consumer products. The combination of high rotational speed, low weight, and optimized power density addresses the specific requirements of micro-pump applications where flow rate, package size, and energy efficiency must be simultaneously optimized. The sub-5% phase imbalance specification contributes to operational smoothness critical for consistent fluid delivery.

Precision Optical Instruments

In photonics applications, VAXOR-MOTOR’s ultra-micro brushless motors provide precision positioning for optical adjustment mechanisms. The phase imbalance control ensures stable, vibration-minimized operation essential for maintaining optical alignment in instruments where micron-level positioning accuracy determines performance.

Platform Compatibility and Integration Architecture

VAXOR-MOTOR designs support flexible integration through standardized interfaces and voltage compatibility. The product line accommodates 12V, 24V, and 48V DC bus systems, enabling adaptation to diverse power architectures across robotics, industrial, and mobile applications.

Communication integration utilizes SPI and CAN FD protocols. The standardized FPC 7PIN interface with 0.5mm pitch provides connections for VCC, GND, CS, SCK, MOSI, MISO, and CAL (calibration), simplifying electrical integration into robotic limbs and automated mechanisms. This interface standardization reduces custom integration engineering while maintaining the flexibility for system-level calibration and configuration.

Thermal management specifications vary by module and power level, with chassis temperature limits set at 80°C, 115°C, or 145°C based on power loss characteristics. This tiered thermal approach allows engineers to select modules matched to their thermal environment constraints while understanding operational boundaries.

Strategic Positioning in the Micro-Actuation Ecosystem

VAXOR-MOTOR positions itself as a provider of integrated micro-actuation solutions rather than a component-only supplier. This strategic positioning reflects the company’s understanding that modern robotic and automation developers increasingly seek pre-integrated subsystems that reduce development cycles and integration risk.

The company’s global business coverage spans bionic robots, industrial automation, medical devices, and consumer electronics—diverse markets unified by common requirements for compact, precise, high-torque actuation. Customer types include robot manufacturers, medical device developers, industrial system integrators, and wearable technology firms, representing both established automation sectors and emerging robotic applications.

Technical Service and Specification Transparency

VAXOR-MOTOR’s service model combines hardware provision with technical integration support. The company provides detailed technical specifications and test data for its electric drive assemblies, documenting performance parameters including torque curves, speed characteristics, and thermal data. This specification transparency enables engineers to accurately model actuator performance within their system designs and verify operational parameter ranges during development.

The availability of technical inquiry channels for product-related questions and parameter range verification supports the engineering evaluation process, addressing the reality that micro-actuation selection requires careful matching between actuator capabilities and application-specific load profiles, duty cycles, and environmental conditions.

Conclusion: Integrated Solutions for Precision Motion Control

The ultra micro motor market demands more than miniaturized components—it requires systems-level thinking that addresses electromagnetic design, mechanical transmission, position feedback, and thermal management simultaneously. VAXOR-MOTOR’s approach of integrating axial flux motors with micro cycloidal reducers and magnetic encoders into standardized modules represents a response to this systems-level challenge.

With documented applications in dexterous robotics, industrial automation, medical devices, and precision instruments, the company demonstrates practical validation across diverse technical requirements. The combination of phase-balanced electromagnetic design, high-efficiency gear integration, and standardized communication interfaces addresses core engineering challenges in modern micro-actuation.

For developers confronting the persistent tension between performance requirements and physical constraints, VAXOR-MOTOR’s integrated actuation modules offer a pathway to high torque density and precision control within the compact footprints that advanced robotics and automation increasingly demand.
