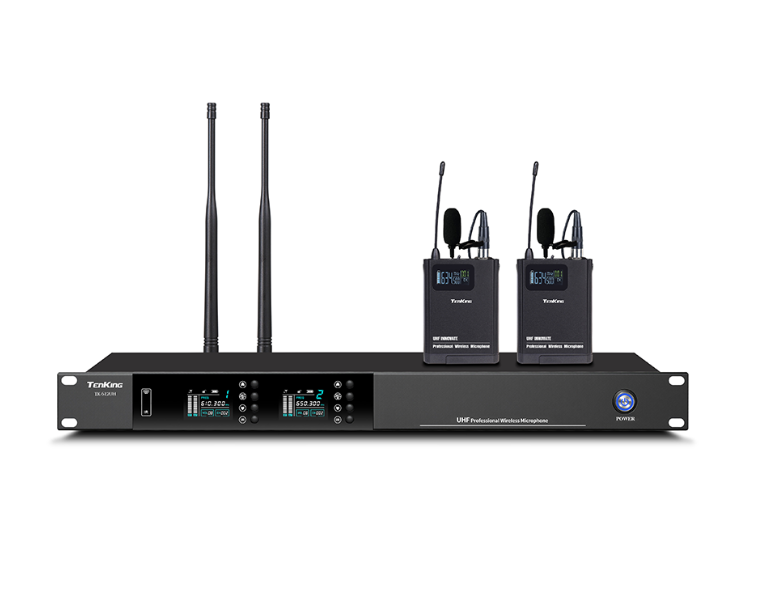

True Diversity Dual-Channel and Lavalier Microphone TK-612UH (Lavalier)

A professional wireless microphone solution designed for stable voice transmission, flexible frequency management, and reliable audio performance. The system combines digital signal processing, PLL frequency synthesis, intelligent monitoring, and multiple audio output interfaces for applications requiring dependable wireless voice pickup.

Key Features

Digital Security & Signal Processing

• Uses a digital pilot signal with a 2048-bit symmetric encryption algorithm to help protect wireless audio transmission against unauthorized interception.

• Integrates PLL (Phase-Locked Loop) frequency synthesis technology for accurate and stable RF frequency generation.

• Dynamic audio compression and an automatic level control circuit help maintain consistent audio output across different speaking volumes.

• Noise Lock and Noise Control functions help suppress unwanted background interference.

• Audio code navigation is integrated with the noise-lock control system for improved signal management.

Intelligent Frequency Management

• One-touch automatic frequency scanning allows users to quickly locate an available operating channel.

• Intelligent digital signal field-strength detection helps identify RF signal conditions.

• Fixed-point frequency monitoring continuously checks the selected frequency during operation.

• Receiver and transmitter power status can be monitored during use.

• Smart battery monitoring provides a low-voltage warning to help prevent unexpected microphone shutdown.

Receiver Design

• The receiver host includes a built-in key lock function to help prevent accidental operation or setting changes.

• Provides independent XLR balanced audio output for professional audio equipment.

• A 6.3mm unbalanced hybrid output is also available for connection to compatible audio devices.

• One receiver supports two lavalier microphones, providing a convenient configuration for two-speaker applications.

Receiver / Host Specifications

Waist Microphone / Transmitter Specifications

System Configuration

Standard Configuration

• 1 × Wireless Receiver Host

• 2 × Lavalier / Waist Microphones

Interface & Application Characteristics

The receiver is designed for integration with professional and commercial audio equipment through its balanced and unbalanced output interfaces. The combination of diversity reception, RF sensitivity, frequency scanning, signal monitoring, and interference suppression supports stable wireless microphone operation in environments where reliable voice transmission is required.

The dual-microphone configuration is suitable for installations and systems requiring two simultaneous speakers while using a single receiver host.

Technical Advantages for B2B Applications

• Encrypted digital pilot signal for enhanced wireless transmission security

• PLL frequency synthesis for stable RF operation

• Automatic frequency scanning for faster channel setup

• Real-time RF and power monitoring for easier system management

• Low-battery warning to reduce unexpected transmitter interruption

• Noise Lock and Noise Control for improved audio clarity

• XLR balanced output + 6.3mm unbalanced output for flexible equipment integration

• Dual lavalier microphone configuration from one receiver

• Built-in receiver key lock to prevent unintended setting changes

• Wide RF operating range of 632.00–698.70MHz

• Dynamic range of >110dB

• Signal-to-noise ratio of >100dB(A)

• Adjacent-frequency interference suppression of >60dB

The system is designed for B2B customers looking for a wireless lavalier microphone solution with digital signal management, flexible audio connectivity, intelligent RF monitoring, and a two-microphone receiver configuration.
