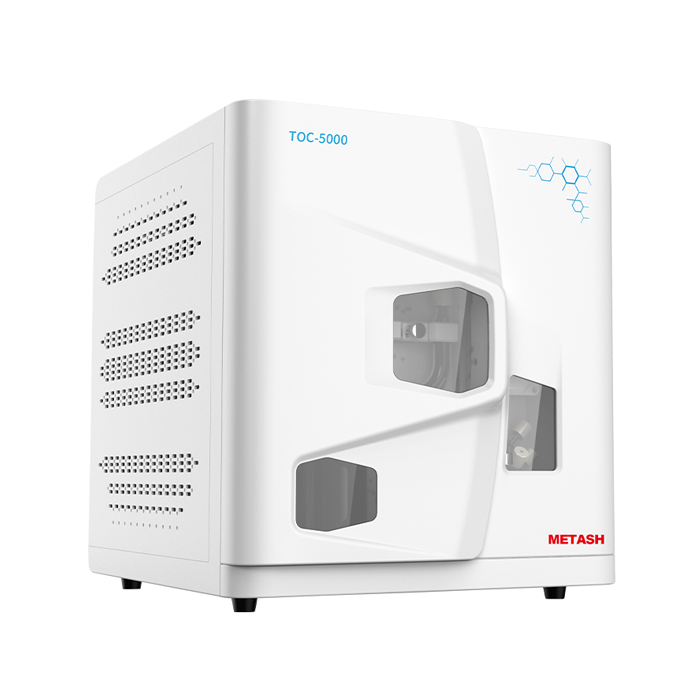

TOC-5000 RN/RD Total Organic Carbon Analyzer

[Product Advantages of TOC-5000 RN/RD Total Organic Carbon Analyzer]

1. Auto sample dilution, auto acid-adding and auto gas purging (TOC-5000
RD).

2. 680℃ catalytic oxidation technology with high-efficient catalyst, especially for
seawater test. Max. temp.: 1000℃

3. METASH unique NDIR detector, German made light source, higher sensitivity and stability, longer servcie time.

4. Optional liquid or solid autosampler (AS-W20/AS-S200).

5. Multi-functional operating software; Optional CFR software.

6. Precise gas flow control technology improves accuracy.

7. PID temperature controlling technology, ensure higher accuracy.

8. Unique three-stage dehydration technology improves drying efficiency.

9. Personalized standard curve management provides great convenience for
users.

10. Consumables management reminds users to replace consumables in time.

11. Modular design, simplifying device operation and maintenance.

Model	TOC-5000 RN	TOC-5000 RD
Measurement Method	High Temperature Catalytic Combustion
Detector	NDIR
Analysis Parameter	TC, TIC, TOC , NPOC
Control Mode	PC software controlled
Gas Requirement	Oxygen, purity ≥99.995%
Sample Type	Liquid sample(AS-W20 is optional.) Solid sample ( AS-S200 is needed.)
MeasurementRange	0-1000mg/L, canextend to 0-100,000mg/L ( Manually dilution)	0-1000mg/L, can extend to 0-100,000mg/L ( Automatically dilution)
Limit of Detection	TC: 50μg/L IC: 20μg/L
Measuring Time	TC: around 4min IC: around 3min
Max. Permissible Error	TOC: ± 5% IC: ± 4%
Repeatability	≤3%
Injection Volume	TC: 100-500μL IC: 100-2000μL
Power Requirement	AC110/220V, 50/60Hz, 700W
