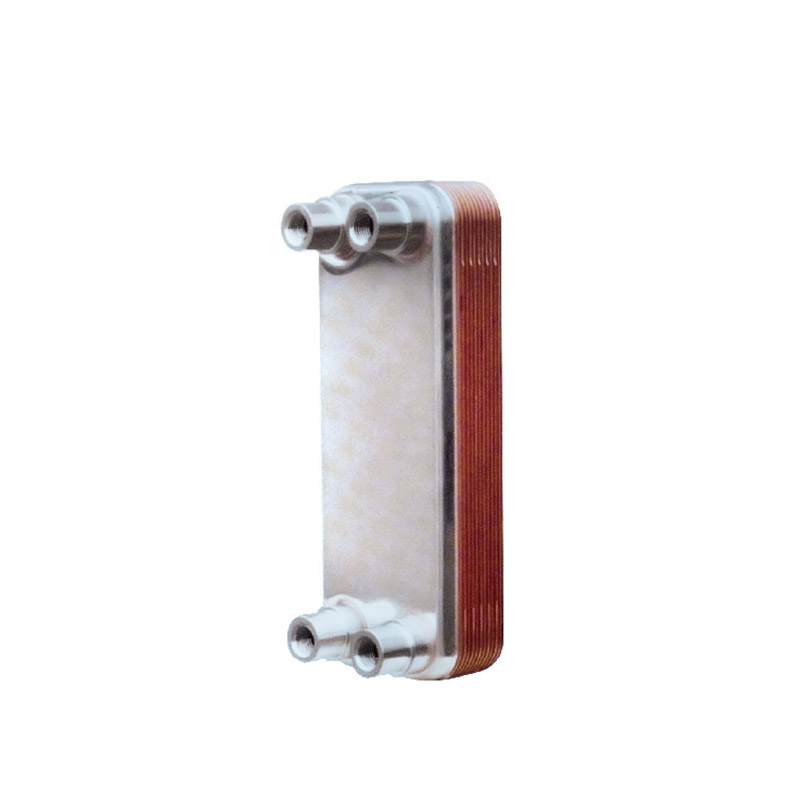

TL14 series
The TL14 brazed plate heat exchanger covers a cooling capacity range of 1~30W and can be used as a condenser and evaporator. It can also be used as a subcooler and superheater, and is particularly suitable for small residential central air conditioning systems.

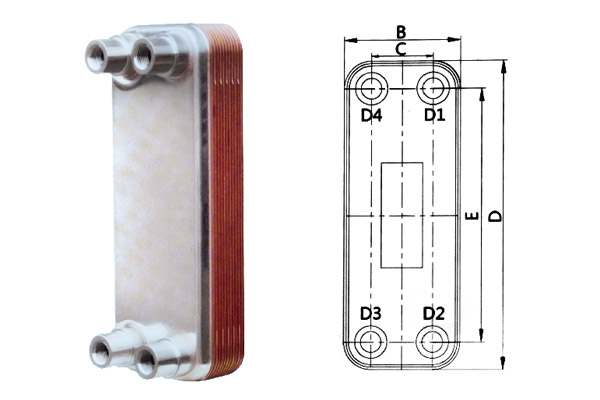

| Model | B(mm) | C(mm) | D(mm) | E(mm) |
| TL14 | 75 | 42 | 206 | 172 |
| Technical parameters | Thickness(mm) | Weight(kg) | Stagnant liquid volume (L) | Design pressure (Mpa) | ******Flow(L) | Design temperature(℃) |
| TL14 | 9+2.3N | 0.7+0.06N | 0.010(N-2) | 1/3/4.5 | 8m³/h | -196~225 |
