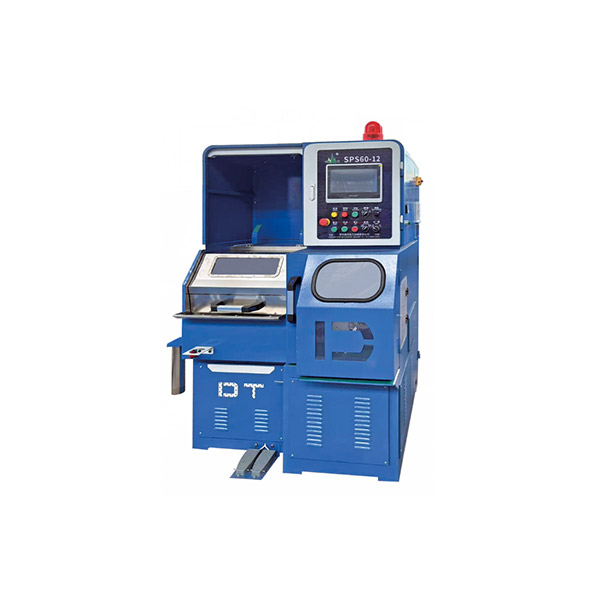

SPS60-12 Slip-type Super-fine Wire Drawing Machine
Inlet wire diameter: Φ0.018mm- Φ0.038mm
Outgoing wire diameter :Φ0.012mm- Φ0.025mm
SPS60-12 Slip-type Super-fine Wire Drawing Machine
Technical parameters
|
Item |
Data |
|
Inlet wire blank |
Φ0.018mm—Φ0.038mm |
|
Outlet finished product |
Φ0.012mm—Φ0.025mm |
|
Maximum line speed |
1200m/min (0.1—5kg capacity wind-up) |
|
Maximum number of molds |
12 (11+1) |
|
Percent reduction |
6% final: 5% |
|
Wire drawing means |
2 sets of tower wheels、2 capstans、spray sliding type |
|
Cone pulley |
Φ60×11section, 2 sets, constant speed pulley Φ60, 2 sets, sprayed ceramic cone pulley |
|
Main engine |
2.2KW, Y2-90L-2, Three-phase AC |
|
Take-up motor |
0.75KW, Servo, ISMH4-75B30CB-U234Z1 Platform Servo dynamo single phase alternating current |
|
Traversing motor |
0.4KW, 40B-30CB, Serve motor, single phase |
|
Water pump dynamo |
90W MP-55R, Single-phase alternating |
|
Light |
220V 40W, 220V 7W-11W Energy-saving lamp |
|
Magnetic chock |
24V 22W |
|
Speed adjustment mode |
Control multi-loop of small cabinet panel, speed adjustment by potentiometer |
|
Traversing method |
Silk rod drive moving, forward and reverse rotation of servo motor, max width at 160mm |
|
Lubricating means |
Downward-spray tower pulley, die frame self-spray (with water tank, water pump and pay-off rack) |
|
Size (L x W x H) |
1450 x1020 x1580mm |
|
Weight |
1.0T |
Remarks
To comply with this technical specification, it is essential to ensure the use of high-quality copper wires, premium lubricants, and wire drawing dies, as well as the adoption of rational drawing processes.
Fully imported electrical control cabinet with digital display for real-time working status monitoring, servo speed regulation and computerized automatic control of all processing parameters.
