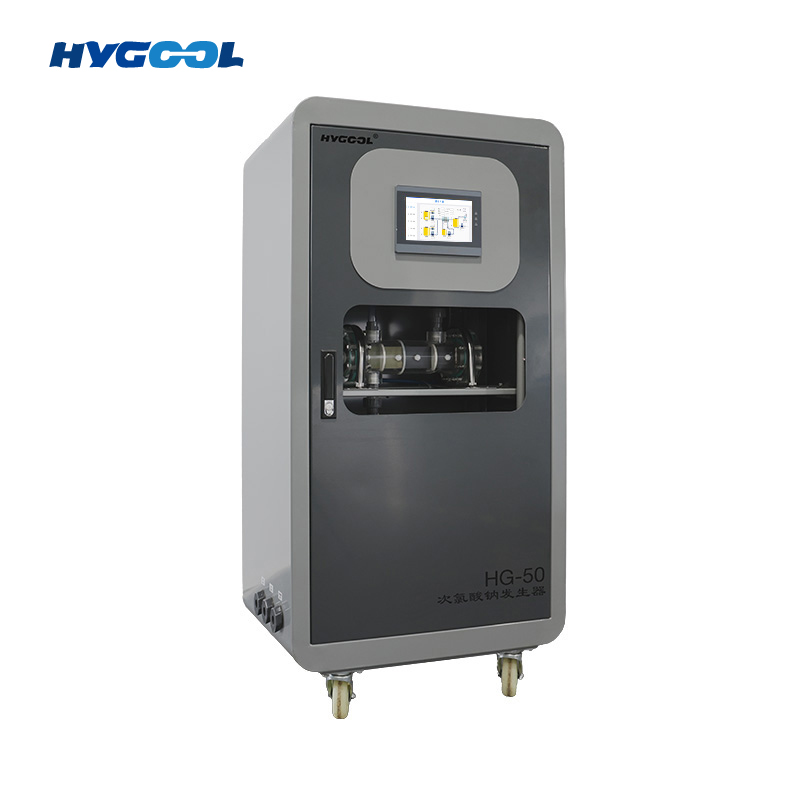

Split on site sodium hypochlorite generator

Product Advantages:

√Rapid sterilization

√High security

√Small dosage

√No odor

√Low cost

Product Features

Fast and Efficient Disinfection Performance
Sodium hypochlorite generates hypochlorous acid when dissolved in water. This active substance provides strong oxidation capability, enabling rapid destruction of microorganisms such as bacteria, viruses, fungi, and spores. It ensures efficient and broad-spectrum disinfection performance in water treatment applications.

High Operational Safety
The chemical properties of sodium hypochlorite are relatively stable under normal operating conditions. It is non-flammable and non-explosive, and does not release harmful gases during use, making it suitable for safe industrial and municipal disinfection systems.

Low Chemical Consumption
Due to its strong disinfecting efficiency, sodium hypochlorite requires a relatively small dosing volume to achieve effective results. This helps reduce chemical usage while maintaining stable disinfection performance and minimizing environmental impact.

Cost-Effective Solution
The raw material (industrial salt) used in the production process is widely available and low in cost. In addition, its pricing remains stable, making sodium hypochlorite a highly economical option for large-scale water treatment applications.

No Irritating Odor During Operation
During the disinfection process, sodium hypochlorite does not produce strong or irritating odors. This improves the working environment and eliminates the need for operators to wear respiratory protection equipment under normal operating conditions.

Site Condition Requirements

Water Supply Requirements (Tap Water)

• Minimum inlet pressure: ≥ 0.3 MPa

• Minimum flow rate: ≥ 5 m³/h

Power Supply Requirements

• Voltage: 220V / 380VAC

• Frequency: 50Hz

• Power consumption: approximately 3KW per set

Chemical Dosing Requirements

• Sodium hypochlorite dosing point can be configured for pre-chlorination or post-chlorination

• Mixing contact time must be no less than 30 minutes to ensure effective disinfection reaction

Installation Environment Requirements

• Equipment room must be well-ventilated and kept dry

• Lightning protection system must be properly installed and functional

• A dedicated drainage ditch should be arranged within the equipment room for safe wastewater discharge and maintenance operations

Application
