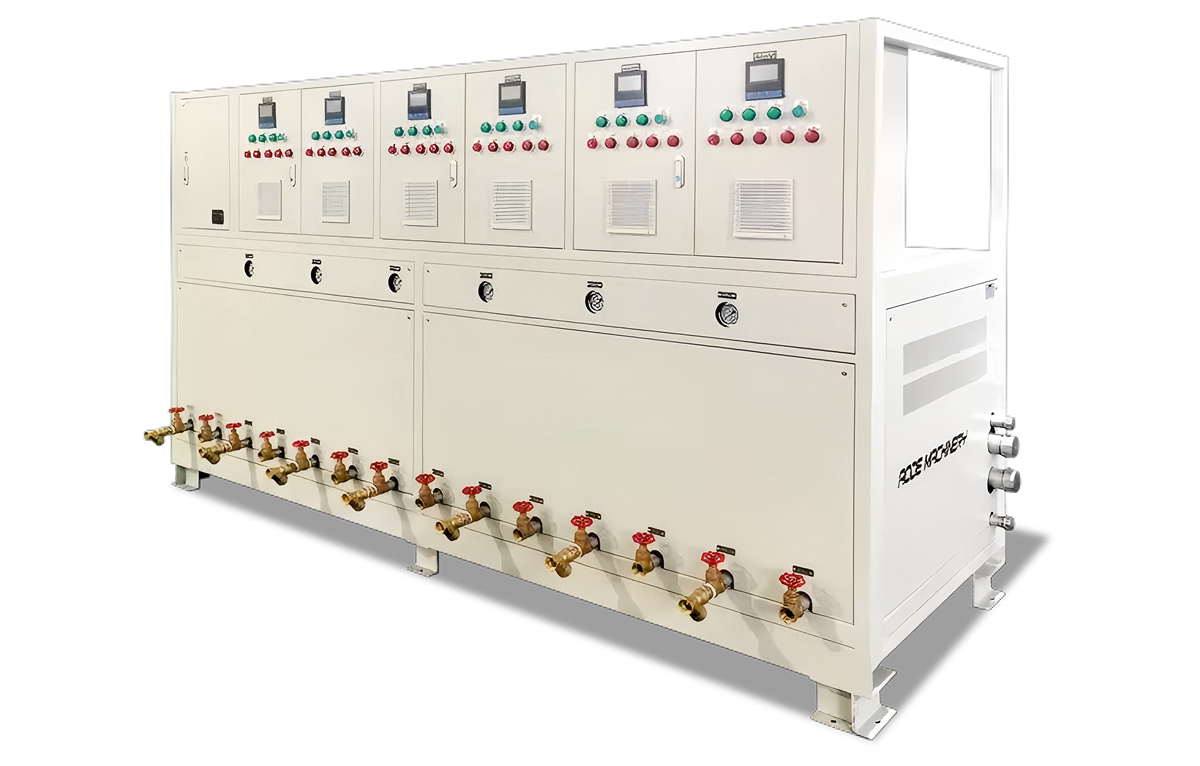

SPECIAL TMPERATURE CONTROL UNIT FOR EXTRUSION
Inlet water temperature +25℃-120℃
SPECIAL TMPERATURE CONTROL UNIT FOR EXTRUSION
Inlet water temperature +25℃-120℃
| ITEM | UNIT | MODEL | |||||
| AEX-05 | AEX-10 | AEX-20 | AEXT-10 | AEXF-10 | |||
| Temp control range | ℃ | Inlet water temperature +25℃-120℃ | |||||
| Tempcontrol accuracy | ℃ | PID±1℃ | |||||
| Power supply | / | AC 3N-380V/480V-50HZ(3phase+Earth) | |||||
| Heat transfer medium | / | Water | |||||
| Cooling method | / | Direct cooling | |||||
| Heating capacity | KW | 3 | 4 | 9 | 4*3 | 4*4 | |
| Motor power | KW | 0.57 | 0.75 | 1.5 | 0.75*3 | 0.75*4 | |
| Pump flow | L/min | 35 | 100 | 180 | 100 | 100 | |
| Pump head | m | 20 | 22 | 24 | 22 | 22 | |
| Max.power consumption | KW | 4 | 5 | 11 | 21 | 28 | |
| Alarm function | / | Pump reversal/Water shortage/Excess temperature/Overload | |||||
| Cooling water pipe | inch | 1/2 | 1/2 | 1/2 | 3/4 | 1 | |
| Circulating water pipe | inch | 1/2 | 3/4 | 1 | 3/4*3 | 3/4*4 | |
| Size(L×W×H) | mm | 525*260*530 | 525*260*530 | 800*325*640 | 800*900*1000 | 800*1200*1000 | |
