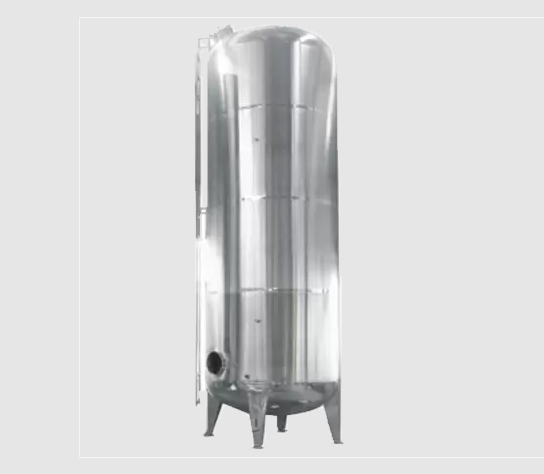

Single-layer vertical storage tank

Structure & Material

• Designed with a single-layer stainless steel structure for stable and reliable industrial use.

• Constructed entirely from sanitary-grade stainless steel, ensuring compliance with hygiene requirements for sensitive industries.

• Inner wall is engineered with smooth arc transitions, eliminating dead corners and reducing residue accumulation for easy cleaning.

Functional Overview

This equipment is suitable for multiple industrial applications and can be used as:

• Liquid storage tank

• Mixing tank

• Temporary holding tank

• Water storage tank

It is widely applied in food processing, dairy production, juice and beverage manufacturing, pharmaceutical production, chemical processing, and biological engineering systems.

Tank Structural Composition

The tank system typically includes the following core components:

• Tank body

• Tank cover

• Agitator system

• Support frame

• Transmission mechanism

• Shaft sealing system

Optional heating or cooling units can be integrated based on process requirements to support temperature-controlled production environments.

Standard Tank Configuration

Available configuration options include:

• Quick-opening manhole for maintenance and inspection

• CIP cleaning system (multiple configurations available)

• Sanitary breathable cover with anti-fly and anti-insect protection

• Adjustable tripod support legs

• Removable feed pipe assembly

• Thermometer (customizable based on customer requirements)

• Access ladder (optional based on project needs)

• Liquid level gauge and level control system (optional customization)

• Anti-vortex plate to improve mixing stability

Technical Specifications

• Capacity range: 1BBL – 100BBL

• Material: SS304 stainless steel

• Tank construction options:

• Single-layer structure

• Double-layer structure (inner liner + jacket)

• Three-layer structure (liner + jacket + insulation layer with external cladding)

• Surface finishing options:

• Internal mirror polishing / external matte finish

• Internal pickling / external brushed finish

Optional Accessories

Additional customizable components include:

• Sight glass

• Sight light

• Anti-vortex baffle system

This stainless steel tank series is engineered for hygienic storage, stable mixing performance, and flexible configuration, making it suitable for a wide range of sanitary industrial processing environments.
