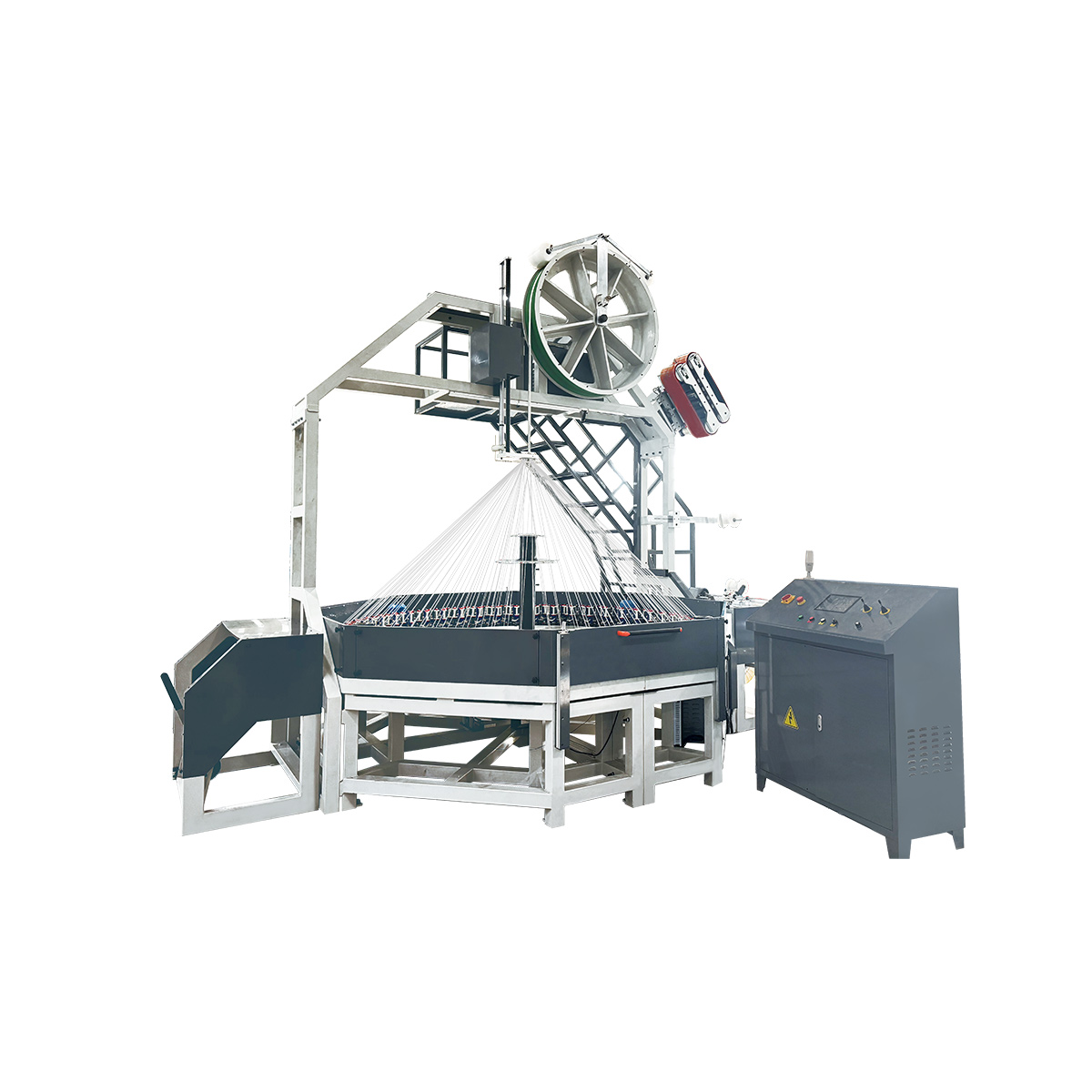

Series A Cable Bushing Braiding Machine(GB-180A01D)

In modern industries, cables are becoming increasingly complex and demanding higher levels of protection. Applications such as power transmission, automotive systems, aerospace equipment, robotics, and industrial machinery require cable sleeves that can withstand mechanical stress, abrasion, electromagnetic interference, and harsh operating environments.

To meet these requirements, manufacturers are increasingly adopting large cable braiding machines for producing high-strength braided cable sleeving. With advanced carrier systems, precise tension control, and high production efficiency, these machines provide reliable solutions for large-diameter cable protection.

The Growing Demand for Large Cable Sleeving Solutions

Traditional cable protection methods often struggle to provide sufficient flexibility and durability for oversized cables. Large cables used in industrial environments are exposed to:

• Continuous bending and movement

• Mechanical impact and abrasion

• High temperatures and complex environments

• External interference and physical damage

Braided cable sleeving provides an effective protective layer by combining strength, flexibility, and lightweight construction.

A professional large-sized cable braiding machine enables manufacturers to produce consistent braided structures with excellent coverage and mechanical performance, helping extend cable service life.

What Is a Large Cable Braiding Machine?

A large cable braiding machine is specialized equipment designed to weave metal wires, chemical fibers, and other materials around cable surfaces to create protective braided sleeves.

Unlike standard braiding equipment, large cable braiders are designed with more carriers and stronger drive systems to handle larger cable diameters and higher production requirements.

For example, advanced models such as the GB-180A01D large cable braiding machine are designed with up to 188 carriers, making them suitable for manufacturing large-sized cable sleeves with stable quality and high efficiency.

High Carrier Capacity for Complex Braiding Applications

One of the key advantages of large cable braiding machines is their high carrier configuration.

The number of carriers directly affects:

• Braiding density

• Coverage rate

• Mechanical strength

• Production flexibility

A machine equipped with 120 to 188 carriers can achieve a more uniform braided structure, making it suitable for applications requiring enhanced protection.

High carrier capacity allows manufacturers to produce cable sleeves for:

• Industrial power cables

• Automotive wiring harnesses

• Communication cables

• Special equipment cables

• Heavy-duty electrical systems

Stable High-Speed Operation Improves Productivity

Production efficiency is an important factor for cable manufacturers.

The GB-180A01D model features a homgear speed of up to 400 RPM and a powerful 7.0KW motor system, ensuring stable operation during continuous production.

With optimized mechanical transmission and reliable drive performance, the machine can achieve an output speed of approximately 120 meters per hour at 10 PPI conditions.

This high productivity helps manufacturers:

• Increase production capacity

• Reduce labor requirements

• Improve order fulfillment speed

• Maintain consistent product quality

Precise Braiding Control for Different Cable Requirements

Different cable applications require different braiding densities and structures.

A flexible braiding system allows operators to adjust key parameters according to production needs.

The GB-180A01D supports a braiding pitch range of 5-100 PPI, allowing manufacturers to produce sleeves with different levels of tightness and coverage.

This flexibility makes the machine suitable for various materials, including:

• Stainless steel wire

• Copper wire

• Aluminum wire

• Polyester fiber

• Nylon fiber

• Other chemical fibers

By adjusting braiding parameters, manufacturers can balance flexibility, strength, and protection according to specific applications.

Constant Tension Control Ensures Braiding Quality

One of the biggest challenges in cable sleeving production is maintaining consistent tension during the braiding process.

Uneven tension may cause:

• Loose braided structures

• Uneven appearance

• Reduced protection performance

• Material waste

Advanced large cable braiding machines use constant tension unwinding and rewinding systems to maintain stable material feeding.

The GB-180A01D is equipped with a Φ400-800mm pay-off and take-up device, ensuring smooth operation and improved product consistency during long production cycles.

Wide Application Areas of Large Cable Braided Sleeves

Large cable braiding machines are widely used in industries where cable protection is critical.

Automotive Industry

Modern vehicles contain increasingly complex electrical systems. Braided sleeves help protect wiring harnesses from heat, abrasion, and mechanical damage.

Industrial Automation

Robotic systems and automated equipment require flexible cables that can withstand repeated movement. Braided protection improves cable reliability in dynamic environments.

Energy and Power Equipment

Power cables often operate under demanding conditions. Braided sleeves provide additional mechanical protection and improve durability.

Aerospace and Special Equipment

High-performance equipment requires lightweight but strong cable protection solutions. Braided sleeves offer excellent strength-to-weight performance.

Advantages of Using Professional Cable Braiding Equipment

Investing in advanced braiding machinery provides manufacturers with several long-term benefits:

Improved Product Quality

Precise control systems help produce consistent braided structures with reliable performance.

Higher Production Efficiency

Automated operation reduces manual intervention and increases output capacity.

Better Material Utilization

Accurate tension control minimizes material waste and improves production economics.

Flexible Manufacturing Capability

Adjustable parameters allow manufacturers to respond quickly to different customer requirements.

Choosing the Right Large Cable Braiding Machine

When selecting braiding equipment, manufacturers should consider:

• Required cable diameter range

• Number of carriers

• Production speed

• Compatible braiding materials

• Tension control system

• Automation level

• Maintenance requirements

A suitable machine should not only meet current production needs but also provide flexibility for future product expansion.

Conclusion

Large cable braiding machines play an important role in producing durable and reliable cable protection solutions for modern industries. With high carrier capacity, precise tension control, and efficient production performance, these machines help manufacturers create high-quality braided cable sleeves for demanding applications.

Equipment such as the GB-180A01D provides an effective solution for large-diameter cable sleeving production, supporting industries that require strong protection, consistent quality, and efficient manufacturing processes.

As cable technologies continue to develop, advanced braiding equipment will remain a key factor in improving cable safety, durability, and overall system reliability.
