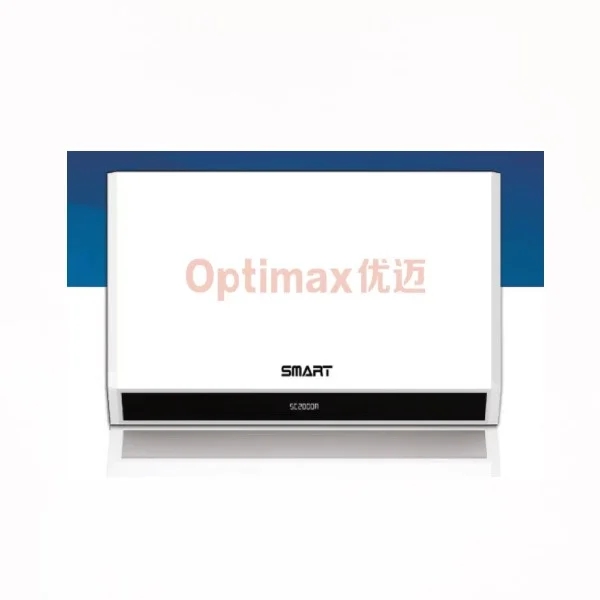

The SC2000-A Home Ladder Control Cabinet is a compact control solution developed for home elevators and residential lifting applications. Designed around practical installation requirements, it combines a slim cabinet structure with low operating noise, safety functions, convenient commissioning, and sufficient performance margin for applications beyond standard residential use.

With a cabinet thickness of only 110 mm, the SC2000-A supports flexible installation in space-constrained locations. Its wall-mounted or concealed hoistway installation options make it suitable for projects where equipment dimensions and architectural integration are important.

Key Features of SC2000-A Home Ladder Control Cabinet

Low-Noise Operation

The SC2000-A is engineered for quiet operation, with noise levels controlled to approximately 48 dB. This makes the control cabinet suitable for residential environments where equipment noise can affect occupant comfort.

Compliance with GB7588

The control system is designed to comply with the GB7588 standard, supporting acceptance requirements for applicable elevator installations. Safety-related functions are integrated into the control configuration to meet the operational requirements of home elevator applications.

Ultra-Slim Cabinet Design

With a minimum thickness of 110 mm, the SC2000-A is designed for projects with limited installation space. Its slim profile allows more flexibility in positioning the cabinet, including wall-mounted and concealed hoistway configurations.

Convenient Safety and Commissioning Functions

The system can be configured with standard ARD/HSD and other functional options. Bluetooth debugging provides a convenient way to perform commissioning and parameter adjustment, helping simplify installation and maintenance procedures.

Additional Performance Margin

Although developed for home ladder applications, the SC2000-A provides sufficient operating margin for certain applications beyond conventional residential elevators. It can also be considered for some relatively demanding operating environments when the project requirements are compatible with the system specifications.

Enhanced Riding Comfort

The control system incorporates functions such as simulated load weighing, crawling start, and dynamic algorithm control. These functions help optimize starting and running behavior, contributing to smoother elevator operation and improved passenger comfort.

Specifications

Flexible Installation for Residential Elevator Projects

The SC2000-A is designed for machine-roomless elevator configurations, helping reduce the space required for dedicated equipment areas. Its 110 mm ultra-thin cabinet structure is particularly suitable for projects where available installation space is limited.

Depending on the building layout and engineering requirements, the cabinet can be installed against a wall or concealed within the hoistway. This provides greater flexibility for residential elevator manufacturers, installers, and project contractors.

The SC2000-A-Plus extends the same compact control concept to applications requiring higher speed and load capacity. It supports a rated speed of up to 1 m/s and a rated load of 630 kg, while maintaining a cabinet thickness of 110 mm.

Its rated power options of 3.7 kW and 5.5 kW allow the configuration to be matched to different elevator requirements. With AC380V input, the Plus version is suitable for projects requiring higher operating capacity within its specified parameters.

Application and Project Compatibility

The SC2000-A series can be used for home elevator projects with up to 10 stations, with applicable interlayer spacing ranging from 0.3 m to 5 m according to the specified configuration.

Support for single-door, double-door, and manual sliding-door arrangements provides additional flexibility for different elevator layouts. The available 27-core and 34-core traveling cable configurations also support corresponding system installation requirements.

For project selection, the appropriate model should be determined according to elevator speed, rated load, power requirements, building structure, installation space, and applicable local standards.

A Practical Control Cabinet for Home Elevator Manufacturers

The SC2000-A combines a compact physical design with elevator control functions required for residential applications. Low operating noise, GB7588 compliance, Bluetooth commissioning, safety-related functions, and dynamic control algorithms make it a practical choice for manufacturers and system integrators developing home elevator solutions.

With both SC2000-A and SC2000-A-Plus configurations available, customers can select a control cabinet according to the required speed, load capacity, input voltage, and installation conditions. The compact cabinet format also helps simplify equipment integration where space is limited.

For B2B buyers, elevator manufacturers, distributors, and installation companies, the SC2000-A series provides a flexible control solution for residential elevator projects and selected applications requiring a compact, reliable, and easy-to-integrate control cabinet.
