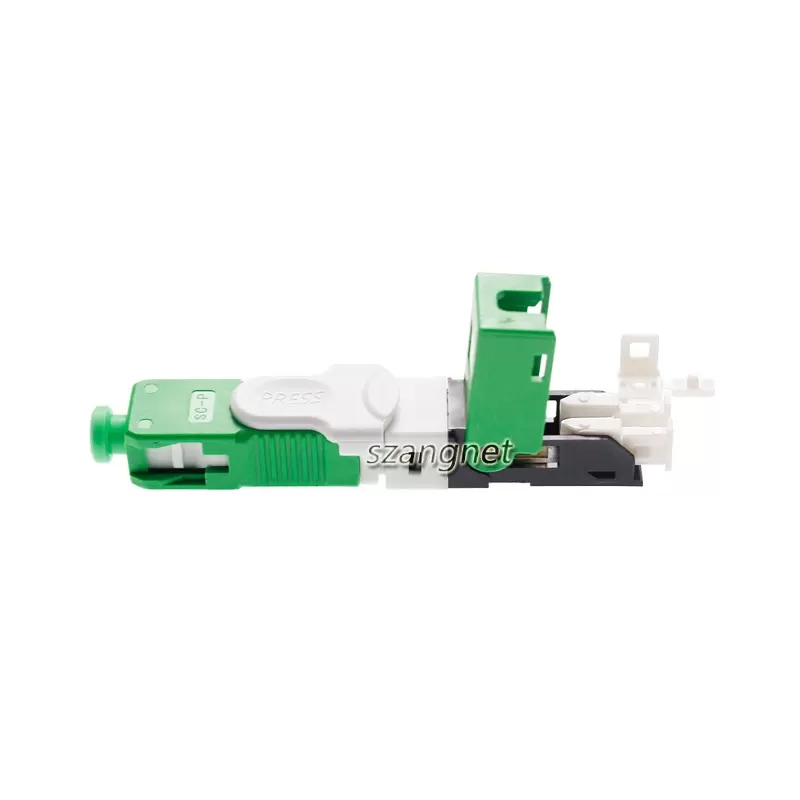

SC/APC Fast Connector for Efficient FTTH Fiber Termination

As fiber optic networks continue to expand, telecom contractors and network installers need connection components that can reduce installation time while maintaining stable optical performance. The SC/APC Fast Connector provides a practical field-installation solution for FTTH, optical access networks, LAN, CCTV, and fiber network maintenance applications. Angnet's fast connector series is designed around mechanical splicing, pre-polished ferrules, and simplified field termination.

Fast Fiber Termination Without Epoxy or Polishing

Traditional fiber connector termination can involve adhesive application, curing, precision polishing, and specialized equipment. For large-scale FTTH projects, these additional procedures can increase labor requirements and installation time.

The SC/APC Fast Connector uses a factory-mounted fiber stub, pre-polished ceramic ferrule, and mechanical splice structure. This design allows technicians to terminate compatible optical fiber directly at the installation site without epoxy or polishing.

For contractors working on high-volume fiber deployments, simplifying the termination process can improve installation efficiency and make field operations more flexible.

SC/APC Interface for Optical Access Networks

SC/APC uses an angled physical-contact interface designed to reduce optical back reflection. This makes SC/APC connectivity particularly suitable for broadband access applications where return-loss performance is important.

The connector is designed for single-mode fiber and can support applications such as FTTH and optical access networks. Angnet's product information specifies insertion loss of up to 0.3 dB and APC return loss up to 55 dB for the referenced ceramic V-groove model.

Designed for FTTH Drop Cable Installation

A major application of the fast connector is the termination of rectangular-section FTTH drop cable.

The referenced SC/APC model supports 2.0 mm × 3.0 mm flat drop cable and is designed to make field assembly straightforward. Installers can terminate cable to the required length instead of relying exclusively on pre-made fixed-length assemblies.

This flexibility can be useful when subscriber connections have different routing distances or when installation conditions change during a project.

Key Product Features

The SC/APC Fast Connector offers several features for professional fiber installation:

• SC/APC single-mode fiber connectivity

• Pre-polished ceramic ferrule

• Mechanical splice structure

• No epoxy required

• No polishing required

• Fast field assembly

• Compatibility with FTTH flat drop cable

• Cable termination to the required length

• Re-openable design

• Guide-rail-assisted assembly

• Stable mechanical and optical performance

The product series also includes different fast connector configurations, including SC/APC and SC/UPC versions, allowing installers to select the connector type according to the network architecture.

Technical Performance

For the ceramic V-groove SC/APC model, the published specifications include:

These specifications make the connector suitable for projects where installation efficiency needs to be combined with repeatable optical and mechanical performance.

Suitable for Field Installation and Maintenance

One of the major advantages of a fast connector is that it can be used directly in field conditions. Technicians do not need to establish a complete fiber polishing and adhesive-curing workflow at every connection point.

A simplified installation process generally involves:

Fiber Stripping → Precision Cleaving → Fiber Insertion → Mechanical Locking → Optical Testing

This approach can be particularly useful for FTTH construction, network expansion, emergency restoration, and fiber replacement projects. Angnet identifies optical access networks, field repair/replacement, and maintenance or emergency restoration as application areas for its fast connector products.

Applications

FTTH Networks

FTTH is one of the primary applications for SC/APC Fast Connectors. The connector can be installed on customer-side drop cables and used to establish connections at optical access points.

Optical Access Networks

For broadband access infrastructure, fast connectors can provide flexible termination at distribution and subscriber connection points.

LAN and CCTV

Fast connector technology can also be applied to building LAN and CCTV fiber wiring. Angnet's product information specifically identifies LAN and CCTV among its application areas.

Field Repair

When an existing fiber connection needs to be replaced or repaired, a field-installable connector can help technicians restore connectivity without relying on a complete factory-terminated assembly.

Emergency Fiber Restoration

In emergency network restoration projects, installation speed can be particularly important. A fast connector can reduce the number of field procedures required to establish an optical connection.

Advantages for B2B Fiber Projects

For telecom operators, fiber installation contractors, system integrators, and network distributors, SC/APC Fast Connectors can provide several practical advantages.

Faster deployment: Simplified termination can help technicians complete more connections within a given installation period.

Lower installation complexity: Eliminating field epoxy and polishing reduces the number of installation procedures.

Flexible cable termination: Installers can terminate cables according to actual routing requirements.

Simplified maintenance: The ability to reopen the connector can provide additional flexibility during network adjustment and repair.

Reliable optical connection: The pre-polished ferrule and mechanical alignment structure are designed to provide consistent fiber positioning.

A Practical Component for Modern Fiber Deployment

The expansion of FTTH and other optical access networks has created a growing need for efficient field termination solutions. A SC/APC Fast Connector combines the familiar SC/APC interface with a mechanical assembly structure, allowing compatible single-mode fiber to be terminated quickly without traditional epoxy and polishing processes.

For FTTH drop cable installation, optical access networks, LAN, CCTV, field repair, and emergency restoration, this type of connector can help simplify installation while maintaining the optical and mechanical characteristics required by professional fiber infrastructure.

Angnet's fast connector portfolio includes multiple SC/APC and SC/UPC configurations, providing options for different fiber installation requirements and network applications.
