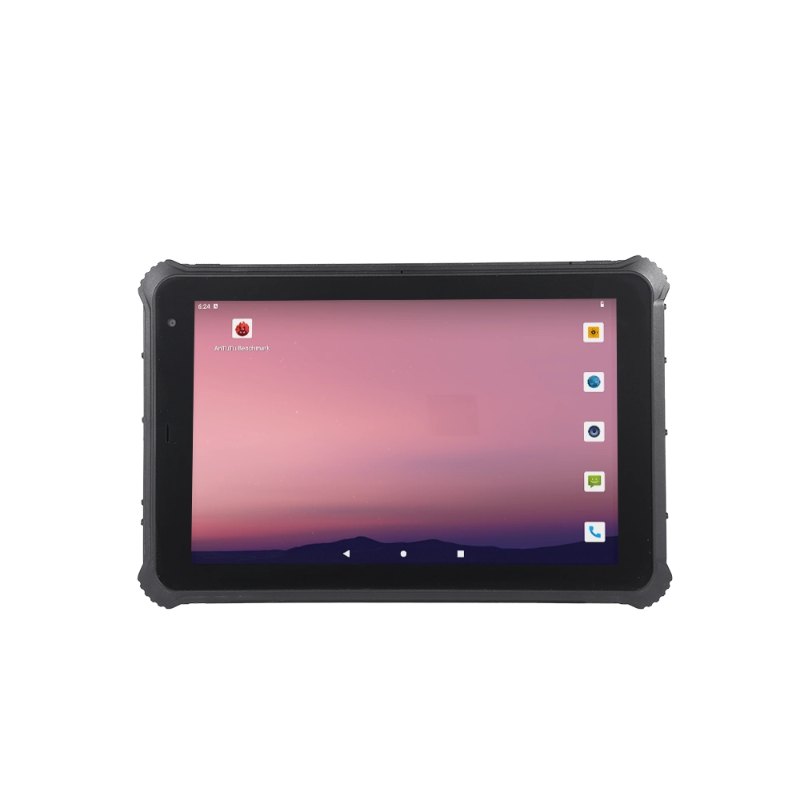

RT-08RA 8inch Android 14 Domestic Rugged Tablet

Product Introduction

The RT-08RA 8inch Android 14 Domestic Rugged Tablet is designed for mobile industrial, field service, transportation, public safety, logistics and other applications that require a durable tablet with flexible communication and expansion capabilities. It combines an RK3588 octa-core processor, Android 14 operating system, 8-inch LCD display and IP67 protection in a compact 760g enclosure.

The tablet supports 10-point capacitive touch input and offers optional 500, 800 or 1000 nit brightness configurations. Its detachable 7.6V 4300mAh polymer lithium-ion battery supports extended field operation while allowing convenient battery replacement.

With Wi-Fi, Bluetooth, domestic standalone BeiDou positioning and optional 4G/5G communication, the RT-08RA can be configured for different mobile data and positioning requirements. Additional modules such as RTK, fingerprint recognition, NFC/RFID, barcode scanning and ID card reading are available for specific applications.

Key Product Features

1. IP67 Rugged Protection

The RT-08RA features a dual-color molded housing and IP67 protection. The rugged enclosure is designed for equipment that may be exposed to dust, water and demanding working conditions.

It also supports a 1.2m drop resistance test on a composite wood floor, providing additional mechanical protection for mobile field applications.

2. RK3588 Octa-Core Processor

The tablet uses an RK3588 octa-core processor with a main frequency of up to 2.4GHz. This hardware platform provides processing capability for industrial applications, mobile data collection, communication terminals and other Android-based systems.

3. Android 14 Operating System

The RT-08RA is adapted to Android 14, providing a current Android platform for application deployment, device integration and customized software solutions.

4. Detachable High-Capacity Battery

The tablet uses a detachable 7.6V 4300mAh polymer lithium-ion battery. The removable design allows batteries to be replaced according to operational requirements instead of relying solely on fixed internal charging.

The stated battery life is approximately 6 hours when playing local 1080P HD video at 50% volume under the specified test condition.

5. Wide Operating Temperature Range

The tablet is designed to operate from -20°C to 60°C, supporting field applications where equipment may encounter significant temperature changes.

The specified storage temperature range is -30°C to 70°C.

6. Multiple Wireless Communication Options

The RT-08RA supports multiple communication technologies, including Wi-Fi, Bluetooth and optional cellular communication.

Wi-Fi supports 802.11a/b/g/n/ac/ax with 2.4GHz, 5.8GHz and 6GHz frequency bands. Bluetooth 5.3 BLE Class 1 is included, with a stated communication distance of approximately 10m.

An optional 4G or 5G module can be installed for cellular communication requirements.

7. BeiDou Positioning and Optional RTK

The standard positioning configuration uses domestic standalone BeiDou positioning. For applications requiring higher positioning accuracy, an optional RTK high-precision positioning module or other customized GNSS modules can be configured.

8. High-Brightness FHD Display Options

The 8-inch LCD supports optional resolutions of 800 × 1280 or 1200 × 1920. Brightness options include 500, 800 and 1000 nits.

The higher-brightness configurations are suitable for applications where screen visibility under strong ambient light is an important consideration.

9. 10-Point Capacitive Touch

The touch panel supports 10-point capacitive touch and has 7H surface hardness. Optional configurations include anti-glare treatment, glove touch and wet-hand touch functions for specific working environments.

10. Flexible Expansion Modules

The tablet can be equipped with various optional modules according to application requirements, including:

• 4G/5G communication

• RTK high-precision positioning

• Standard, police or FBI fingerprint modules

• NFC and HF/LF RFID

• UHF RFID

• ID card reader

• 1D/2D barcode scanner

• Other customized scanning modules

Product Specifications

Item	Specification
Model	RT-08RA
Product Type	8-inch Rugged Android Tablet
CPU	RK3588 Octa-Core
Main Frequency	Up to 2.4GHz
Operating System	Android 14
RAM + ROM	8GB + 128GB / 8GB + 256GB / 16GB + 256GB
Expandable SSD	128GB–2TB
Display	8.0-inch LCD
Display Resolution	800 × 1280 / 1200 × 1920
Brightness	500 / 800 / 1000 nits optional
Touch Panel	10-point capacitive touch
Touch Hardness	7H
Wi-Fi	802.11a/b/g/n/ac/ax
Wi-Fi Bands	2.4G / 5.8G / 6G
Bluetooth	Bluetooth 5.3 BLE Class 1
Standard Positioning	Domestic standalone BeiDou
Front Camera	13MP
Rear Camera	13MP with LED
Battery	Detachable polymer lithium-ion
Battery Voltage	7.6V
Battery Capacity	4300mAh
Battery Life	Approx. 6 hours under specified test condition
Dimensions	226 × 145 × 21.8mm
Weight	Approx. 760g
Standard Color	Black
Operating Temperature	-20°C to 60°C
Storage Temperature	-30°C to 70°C
Humidity	95% RH, non-condensing
Protection Rating	IP67
Drop Resistance	1.2m drop test on composite wood floor

I/O Interfaces

The RT-08RA provides multiple physical interfaces for connecting peripherals, network equipment, displays and external devices.

Interface	Quantity / Specification
Audio	1 × 3.5mm audio port
USB Type-A	1 × USB 3.1
USB Type-C	1 × USB 3.0
Mini HDMI	1 × Mini HDMI
RJ45	1 × Gigabit Ethernet
DC Input	1 × 12V/4A
Pogo Pin	1 × 12-pin Pogo Pin
SIM Slot	1
TF Slot	1, up to 1TB
Aviation Plug	2, customizable for vehicle power, network, serial and other functions

The aviation plug interface can be adapted for selected vehicle-mounted applications and other customized connection requirements.

Storage and Memory Options

Different memory and storage configurations are available according to application requirements:

• 8GB RAM + 128GB ROM

• 8GB RAM + 256GB ROM

• 16GB RAM + 256GB ROM

• Expandable SSD: 128GB to 2TB

• TF card: up to 1TB

These configurations allow buyers to select storage capacity according to software requirements, data collection volume and local data storage needs.

Optional Communication and Identification Modules

4G/5G

An optional 4G or 5G communication module can provide cellular connectivity for mobile field operations and remote data communication.

Fingerprint Recognition

The RT-08RA supports optional standard fingerprint, police fingerprint or FBI fingerprint modules for applications requiring biometric identification.

NFC and HF/LF RFID

The tablet supports standard RFID protocols including 14443A, 14443B, 15693 and 125K. Customized ID card reading and other special modules can also be integrated.

UHF RFID

Optional UHF RFID configurations include PR9200 with a stated reading distance of 3–5m and R2000 with a stated reading distance of 10–15m, depending on the selected module and operating conditions.

Barcode Scanning

Optional 1D and 2D barcode scanning heads are available. Other scanning modules can be customized according to project requirements.

ID Card Reader

An offline second-generation Chinese ID card identification module is available as an optional configuration.

Control Buttons

The tablet includes:

• 1 × Power On/Off button

• Volume +/− keys

• 2 × Custom function buttons

The custom function buttons can be assigned to application-specific operations where required.

Rugged Construction and Reliability

The dual-color molded enclosure provides a reinforced structure for mobile use. Combined with IP67 protection, a 1.2m drop resistance test and a -20°C to 60°C operating temperature range, the RT-08RA is designed for applications where conventional consumer tablets may require additional protection.

The 7H capacitive touch panel provides a durable interactive surface, while optional anti-glare, glove touch and wet-hand touch configurations can be selected according to the operating environment.

Typical Applications

The RT-08RA 8inch Android 14 Domestic Rugged Tablet can be configured for a range of professional applications, including:

Industrial Field Service

For equipment inspection, maintenance records, work orders, mobile diagnostics and field data collection.

Logistics and Warehousing

For inventory management, barcode scanning, RFID identification, order processing and mobile warehouse operations.

Transportation

For vehicle-mounted systems, fleet management, route information, dispatching and transportation data collection.

Public Safety

Optional fingerprint, RFID, positioning, communication and identification modules support selected public-service and field-operation applications.

Industrial Automation

The tablet can function as a mobile control or monitoring terminal for equipment and automation systems.

Energy and Utilities

Rugged construction, wireless communication and positioning functions support selected inspection and maintenance workflows.

Retail and Commercial Equipment

The 8-inch display and multiple connectivity options can be integrated into professional terminals, interactive equipment and customized commercial systems.

Power and Adapter

The standard power configuration includes an AC100V–240V input adapter with DC5V/3A output.

The detachable battery is rated at 7.6V and 4300mAh. Actual operating time depends on application load, screen brightness, wireless communication, software operation and other operating conditions.

Reliability and Environmental Specifications

Parameter	Specification
Operating Temperature	-20°C to 60°C
Storage Temperature	-30°C to 70°C
Relative Humidity	Up to 95%, non-condensing
Protection	IP67
Drop Test	1.2m on composite wood floor
Device Weight	Approx. 760g
Device Dimensions	226 × 145 × 21.8mm
Color	Black

Certifications and Compliance

The supplied certification and compliance information includes:

• IP67

• RoHS

• UN38.3

• EMC

• 3C

• Explosion-proof Certification

• Energy-saving Certification

• MIL-M-810H

Specific certification applicability should be confirmed according to the selected device configuration and intended application.

B2B Product Selection

When selecting an RT-08RA configuration, buyers can determine the required combination of memory, storage, display brightness, communication, positioning and identification functions based on the project.

For basic mobile applications, the standard Android 14, Wi-Fi, Bluetooth and BeiDou configuration can provide a practical starting point. Applications requiring mobile network connectivity can add 4G/5G, while high-precision positioning projects can select RTK.

For logistics and identification applications, optional barcode scanning and RFID modules can be added. For public-service or security-related applications, fingerprint and ID card reader configurations are available.

FAQ

What operating system does the RT-08RA use?

The RT-08RA runs on Android 14.

What processor is used?

It uses an RK3588 octa-core processor with a main frequency of up to 2.4GHz.

Is the battery removable?

Yes. The tablet uses a detachable 7.6V 4300mAh polymer lithium-ion battery.

Is the tablet waterproof and dustproof?

The device has an IP67 protection rating. Its protection performance should be considered together with the actual installation and operating conditions.

Does the tablet support 4G or 5G?

Yes. 4G/5G communication is available as an optional module.

Does it support GPS?

The standard positioning configuration is domestic standalone BeiDou. Other GNSS configurations, including RTK high-precision positioning, can be selected as optional modules.

Can the tablet read RFID tags?

Yes. Optional NFC, HF/LF RFID and UHF RFID modules are available. UHF reading distance varies by selected module and operating conditions.

Does it support barcode scanning?

Optional 1D and 2D barcode scanning modules are available, with other scanning configurations customizable.

Can the screen be used with gloves?

Glove touch is available as an optional touch-panel configuration.

About the Manufacturer

Fushizk Technology Co.,Ltd provides rugged tablet and customized mobile terminal solutions for professional applications requiring enhanced protection, communication, positioning and peripheral integration.

For distributors, system integrators, equipment manufacturers and project buyers, the RT-08RA 8inch Android 14 Domestic Rugged Tablet offers multiple configuration options for developing application-specific rugged mobile terminals.
