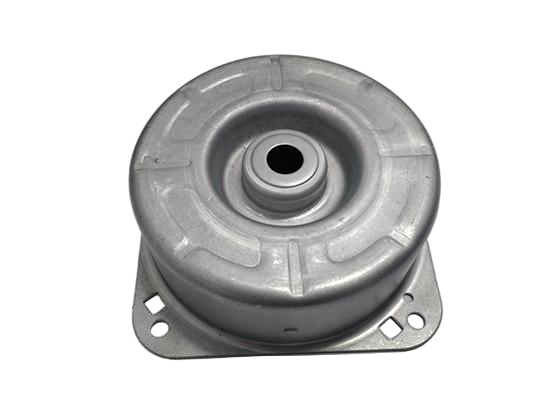

Ribbed Galvanized Sheet Motor End Cover (Inner Diameter 120)

In modern household and commercial appliances, the performance of a washing machine depends heavily on the reliability of its motor system. Among all motor components, the washing machine motor end cover plays a crucial structural and functional role in ensuring stable operation, precise alignment, and long-term durability.

As a core part of the motor assembly, it directly influences vibration control, noise reduction, energy efficiency, and overall service life of the washing system. High-quality motor end covers are therefore essential for appliance manufacturers seeking performance consistency and product reliability.

What Is a Washing Machine Motor End Cover?

The washing machine motor end cover is a structural housing component installed at both ends of the motor. It is designed to:

• Support the motor shaft

• Secure bearings in position

• Protect internal windings and components

• Maintain structural alignment during operation

• Reduce vibration and mechanical noise

Because it serves as a load-bearing and positioning component, its machining accuracy and material quality are critical to motor performance.

Key Functions in Motor Performance

A well-designed motor end cover contributes to several important performance factors:

1. Improved Motor Stability

The end cover ensures precise alignment of the rotor and shaft, reducing imbalance during high-speed rotation.

2. Vibration and Noise Reduction

Reinforced structural ribs help absorb mechanical stress, minimizing vibration and operational noise.

3. Bearing Protection and Support

High-precision bearing housings maintain tight tolerance fits, preventing misalignment and premature wear.

4. Extended Motor Lifespan

Stable mechanical structure reduces internal friction and stress, significantly improving long-term durability.

Manufacturing Materials and Processes

To meet different application requirements, multiple material options and manufacturing processes are available.

Material Options

• ADC12 Aluminum Alloy – Lightweight, strong, and suitable for high-efficiency motors

• SPCC Cold Rolled Steel – High strength and structural rigidity

• PA66 + GF30 Engineering Plastic – Excellent insulation and vibration resistance

Manufacturing Methods

• Precision die casting

• CNC machining

• Stamping forming

• Injection molding

Each process is selected based on motor design requirements, production volume, and cost efficiency.

Surface Treatment Options

To improve corrosion resistance and durability, various surface finishing processes are available:

• Powder coating

• Electrophoresis coating

• Anodizing

• Zinc plating

These treatments ensure long-term performance even in humid or high-temperature environments.

Technical Advantages of Our Motor End Covers

Our washing machine motor end covers are engineered for precision and reliability.

High Precision Machining

• CNC machining ensures excellent dimensional accuracy

• Concentricity control within ≤ 0.03mm

• Bearing housing tolerance reaches H7 standard

Structural Optimization

• Reinforced rib design improves rigidity

• Reduces vibration during high-speed operation

• Enhances motor balance and stability

Thermal and Environmental Resistance

• Operating temperature range: -20°C to 120°C

• Corrosion-resistant surface options available

• Suitable for long-term continuous operation

Applications

Washing machine motor end covers are widely used in:

• Household washing machine motors

• Commercial laundry equipment

• Industrial washing systems

• Variable frequency drive (VFD) motors

These applications require high reliability, stable torque performance, and long service life.

Quality Control and Testing

To ensure consistent product performance, strict quality control procedures are implemented:

• Raw material inspection

• CNC dimensional accuracy testing (CMM inspection)

• Concentricity measurement

• Salt spray corrosion testing

• Assembly compatibility verification

Every component is tested to meet international quality standards before shipment.

OEM & ODM Customization Capability

We support full customization services based on customer requirements, including:

• Structural design based on drawings or samples

• Material selection optimization

• Surface treatment customization

• Dimension and tolerance adjustment

• Mass production support for global OEM projects

This flexibility allows manufacturers to integrate our components into different washing machine motor designs efficiently.

Why Choose a Professional Motor End Cover Manufacturer?

Choosing the right supplier is essential for ensuring long-term motor reliability. A professional manufacturer provides:

• Advanced die casting and CNC machining capability

• Strict quality control system

• Stable mass production capacity

• Cost-effective factory pricing

• Export experience to global markets

These advantages help appliance manufacturers improve product quality while reducing production risks.

Conclusion

The washing machine motor end cover is not just a structural accessory—it is a key engineering component that directly impacts motor efficiency, stability, and lifespan.

With high-precision manufacturing, optimized structural design, and strict quality control, high-quality motor end covers play an essential role in modern washing machine performance and reliability.

For global appliance manufacturers, selecting a trusted OEM supplier ensures consistent quality and long-term operational stability in competitive markets.
