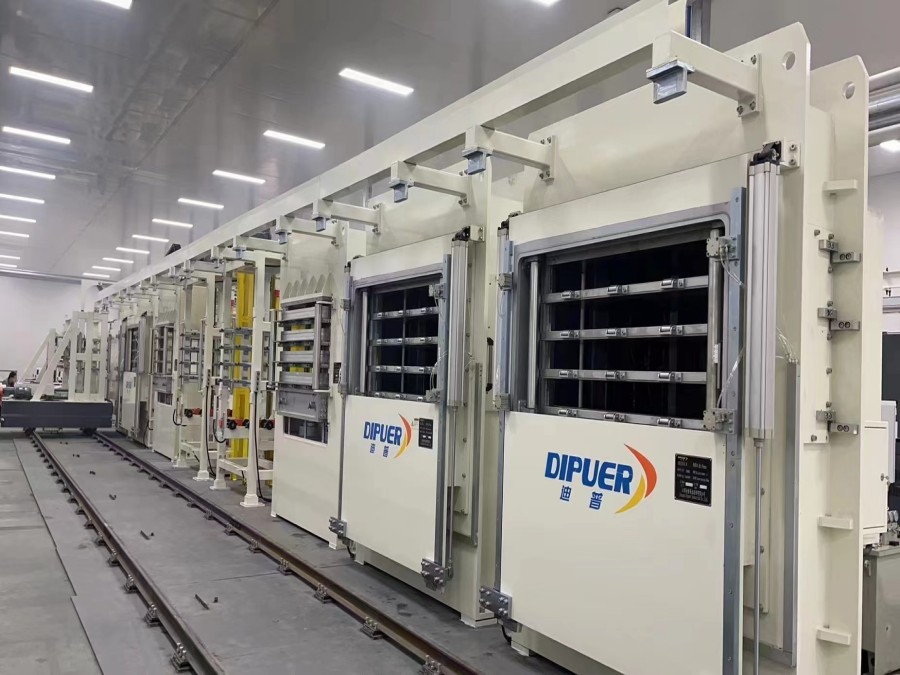

PCB Laminating Production Line

Strategically located in one of the most impressive PCB (Printed Circuit Board) and CCL (Copper Clad Laminate) manufacturing economies, China, Dipuer has become one of the premier providers of PCB and CCL related press machinery. By always utilizing the latest technologies we have been able to develop a wide range of industry-leading and customizable PCB and CCL laminating press machines. Within this range of highly specialized presses, we are also able to manufacture laminating presses that can attach laminate polymers onto surfaces for a variety of applications.

PCB presses can be designed to meet a wide range of printed circuit board applications, with the most popular model being the PCB laminating presses. These press machines are very efficient, can be designed with a range of different platen areas and capacities. With precision controls that efficiently regulate the machine’s pressures and temperature settings, our press machines can efficiently perform multi-layer laminating for large-scale production runs.

With the possibility of installing both hot and cold CCL and PCB laminating presses with automatic loading systems, we are able to develop highly efficient and productivity-enhancing solutions for our customers. With up to 40 openings per press and capacities in excess of 3,000tons, we produce a comprehensive range of PCB and CCL laminating presses.

Reference

Our range of specialized PCB and CCL laminating presses include CCL laminating vacuum hot presses, hot and cold presses and expert PCB laminating presses. All of these hydraulic presses can be equipped with automatic loading and unloading systems which massively increases productivity, cuts down on expensive labor costs and increases workfloor safety.

Application

PCB and CCL laminating presses are most commonly used in the processing of printed circuit boards, copper clad laminate and the lamination of a variety of surfaces. These presses can be highly customized to perform a range of functions for many different materials.

Specification

Dipuer can manufacture PCB and CCL laminating presses in sizes ranging between 200 and 3,000tons or more. By being able to customize the number of openings, platen area and stroke size, are we able to construct a machine that exactly meets your precision lamination requirements.

Vacuum press machine for laminating CCLs

· This vacuum press machine is for manufacturing CCLs (copper-clad laminates).

· This press machine pursues flatness of heating plates and increases the thickness accuracy of copper-clad laminates.

· This press machine contributes to improvement in productivity by adopting a large-sized (2 m) heating plate.

Vacuum press machine for laminating PCBs (FPC)

· This vacuum press machine is for manufacturing printed circuit boards such as PCBs, FPCs, etc.

· A fully automated loader is adopted to improve operator workability.

· During manufacturing, temperature, pressure and vacuum can be monitored and automatically recorded by installing a personal computer for control.
