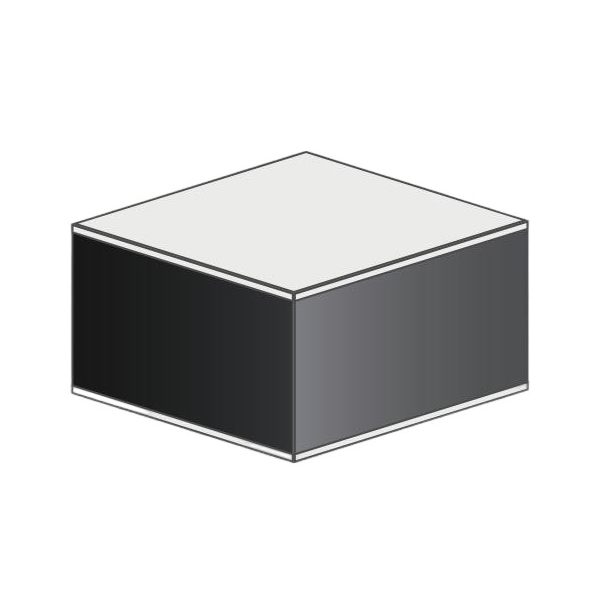

NTC Thermistor Chips

NTC Thermistor Chips are compact temperature-sensitive components designed for temperature measurement, temperature compensation, and over-temperature protection in electronic and industrial applications. With a small size, high sensitivity, and excellent compatibility, these NTC chips can be integrated into compact electronic modules where space, response, and consistency are important.

The chips support customization of appearance, dimensions, electrical performance parameters, and surface electrode materials, making them suitable for different circuit designs and assembly requirements.

Compact Size with High Temperature Sensitivity

The miniaturized structure of NTC Thermistor Chips makes them suitable for applications where installation space is limited. Their small dimensions allow designers to integrate temperature sensing functions into compact modules without requiring large component footprints.

At the same time, the high sensitivity of NTC thermistor materials enables effective resistance changes in response to temperature variations. This makes the chips suitable for temperature detection, compensation, and protection functions in electronic control systems.

With available dimensions ranging from 0.20 to 0.60 mm in diameter and 0.30 to 1.50 mm in length, the chips can be selected according to the requirements of different electronic structures.

Customized Electrical and Physical Parameters

Different electronic applications may require different resistance values, B values, dimensions, or operating temperature ranges. These NTC Thermistor Chips support customization to help customers match the component with specific circuit and sensing requirements.

The appearance, dimensions, and electrical performance parameters can be adjusted according to application requirements.

Available technical parameters include:

• Nominal resistance: 1.0–1300 KΩ

• B value: 3200–4500 K

• Operating temperature: -50°C to +130°C

• Time constant: <5 s

• Diameter: 0.20–0.60 mm

• Length: 0.30–1.50 mm

This flexibility makes the chips suitable for both standard applications and specialized temperature-sensing designs.

Multiple Surface Electrode Options

To accommodate different assembly processes and application environments, the surface electrodes can be manufactured using different materials according to customer requirements.

Available electrode material options include:

• Gold

• Silver

• Palladium

• Other customized electrode solutions according to application requirements

The choice of electrode material can be considered together with the customer's assembly method, electrical requirements, and integration process.

High Consistency for Automated Assembly

Consistency is particularly important for manufacturers using automated production equipment. Variations in component dimensions or structure can affect feeding, positioning, welding, and integration processes.

NTC Thermistor Chips are manufactured with high consistency and uniformity in appearance, structure, and dimensions, making them easier to handle and integrate with automated equipment.

This characteristic is beneficial for manufacturers seeking to improve assembly efficiency and maintain stable production quality across large-volume applications.

Wide Temperature Sensing and Protection Applications

NTC Thermistor Chips can be used in various electronic modules and temperature-sensitive circuits. Their compact structure and temperature-dependent resistance characteristics allow them to perform different sensing and protection functions.

Typical applications include:

IGBT Modules and Thermopile Temperature Sensing Modules

The chips can be integrated into multifunctional hybrid-design IGBT modules and thermopile temperature sensing modules. Their compact size helps simplify component integration in space-constrained module structures.

Intelligent Control Circuit Boards

NTC chips can be used for temperature measurement, temperature compensation, and over-temperature safety protection in intelligent control circuit boards.

By monitoring temperature changes, the thermistor can provide a temperature-related electrical signal for control and protection circuits.

Encapsulated Temperature Sensors

The chips can also be incorporated into thermistors or temperature sensors that are sealed using materials such as glass, resin, or spray vulcanization.

This allows the sensing element to be integrated into different sensor structures according to the requirements of the final application.

Technical Parameters

The above specifications represent the available product range. Specific electrical characteristics, dimensions, electrode materials, and other parameters can be customized according to customer requirements.

Why Choose NTC Thermistor Chips?

Small and Compact
The miniature design is suitable for electronic modules and circuits with limited installation space.

High Sensitivity
NTC characteristics provide a reliable response to temperature changes for sensing and protection applications.

Flexible Customization
Dimensions, appearance, electrical parameters, and electrode materials can be customized for different designs.

High Dimensional Consistency
Uniform structure and dimensions support automated assembly and integration.

Multiple Electrode Materials
Gold, silver, palladium, and other electrode options can be selected according to application requirements.

Wide Operating Temperature Range
The available operating temperature range of -50°C to +130°C supports a broad range of electronic applications.

A Reliable Component for Temperature Management

As electronic systems become increasingly compact and integrated, temperature management has become an important part of circuit design. A suitable temperature-sensitive component needs to provide not only reliable electrical characteristics but also compatibility with the physical structure and manufacturing process.

NTC Thermistor Chips combine a miniature form factor, high sensitivity, customizable parameters, and consistent dimensions to provide a practical solution for temperature measurement, compensation, and over-temperature protection.

For IGBT modules, thermopile sensing modules, intelligent control boards, and encapsulated temperature sensors, these chips can be customized to meet different electrical and mechanical requirements while supporting efficient automated assembly.

Manufacturers and electronic component integrators can select the appropriate resistance range, B value, dimensions, electrode material, and other parameters according to their specific application requirements.
