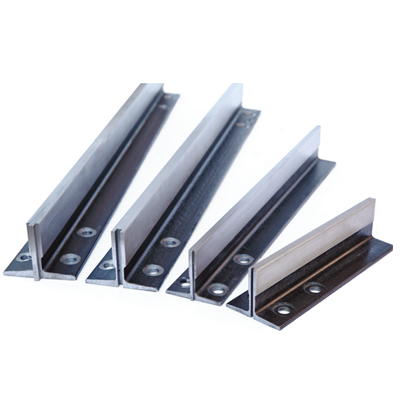

Machined Guide Rail BE

The elevator guide rail is composed of a rail and a connecting plate which is composed of an elevator component, which is divided into a car guide rail and a pair of heavy guide rail. From the section shape is divided into T shape, L shape and hollow three forms. Guide rail in the guide at the same time, to bear the car, the impact force of the elevator brake, the impact force of safety clamp emergency brake, etc.. The size of these forces is related to the quality and speed of the lift, so it should be selected according to the speed of the elevator and the quality of the load. The main rail is the main rail, and the heavy rail is the secondary rail.

Machined Guide Rail BE
Product Introduction

The elevator is the elevator guide rail driving safety rails in the shaft, a guide rail is arranged on the well wall, by rail frame rail bracket is fixedly connected with the wall of well. The guide rail of the elevator is "T" – shaped guide rail. High rigidity, high reliability, safety and low cost, etc.. The plane of the guide rail must be smooth, no obvious uneven surface. The guide is guide shoe and a safety clamp on the elevator car shuttle tracks, so the installation must ensure its clearance. At the same time, the guide rail in the elevator to withstand the speed of the elevator to be allowed to stop the elevator, so its rigidity can not be ignored.

The elevator guide rail is installed between the elevator shaft or floor of two or more columns vertical or inclined rigid rail, ensure the car and counterweight along the up and down movement, ensure the escalators and moving cascade for inclined or horizontal movement along the guide of lifting device for elevator car, or cascade. From the definition of rail, rail is an important reference part vertical elevator, elevator, automatic sidewalks cascade, which controls the elevator, escalators and moving stairs running track, security transfer operation signal, it is an important part of the elevator safety and quality of the operation involved.
