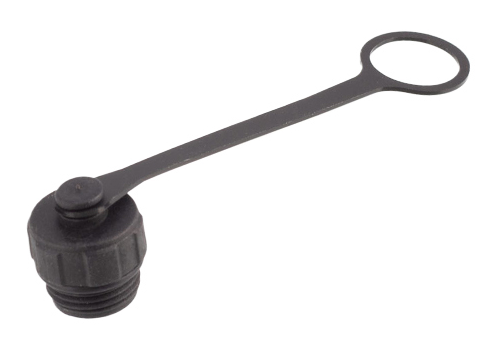

M8 Plastic Dust Cover (Outer screw)

PRODUCT PARAMETERS

Shell material：	Brass nickel-plated/Zinc alloy nickel-plated
Insulator material：	PA66
Sealing material：	Epoxy resin/Rubber
Contact material：	Brass/Phosphorus copper gold-plated
Waterproof grade：	IP65/IP67
Insulation impedance：	≥100 mΩ
Contact impedance：	≤5 mΩ
Durability：	≥500 Cycles
Applicable temperature：	-25℃ ~ +80℃
Execution standard：	IEC 61076-2-104

M8 ELECTRICAL PARAMETERS

European standard connector: M8 series

Structure type: Plastic Dust Cover

Ring inner diameter: ∅3、∅7.5、∅10、∅11.5mm

Type: Outer screw

Connection method: Screw

Certification: CE,RoHS,UL

Standard: IEC 61076-2-104

DIMENSION DRAWING

WIRE DEFINITION

Product Name	Product NO:	Ring inner diameter	3D Download	2D Download
M8 Plastic Dust Cover (Outer screw)	M8P-TV5S-3-N	Φ 3mm
M8 Plastic Dust Cover (Outer screw)	M8P-TV5S-7.5-N	Φ 7.5mm
M8 Plastic Dust Cover (Outer screw)	M8P-TV5S-10-N	Φ 10mm
M8 Plastic Dust Cover (Outer screw)	M8P-TV5S-11.5-N	Φ 11.5mm
