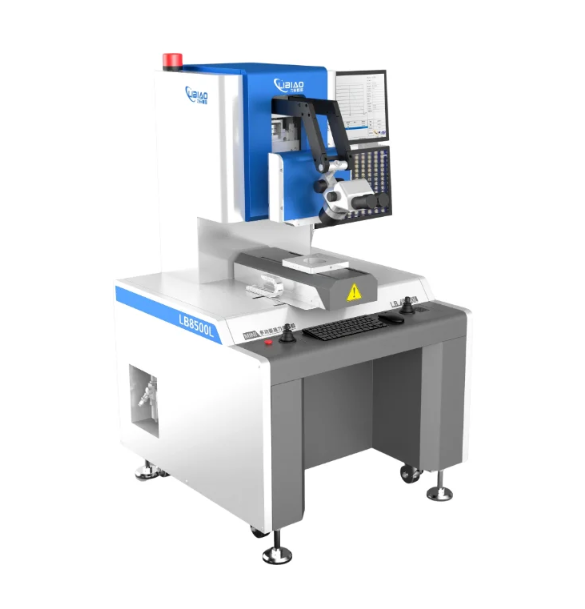

LB8500L Multi-function Automatic Bonding Tester

The system supports a broad range of optical component configurations and can be fitted with both domestic and imported optical components. Available optical configurations include bright-field, dark-field, differential interference contrast (DIC), polarization, and epi-fluorescence.

Equipment Features

Automated Test-Station Positioning
After the operator selects the required test station through the software, the equipment automatically moves to the corresponding working position. This automated positioning function reduces manual positioning operations and improves test workflow efficiency.

Independent Data Acquisition for Three Sensors
Three working sensors are configured with separate data acquisition systems. Independent signal collection helps maintain measurement consistency and supports accurate test results from each sensing channel.

Individual Sensor Protection
Each sensor incorporates dedicated anti-collision and overload protection to reduce the risk of sensor damage during operation.

Independent Safety and Speed Limits
Every test station is equipped with its own safety-limit and speed-limit functions, providing controlled movement and additional protection during automated testing.

Operator-Friendly Software Interface
The control interface is designed for straightforward operation, allowing production and testing personnel to configure and execute measurements without complicated procedures.

High-Precision Measurement Architecture
A high-accuracy sensor system works together with proprietary mechanical algorithms to improve measurement precision and maintain reliable test results.

Dynamic Sensing Technology
High-precision dynamic sensing technology is incorporated into the measurement system to improve the reliability and authenticity of collected test data during dynamic testing conditions.

Imported Transmission Components
Selected imported transmission components are used in the mechanical drive system to improve equipment stability, positioning performance, and overall testing precision.

Three-Position Automatic Rotation Protection
The automatic three-position rotary switching mechanism helps prevent equipment damage resulting from incorrect manual operation or improper station selection.

Hall-Effect Dual Joystick Control
The Hall-effect dual joystick provides four-direction control, allowing operators to perform equipment movements and positioning operations in a simple and intuitive manner.

MES System Integration
The system can be integrated with the factory's MES (Manufacturing Execution System). Test data can be stored and exported in real time, enabling faster data retrieval, production traceability, and digital manufacturing management.

Optical Component Compatibility

The equipment supports both domestic and imported optical components and can be configured with:

• Bright-field optics

• Dark-field optics

• Differential interference contrast (DIC)

• Polarization optics

• Epi-fluorescence optics

Key Benefits for Industrial Testing

• Automated movement to the selected test station

• Three independent sensor data acquisition systems

• Individual anti-collision and overload protection

• Independent safety and speed control for each station

• High-precision dynamic sensing

• Mechanical algorithm-assisted measurement accuracy

• Stable transmission system using imported components

• Automatic three-position rotation switching

• Hall-effect dual joystick four-way operation

• Real-time MES data integration and export

• Flexible compatibility with multiple optical configurations
