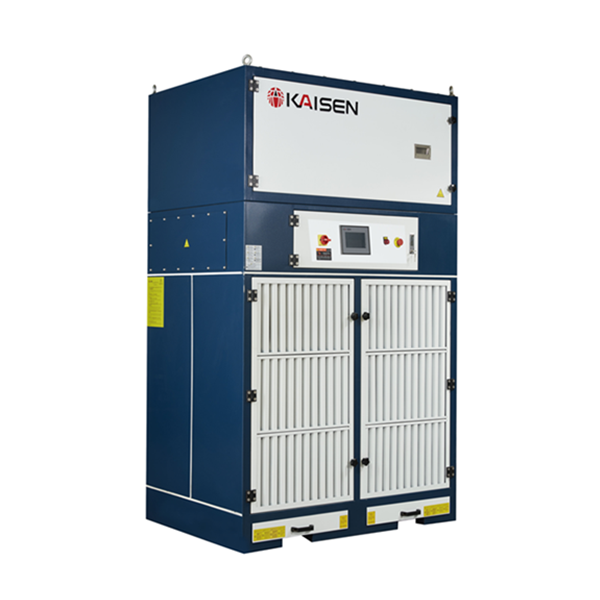

KSZHDM-03 Combined Grinding Dust Collector

Features:
● Reasonable structure design facilitates dust settlement
● Convenient dust removal, automatic dust removal to ensure the continuity and efficiency of production
● Low noise and easy to use
● PLC control system control, humanized operation panel design, easy to use
● High filtration accuracy, high efficiency and long service life

Introduction:

Grinding and polishing is an indispensable process in the process of metal
processing.

During the grinding and polishing process,a large amount of dust will be
produced, which will cause pollution to the working environment and also
endanger the health of the workers.

For fixed and light weight small workpieces, we use the downdraft table type
grindingdust collector to effectively aspirate dust and purify from the grinding
process. For dispersed grinding workpieces with large size and weight and need
to be hoisted, the central grinding dust collector should be used to absorb and
purify dust generated by grinding.

We specially designed these two types of grinding dust collectors to meet the
requirements of dust treatment in the workshop of grinding.

Parameters:

Model	KSZHDM-03
Inlet Air Flow	15500-17500±500m³/h
Motor Power	11kW
Power Supply	3x380V/50Hz
Filter Material	Cellulose
Filtration Area	288㎡
Filtration Efficiency	≥99.9%
Filtration Precision	≥0.5μm
Filter Cartridge	8 Pcs
Cleaning Method	Automatic cleaning
Compressed Air	0.5~0.6MPa
Noise Level	≤75±5dB(A)
Dimension (WxDxH)	2000×1060×2700mm
Weight	1390±20kg
