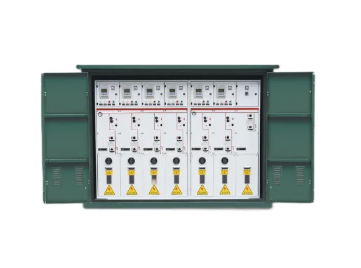

KR-XGW-12 Outdoor High-Voltage Ring Main Unit (Switchgear Station)

With the rapid development of urban infrastructure and increasing demand for reliable electricity supply, traditional cable network systems face challenges such as complex wiring, limited installation space, and high maintenance requirements. To improve power distribution efficiency and system reliability, outdoor cable branch boxes have become an important component in modern medium-voltage distribution networks.

Designed with advanced insulation technology and a compact structure, the outdoor cable branch box provides a safe, flexible, and maintenance-free solution for cable connection, distribution, and protection in urban and industrial power systems.

Fully Insulated and Sealed Design for Enhanced Safety

Safety is one of the most important requirements in power distribution equipment. The outdoor cable branch box adopts a fully insulated and fully sealed structure, effectively isolating internal electrical components from external environmental influences.

This design provides several advantages:

• Improved operator safety

• Reduced risk of electrical faults

• Protection against moisture and dust

• Reduced maintenance requirements

• Reliable long-term operation

Unlike traditional open-type cable connection systems, the sealed design minimizes the impact of harsh outdoor conditions and ensures stable performance throughout the equipment service life.

Simplifying Urban Cable Networks and Reducing Installation Costs

Modern cities require increasingly complex underground cable systems to support commercial buildings, residential areas, transportation facilities, and industrial applications.

The outdoor cable branch box helps simplify cable network structures by providing centralized cable connection and distribution functions. By optimizing cable routing and reducing unnecessary switching equipment, it can help:

• Reduce infrastructure investment

• Simplify cable management

• Improve installation efficiency

• Lower system maintenance costs

For urban power distribution projects where space and construction efficiency are critical, compact cable branch solutions provide significant advantages.

Strong Environmental Adaptability for Outdoor Applications

Outdoor electrical equipment must operate reliably under various environmental conditions. The cable branch box is designed with strong environmental resistance and is suitable for demanding outdoor installations.

Key protection features include:

• Dust-proof structure

• Moisture resistance

• Flood-resistant design

• Corrosion resistance

• High environmental adaptability

With an IP54 protection rating, the equipment can effectively withstand common outdoor challenges and maintain stable operation in different climates and installation environments.

Flexible Cable Connection Configurations

Different power distribution projects require different cable connection arrangements. The outdoor cable branch box supports flexible incoming and outgoing cable configurations, with the number of cable connections ranging from 2 to 8 lines.

This flexible design allows the equipment to adapt to various applications, including:

• Urban underground cable networks

• Industrial power distribution systems

• Commercial power supply projects

• Renewable energy connection systems

• Infrastructure power projects

The customizable wiring arrangement makes installation more convenient and helps engineers optimize the overall distribution layout.

Compact Structure with Easy Installation and Maintenance

Space utilization is a major consideration in modern electrical projects. The outdoor cable branch box features a compact structure with a small footprint, making it suitable for areas with limited installation space.

Its advantages include:

• Compact dimensions

• Low installation height

• Simple installation process

• Attractive appearance

• Minimal maintenance requirements

The elegant external design allows the equipment to integrate well with surrounding environments, making it suitable for urban areas where both performance and appearance are important.

Advanced Safety Functions Improve Power Supply Reliability

To improve operational safety and reduce downtime, the cable branch box can be equipped with additional protection components such as:

• Electrified display devices

• Short-circuit fault indicators

• Lightning arresters

The short-circuit indicator helps maintenance personnel quickly identify fault locations, reducing troubleshooting time and improving repair efficiency.

For distribution networks, faster fault detection means shorter power interruption periods and improved overall system reliability.

Load Switching Capability for Flexible Operation

The 200A cable head supports plug-in and plug-out operation under load conditions and provides disconnector functionality.

This feature improves operational flexibility by allowing maintenance and network adjustments without unnecessary system shutdowns.

The equipment can also be combined with:

• Load switches

• Circuit breakers

• Cable joints

Through flexible component combinations, the cable branch box can meet different power distribution requirements while improving system operation efficiency.

Applications of Outdoor Cable Branch Boxes

Outdoor cable branch boxes are widely used in various medium-voltage power distribution applications, including:

Urban Power Networks

Used for underground cable distribution in residential communities, commercial districts, and municipal infrastructure.

Industrial Facilities

Provides reliable cable connection and distribution solutions for factories, workshops, and industrial parks.

Energy Projects

Suitable for power connection and distribution in renewable energy and large-scale electrical projects.

Public Infrastructure

Applied in transportation systems, communication facilities, and other important power supply networks.

Technical Parameters for Medium Voltage Distribution Systems

The outdoor cable branch box is designed for medium-voltage applications with the following key specifications:

• Rated voltage: 12kV

• Rated current: 630A

• Rated frequency: 50Hz

• Power frequency withstand voltage: 42kV (1 minute)

• Lightning impulse withstand voltage: 75kV

• Protection class: IP54

These parameters ensure reliable electrical performance and strong protection capability for modern distribution systems.

Conclusion: A Smart Choice for Reliable Cable Distribution

As urban power networks continue to expand, reliable and flexible cable distribution equipment has become increasingly important. The outdoor cable branch box provides an effective solution by combining full insulation, sealed protection, compact design, flexible wiring options, and enhanced operational safety.

With its ability to simplify cable networks, reduce maintenance requirements, and improve power supply reliability, this equipment plays an essential role in modern medium-voltage distribution systems. For utilities, contractors, and industrial users seeking efficient outdoor power distribution solutions, the cable branch box is a practical and reliable choice.
