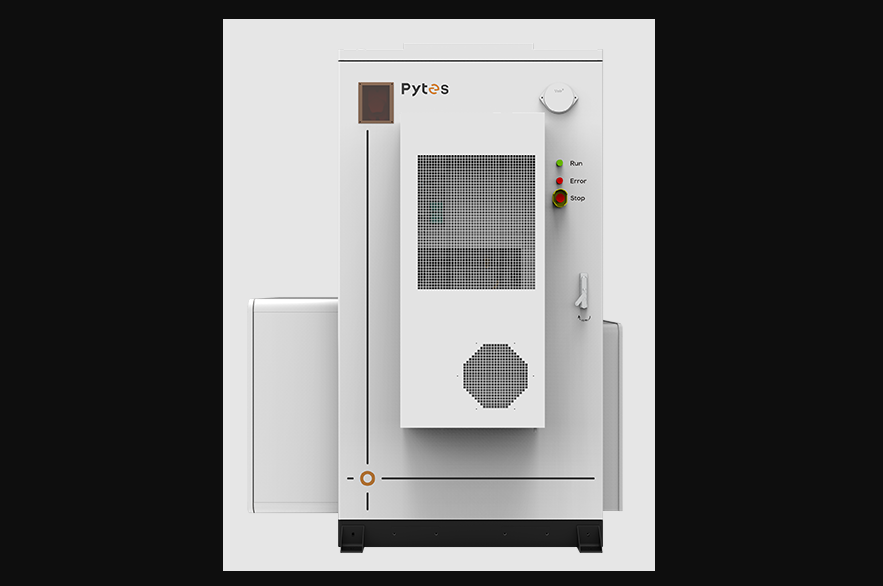

HV48300 Max SE

Safe

Tier-1 Automotive-grade LFP 314Ah Cells

Multi-level BMS Monitoring and Active Fire Suppression

NFPA 68/69, UL 9540, UL 9540A, UL1973 Compliant
All-Weather

Air-cooling System

Built-in Module-level Fans

IP55 Rated Water & Dust Proof Cabinet
Scalable

Modular by Design, Scalable on Demand:
Scale Seamlessly to MWh-level Capacity
Flexible

Wide Voltage Operation Range

Universal Mounting Structure

Support Various Inverter Models
Smart

Remote Monitoring and Upgrading with Pytes Battery Cloud
Local Delivery & Services

Local Stock for Faster Delivery

Local Team Provides Comprehensive Services

Battery Module
Battery Chemistry	Lithium Iron Phosphate (LFP)
Battery Module Nominal Voltage	51.2V
Battery Module Nominal Capacity	44.8~57.6V
Battery Module Nominal Capacity	314 Ah
Battery Module Energy	16.076kWh
Weight	262 ± 11 lb / 119 ± 5 kg

System
Max. Battery Pack Internal Configuration 1	7S2P	15S1P
Rated Energy	200.70kWh	215.04kWh
Rated Power	100.35kW	107.52kW
Operating Voltage	313.6 ~ 4032 V	672~ 864V
Rated Charge/Discharge Current	140 A*2	140A
Peak Charge/Discharge Current	170 A*2 (@60 s)	170 A (@60s)

General
Dimensions(WxDxH)	47 x 43 x 89 in (1200 x 1100 x 2250 mm)
Weight (lb / kg)	5310.94 / 2409	5511.56 / 2500
Ingress Protection Rating	IP 55
Cycle Life 2	6000cycles
Warranty 3	Battery system: 3 Years 4 Battery module: 10 Years

Environmental
Operating Temperature	Charging: 32°F ~ 131°F (O°C~SS°C) Discharging: -13°F ~ 131°F (-25°C~55°C)
Operating Altitude	≤6561.68 ft(2000m)
Relative Humidity	5%-95 %, non-condensing

Environmental

Operating Temperature

Charging: 32°F ~ 131°F (O°C~SS°C)

Discharging: -13°F ~ 131°F (-25°C~55°C)

Operating Altitude

≤6561.68 ft(2000m)

Relative Humidity

5%-95 %, non-condensing

Fire Suppression System
Level 1: Detection & Ventilation	Hazardous gas detection activates ventilation system
Level 2: Aerosol Suppression	Heat and smoke detection activates aerosol fire suppression system
Level 3: Pressure Relief	The explosion relief valve opens automatically if internal pressure exceeds safe limits
Level 4: Fire Hose Connection Port	Equipped with a fire hose connection port for firefighter hose attachment

Compliance
Certifications	UL 9540 Ed.3 (2023), UL 9540A, UL 1973, UN 38.3

1. Flexible Configuration:

1P (1*BCU): Number of connectable BMUs ranges from 1 to 15. Voltage Range: 44.8V x (1 ~ 15) ~ 57.6V x (1 ~ 15).

2P (2*BCU in paralle): Number of connectable BMUs ranges from 1 to 7 for each BCU. Voltage Range: 44.8V x (1 ~ 7) ~ 57.6V x (1 ~ 7).

2. Operating conditions: 77°F (25°C), 0.5C @ 90% DOD, ret @70% (EOL).

3. Warranty: 3 years for the whole battery system, 10 years or 6000 cycles for the battery (whichever comes first).

4. Optional 2 year warranty extension available for purchase.
