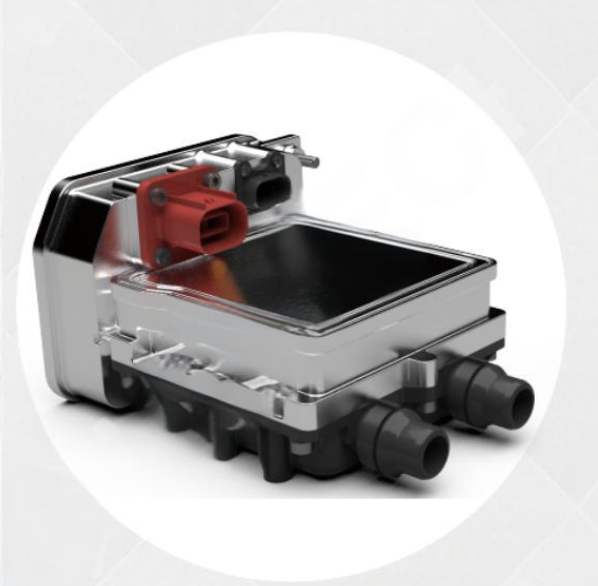

HV WPTC heater
Applications NEV
Applications NEV
Power |
5KW,350VDC,10L/min,60℃ | 7KW,50VDC,10Lmin,60℃ |
Coolant |
50(Water)+50(Glycol) | |
Voltage range |
220~500V(High voltage) 9～16V(Low voltage) |
|
Pressure loss |
≤5KPa(10L/min,60℃) | |
Control mode |
PWM 1 Relay control | |
Communication mode |
CAN/LIN | |
Electrical strengt |
2700VDC No discharge breakdown | |
Insulation resistance |
1000VDC>100MΩ | |
IPLevel |
IP6K9K&IP67 | |
Mass |
≤2.1Kg | ≤3Kg |
