Horizontal high-speed veneer production line

Horizontal High-Speed Laminating Production Line Description:

Hanbang's horizontal high-speed laminating production line is a highly
efficient, precise, and automated special equipment for surface decoration
treatment of panel materials. It adopts a "horizontal" feeding method and is
specifically designed to quickly and smoothly laminate various decorative
materials (such as PVC film, PP film, decorative paper, thin veneer, fireproof
board, etc.) onto the surface of base materials (such as medium-density
fiberboard, particleboard, multi-layer board, etc.).

Core Technical Features:

1. High Speed and Efficiency: Adopts a continuous or rapid cycle operation
mode, with adjustable feeding speed, reaching up to 60 meters/minute or more,
far exceeding traditional manual production lines.

2. Excellent Adaptability: By changing molds and adjusting parameters, it can
adapt to base materials of different thicknesses (such as 2mm-40mm) and sizes,
as well as various decorative materials.

3. Superior Surface Quality: High lamination flatness and uniform gloss,
achieving various surface effects such as matte, glossy, and soft-touch.

4. Highly Automated and Intelligent:

PLC central control system, touch screen human-machine interface, one-key
parameter setting and storage.

Automated continuous production, significantly reducing manual intervention
and labor intensity.

Optional intelligent modules such as data traceability (MES system
interface).

Parameter Description

● Main Machine (Customizable Size)

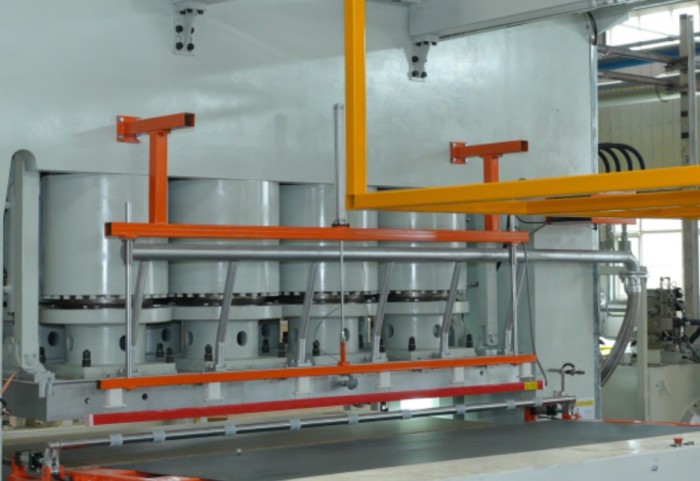

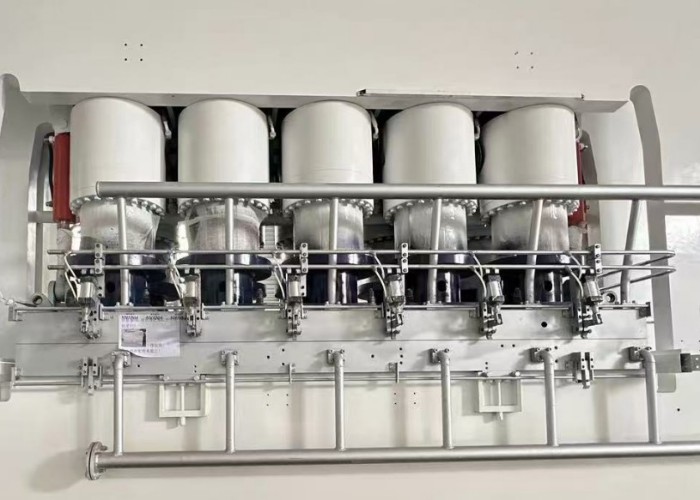

Single-Platen Hot Press

Double-Platen Hot Press

● Automatic Line

Servo Infeed Conveyor

Servo Outfeed Conveyor

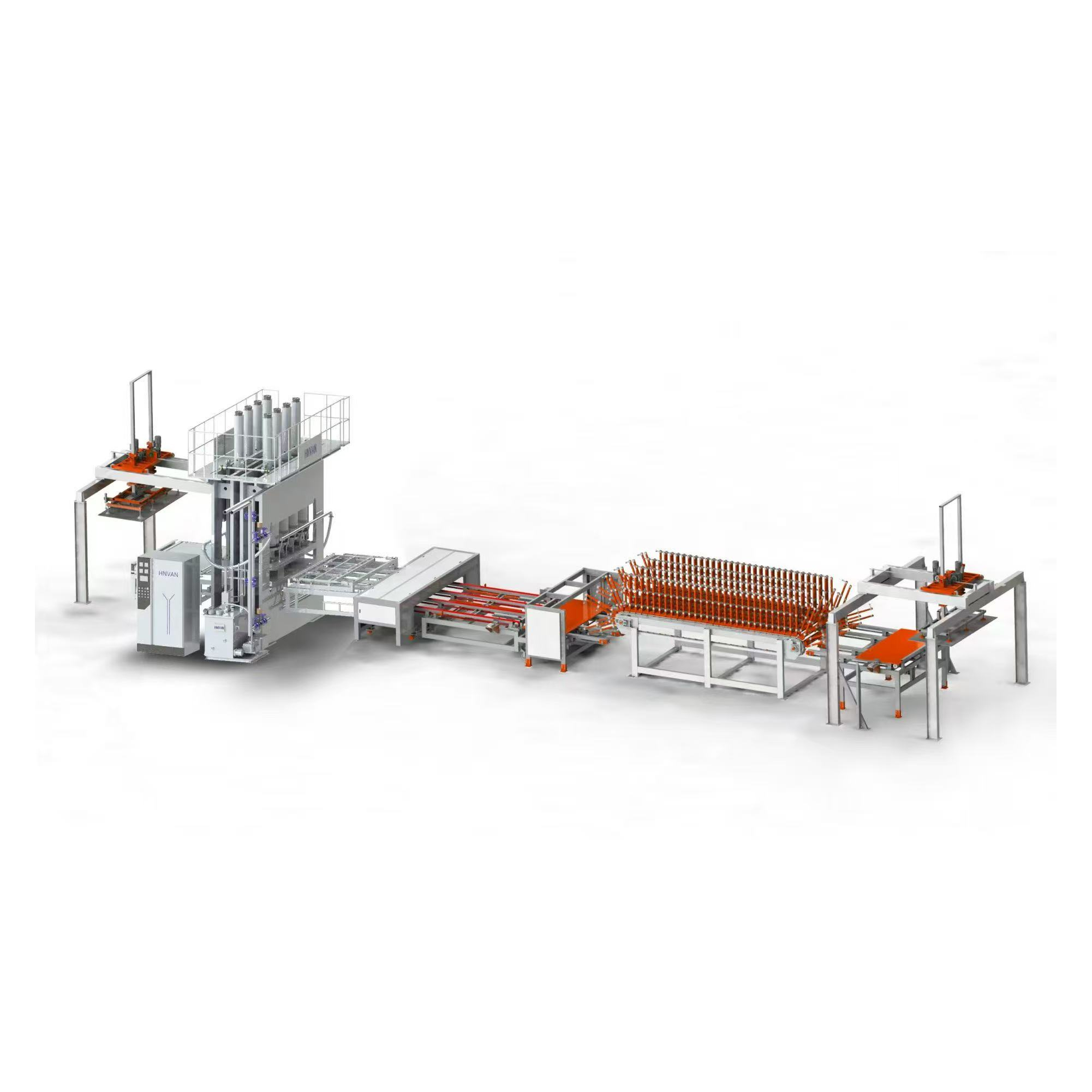

Simple Automatic Line

• Loading and Transfer Machine

• Edge Trimming Machine

• Finished Product Conveyor Table

• Unloading and Transfer Machine

32-Panel Drying Line

● Optional Accessories

Electrostatic Adsorption Device

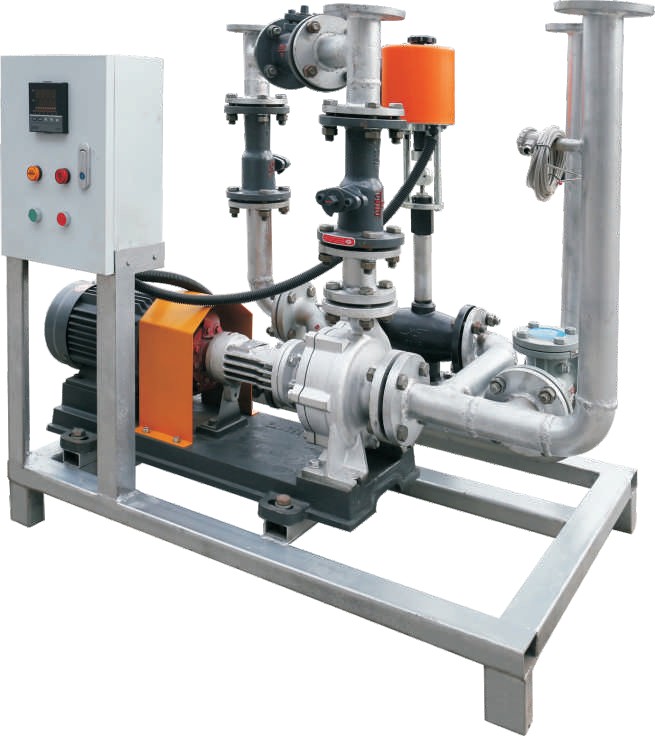

Secondary Circulation Device

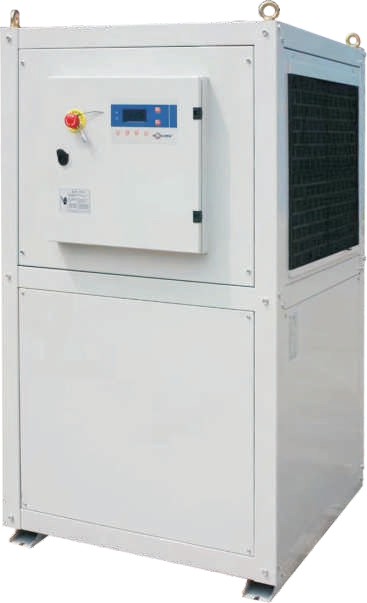

Forced Cooling Device

Cylinder Tensioning Device

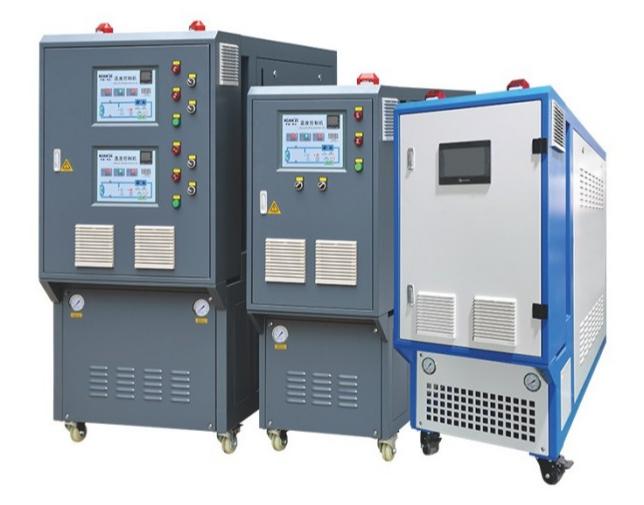

Mold Temperature Controller
